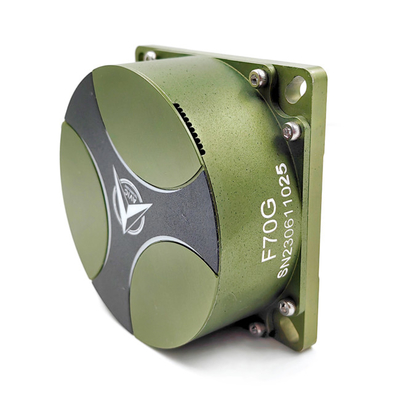

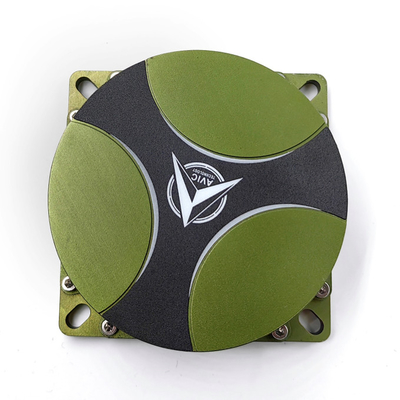

No Warm-Up Time Fiber Optic Gyroscope with Wide Dynamic Range Output Mode RS-422

No Warm-Up Time Fiber Optic Gyroscope with Wide Dynamic Range Output Mode RS-422

No Warm-Up Time Fiber Optic Gyroscope with Wide Dynamic Range Output Mode RS-422

Brand Name:	Firepower
Model Number:	FOG-70-MP
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Zero Bias Stability:

≤1°/h

Zero Bias Repeatability:

≤1°/h

Random Walk Coefficient:

≤0.02°/√h

Measuring Range:

-350~+350°/s

Dimensions:

60 Mm × 60 Mm × 17 Mm

Weight:

80g

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Wide Dynamic Range Fiber Optic Gyroscope

,

200g Fiber Optic Gyroscope

,

RS-422 Fiber Optic Gyroscope

Product Description

No Warm-Up Time Fiber Optic Gyroscope with Wide Dynamic Range Output Mode RS-422

Precision Motion Sensing Solution

Designed for precision motion sensing, the MFOG-103 combines micro-nano optical technology with advanced electronic feedback control.

Key Features

Bias stability ≤1°/h for accurate angular rate measurement
Bandwidth ≥1000Hz for high-frequency response
Power consumption ≤1W for energy efficiency
Compact 60 × 60 × 17mm form factor
Lightweight design at ≤80g
Fully equivalent to Fizoptika VG103
Ideal for UAV attitude control, land navigation systems, and autonomous robotics

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Technical Specifications

Dimensions: 60 mm × 60 mm × 17 mm (including flange, excluding plug)

Weight: ≤80g

Operating Temperature: -40℃ to +70℃

Storage Temperature: -55℃ to +85℃

Random Vibration: 20g, frequency range: 20Hz to 2000Hz

Performance Parameters

Parameter	Specification
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years)	≥15
MTBF	≥100000

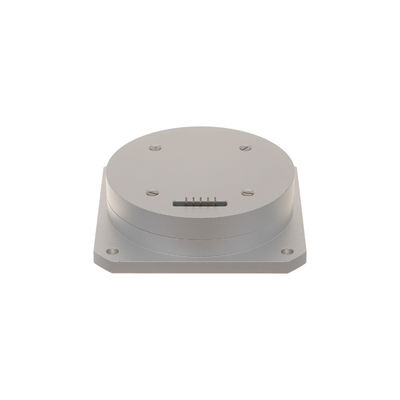

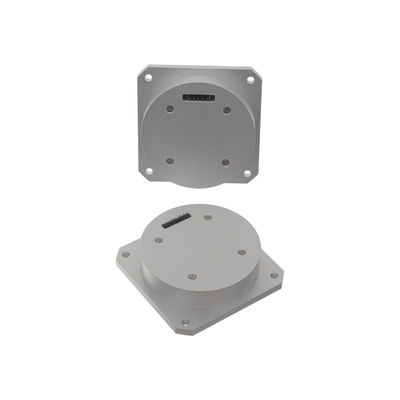

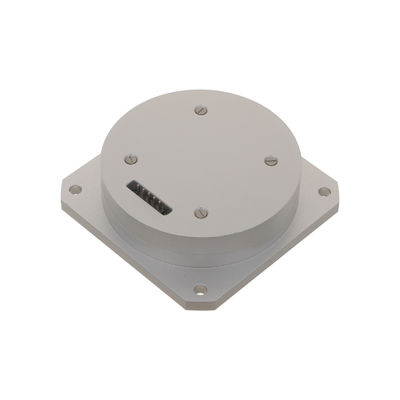

Mechanical and Electrical Interfaces

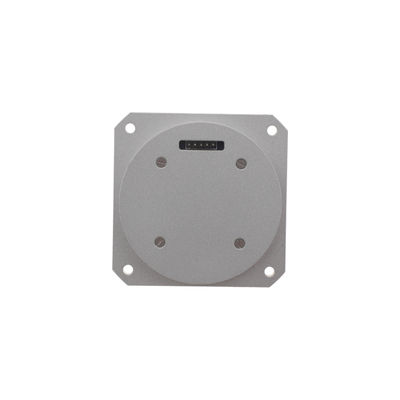

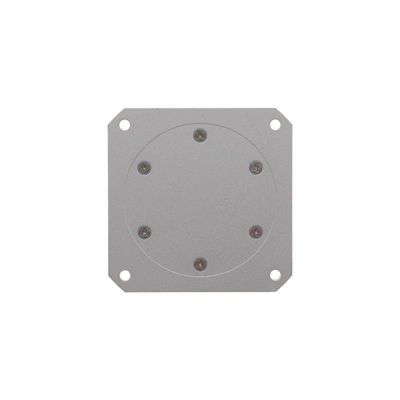

The bottom surface of the product is the installation surface.

No Warm-Up Time Fiber Optic Gyroscope with Wide Dynamic Range Output Mode RS-422 0
