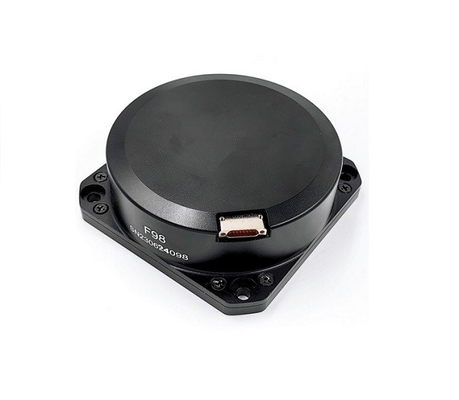

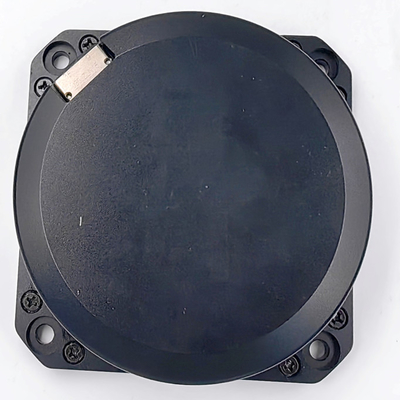

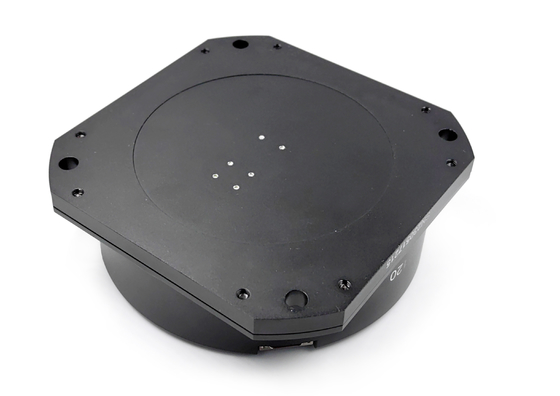

Fast Start Up Fiber Optic Gyroscope 3s Start Time RS-422 Digital Outputs for Accurate Measurement

Name: Fast Start Up Fiber Optic Gyroscope 3s Start Time RS-422 Digital Outputs for Accurate Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Zero Bias:

≤2º/h

Bias Repeatability:

≤2º/h

Random Walk Coefficient:

≤0.02°/√h

Bandwidth:

1000 Hz

Weight:

80g

Output Voltage:

Storage Temperature:

-55~+85°C

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

3s Start Time Fiber Optic Gyroscope

Accurate Results Fiber Optic Gyroscope

Product Description

MFOG-095 Micro-Nano Fiber Optic Gyroscope

The MFOG-095 micro-nano fiber optic gyroscope is a high-precision FOG sensor designed for modern inertial navigation systems. Utilizing advanced micro-nano fiber technology and the Sagnac effect, it delivers stable and low-noise angular rate measurements.

This lightweight sensor (≤70g, 60*35*25.5 mm) offers fast startup (<1s), low power consumption (≤0.7W), and excellent bias stability (≤2°/h), making it ideal for compact UAV gyroscopes, robotic stabilization, and autonomous navigation platforms.

Fully compatible with Fizoptika VG095, it can be easily integrated as a drop-in replacement, ensuring seamless adoption in aerial mapping, surveying drones, and precision motion control systems.

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Dimensions

60mm * 35mm * 25.5mm (without plug)

Weight

≤70g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7

Mechanical and Electrical Interfaces

The bottom surface of the product is the installation surface. The four M3 threads on the bottom surface are connected to the outside.
