Fiber Optic Gyro

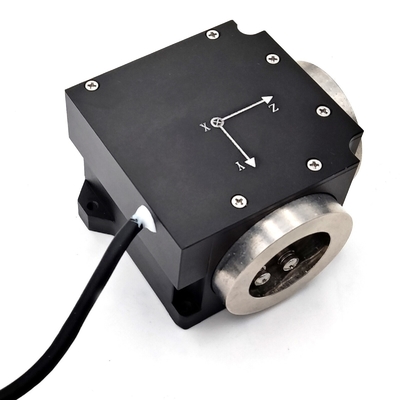

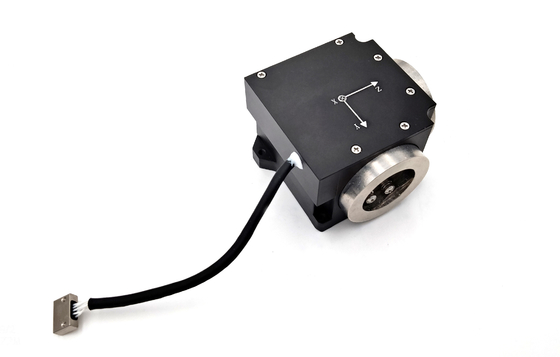

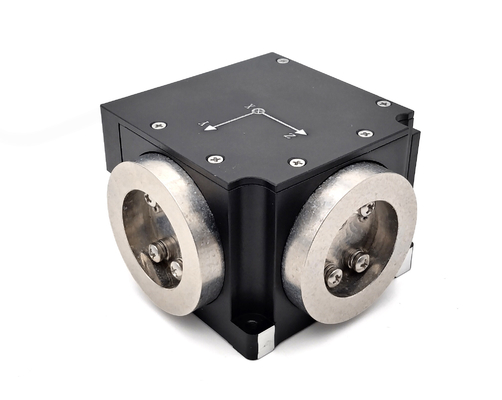

Long Life 3-Axis FOG Without Moving Parts Zero Bias Stability ≤0.1°/h 10s Smoothing

Name: Long Life 3-Axis FOG Without Moving Parts Zero Bias Stability ≤0.1°/h 10s Smoothing
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-40
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	3OG-40
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

-500~+500°/s

Zero Bias Stability:

≤0.1°/h (10s Smoothing)

Random Walk Coefficient:

≤0.01°/√h

Bandwidth:

≥200Hz

Resolution:

≤0.05°/h

Zero Bias Repeatability:

≤0.1°/h

Zero Position:

≤1°/h

Start Time:

Scale Factor Asymmetry:

≤10ppm

Scale Factor Repeatability:

≤20ppm

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Zero bias stability 3-Axis FOG

10s smoothing 3-Axis FOG

Long Life 3-Axis FOG

Product Description

1. Product Overview
The 3-axis integrated Fiber Optic Gyroscope (FOG, Fiber Optic Gyroscope) is a high precision angular velocity sensor based on the principle of optical interference. It detects angular velocity by measuring the Sagnac effect generated when light propagates along the fiber optic ring and outputs precise attitude information. Compared to traditional mechanical gyroscopes, the FOG has the advantages of being frictionless, long-life, high-precision and shock-resistant, making it a core component in modern inertial navigation and attitude measurement systems.
The integrated three-axis design means that the gyroscope can measure the angular velocity in X, Y, and Z directions simultaneously, simplifying system integration and improving attitude measurement accuracy, which is widely used in aerospace, navigation, robotics, precision measurement, and other fields.

2. Parameters

Serial number	Test item	Unit	Technical requirements
1	Overall dimensions	mm	71.5×71.5×45
2	Start-up time	s	3
3	Zero position	(°)/h	≤1
4	Zero bias stability at room temperature (constant temperature)	(°)/h	≤ 0.1 (10 s smoothing) ≤ 0.05 (100s smoothing)
5	Zero bias stability with temperature change (1 ℃/min variable temperature, 100 s smooth)	(°)/h	≤0.5
6	Zero-bias repeatability	(°)/h	≤0.1
7	Zero bias sensitivity	(°)/h/Gs	≤0.05
8	Random walk coefficient	(º)/h1/2	≤0.01
9	Scale factor nonlinearity	ppm	≤20
10	Scale factor asymmetry	ppm	≤10
11	Scale factor repeatability	ppm	≤20
12	Threshold	(°)/h	≤0.05
13	Resolution	(°)/h	≤0.05
14	Bandwidth	Hz	≥200
15	Operating temperature	℃	-45～+70
16	Storage temperature	℃	-55～+80
17	Dynamic range	(°)/s	±500
18	Supply voltage	V	+5
19	Steady-state power consumption	W	≤4
20	Full temperature steady state power consumption	W	≤8
21	Start the instantaneous current	A	＜2

3. Production environments

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 2

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 4

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 6
