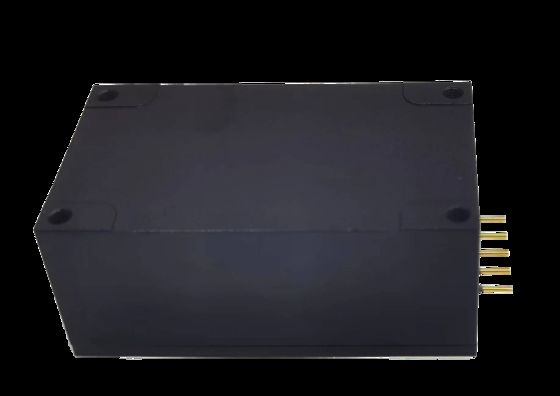

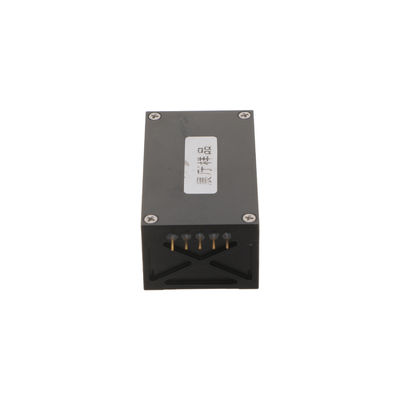

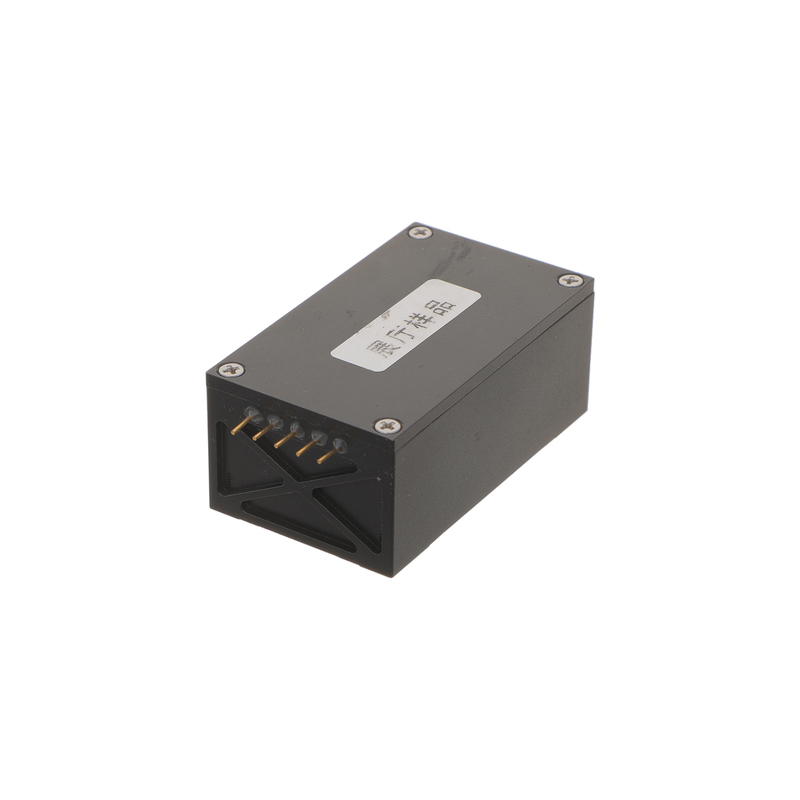

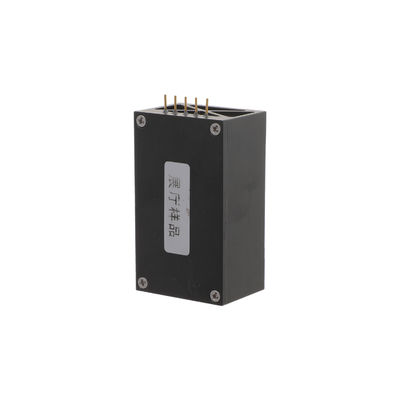

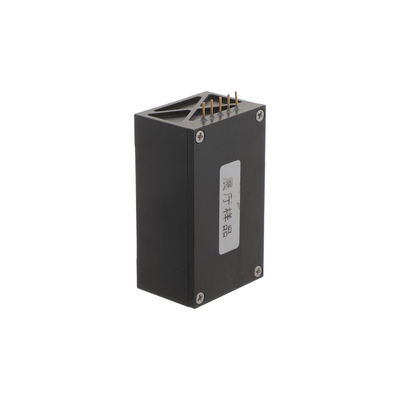

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

±150°/s

Zero Bias Stability:

≤2°/h (10s Smoothing)

Random Walk Coefficient:

≤0.02°/√h

Zero Bias Repeatability:

≤2°/h

Weight:

≤70g.

Dimension:

60mm × 35mm × 25.5mm

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Anti-vibration FOG sensor

High Precision Navigation FOG sensor

Three-axis Integrated FOG sensor

Product Description

1. Product application areas
Aerospace: for attitude control, navigation and stabilization systems of aircraft.
Unmanned systems: navigation and attitude control for unmanned aircraft, unmanned vehicles and unmanned ships.
Navigation and submarine: inertial navigation system for ships and submarines.
Land Vehicles: Inertial Measurement Units (IMUs) for self-driving cars, AGVs (Automated Guided Vehicles).
Robotics: Attitude control and motion detection for industrial and service robots.
Precision instruments: for high-precision measurement equipment, such as LIDAR, optical stabilization platforms, etc.

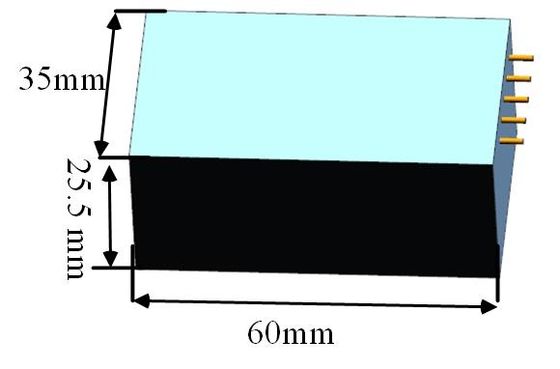

2. Overall dimensions

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 0

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 1

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 2

3. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	min	Power-on bias stability index
2	Zero bias stability	(°)/h	≤ 0.05 (10s smoothing) ≤ 0.015 (100s smoothing)
3	Zero bias stability at full temperature (1 ℃/min variable temperature, 100 s average)	(°)/h	≤0.08
4	Zero-bias repeatability	(°)/h	≤0.015
5	Random walk coefficient	⁽º⁾/h^1/2	≤0.003
6	Scale factor nonlinearity	ppm	≤20
7	Scale factor asymmetry	ppm	≤5
8	Scale factor repeatability	ppm	≤10
9	Scale factor repeatability (full temperature)	ppm	≤50
10	Operating temperature	℃	-40~+60
11	Storage temperature	℃	-50~+70
12	Dynamic range	(°)/s	±500
13	Supply voltage	V	+5V
14	Steady state power consumption (full temperature)	W	＜4

4. Production environments

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 3

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 5

Anti-vibration Three-axis Integrated FOG Sensor For High Precision Navigation 7
