Home Products

Fiber Optic Gyro

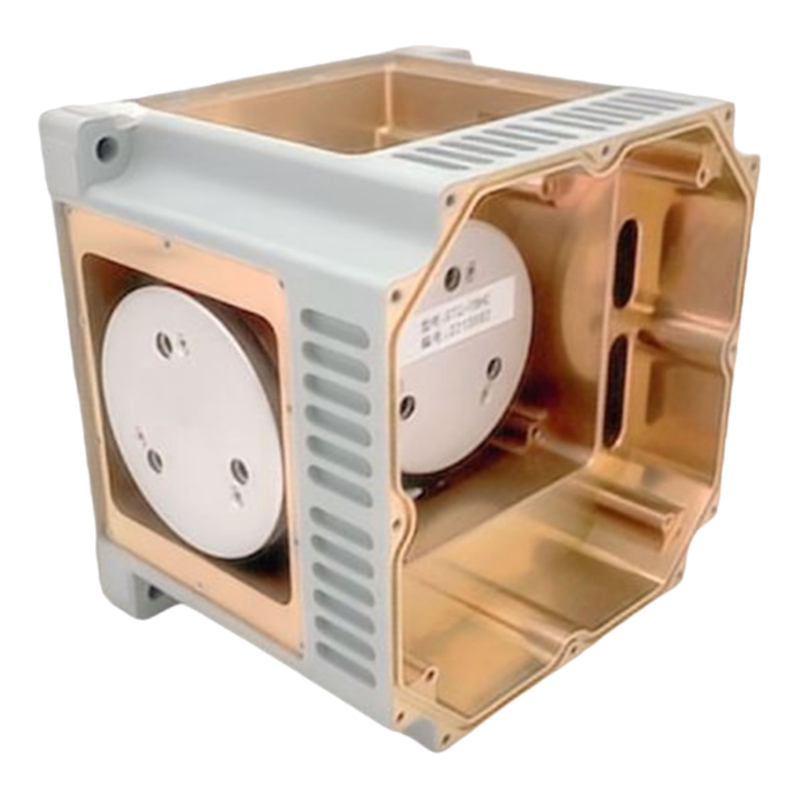

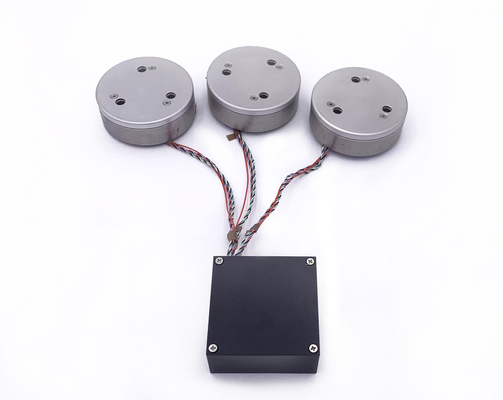

High Precision Three-axis Integrated FOG Sensor With Quick Response

Name: High Precision Three-axis Integrated FOG Sensor With Quick Response
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-70HC
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	3OG-70HC
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

±500°/s

Zero Bias Stability:

≤0.03°/h (10s Smoothing)

Random Walk Coefficient:

≤0.003°/√h

Zero Bias Repeatability:

≤0.01°/h

Supply Current:

>1A

Power Supply Accuracy:

±5%

Dimensions:

60*60*28(mm*mm*mm)

Weight:

≤950g

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Three-axis Integrated FOG Sensor

Quick Response FOG Sensor

High Precision FOG Sensor

Product Description

1. Main Product Features
A. High precision: Compared with MEMS gyroscope, FOG has lower offset drift and higher angular velocity resolution, which is suitable for high-precision navigation system.
B. Three-axis integration: no need to combine multiple gyros, reducing volume and weight, improving system integration and reliability.
C. No mechanical moving parts: Compared to mechanical gyroscopes, FOG is frictionless and wear-free, resulting in longer life and higher reliability.
D. Resistant to vibration and shock: Suitable for highly dynamic environments such as drones, missiles, and flying machines.
Ready-to-use, no warm-up required: Compared to laser gyroscopes (RLG), FOG has a short start-up time and fast response.
E. Low-power design: Optimized energy consumption for battery-powered systems such as UAVs and portable navigation devices.

2. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	min	Power-on bias stability index
2	Zero bias stability at room temperature (constant temperature)	(°)/h	≤ 0.03 (10 s smoothing) ≤ 0.01 (100s smoothing)
3	Zero bias stability at full temperature (1 ℃/min variable temperature, 100 s average)	(°)/h	≤0.08
4	Zero-bias repeatability	(°)/h	≤0.01
5	Random walk coefficient	⁽º⁾/h^1/2	≤0.003
6	Scale factor nonlinearity	ppm	≤10
7	Scale factor asymmetry	ppm	≤5
8	Scale factor repeatability	ppm	≤10
9	Scale factor repeatability (full temperature)	ppm	≤50
10	Operating temperature	℃	-40~+60
11	Storage temperature	℃	-50~+70
12	Dynamic range	(°)/s	±500
13	Supply voltage	V	+5V
14	Steady state power consumption (full temperature)	W	＜4

3. Production environments

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 2

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 4

Single-Axis Rotary Test Turntable For Aerospace And Defense Calibration 6
