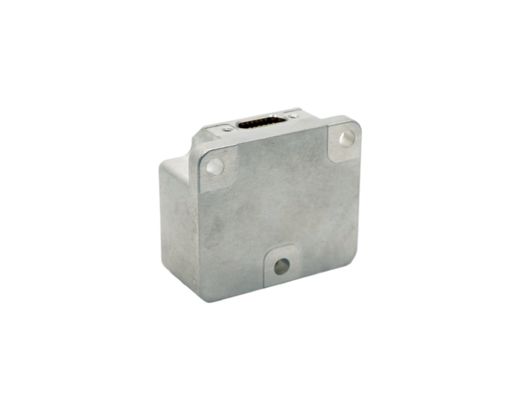

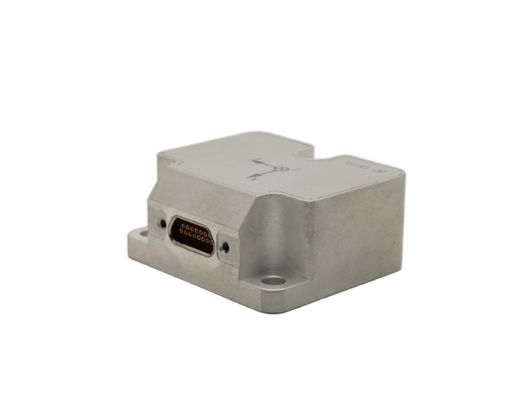

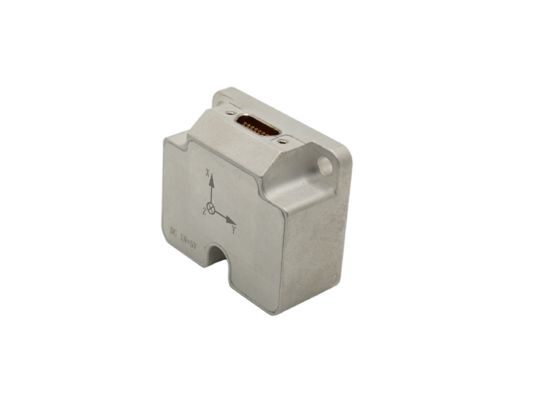

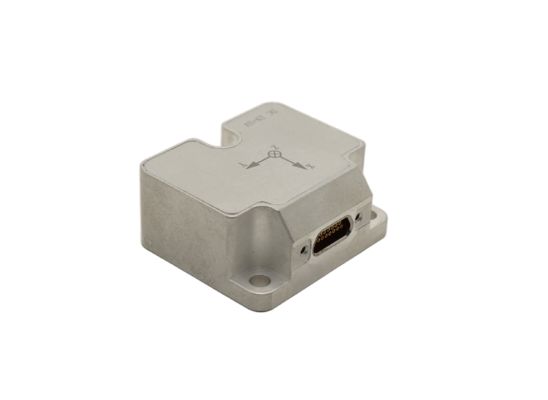

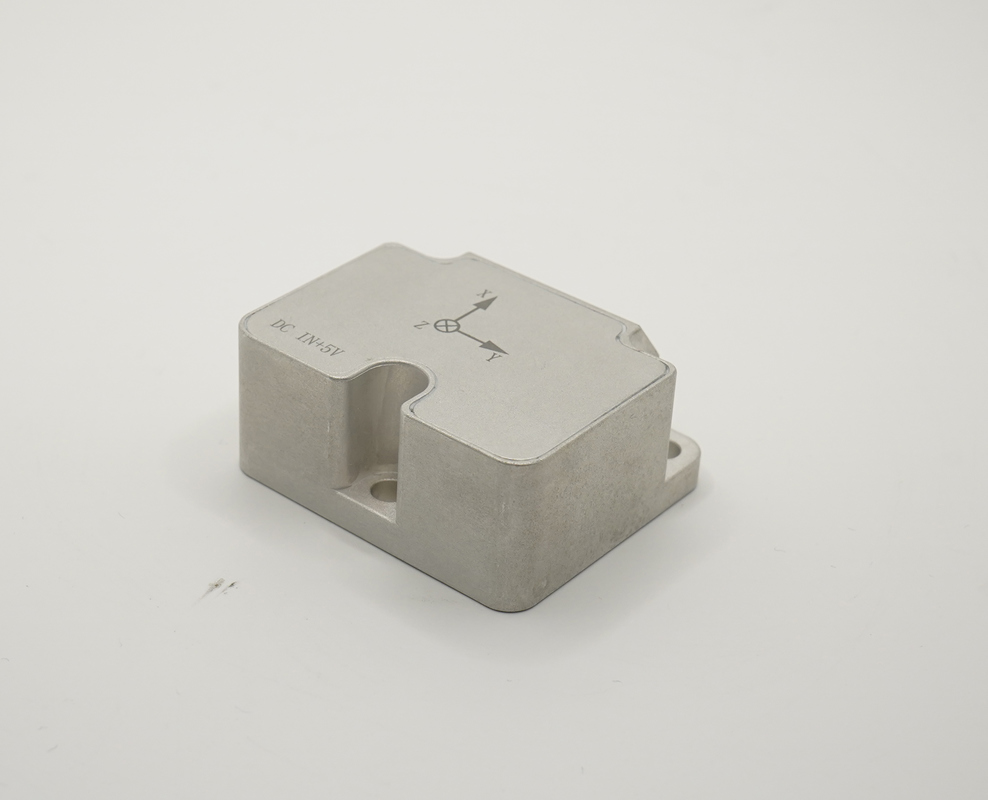

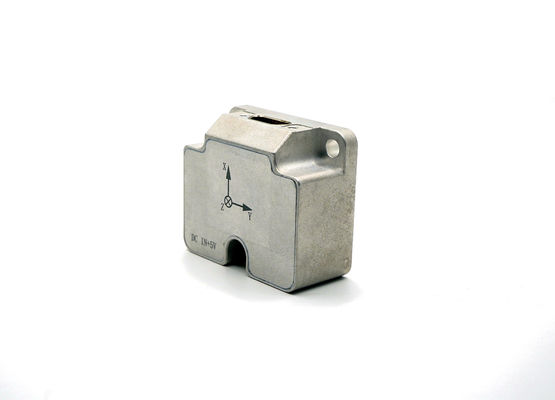

0.3°/h High Precision MEMS Three-Axis Gyroscope for Navigation System

Name: 0.3°/h High Precision MEMS Three-Axis Gyroscope for Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MG3-1A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MG3-1A
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Angular Rate:

±400°/s

Bias Stability:

≤0.3°/h

Random Walk Coefficient:

≤0.15°/√h

Scale Factor Nonlinearity:

≤100 Ppm

Power Consumption:

1.4 W

Baud Rate:

921600 (Customizable)

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

3-Axis Gyro

Quick Response 3-Axis Gyro

Good Stability 3-Axis Gyro

Product Description

MG3-1A MEMS Gyroscope - 0.3°/h High Precision Three-Axis Gyroscope for Navigation System

The MG3-1A MEMS Gyroscope is a high-precision 3-axis angular rate sensor designed for civil UAV navigation, robotic platforms, and autonomous motion control systems. This advanced sensor integrates MEMS gyroscope technology with temperature sensors, signal processing board, structural components, and specialized software to deliver full error-compensated angular rate measurements via RS-422 interface.

Key Performance Features

±400°/s measuring range
Zero-bias instability: 0.3 °/h
Random walk: 0.15 °/√h
Bandwidth: 250 Hz
Compact design weighing only 52g
Fully compatible with Stim210
Ideal for UAVs, precision robotics, mapping instruments, and autonomous vehicles

Technical Specifications

Gyroscope Technical Index

Parameter	Unit	Test Conditions	MG3-1A	MG3-1C	MG3-1E
Measuring range	°/s		±400	±400	±300
Zero-bias instability	°/h	Allan variance	0.3	0.1	0.2
Zero bias stability	°/h	10s smooth, RMS, Room temperature	3	1	1
Zero bias variation at full temperature	°/h	10s smoothing, RMS, temperature change rate 1℃/min	20	10	5
Random walk	°/√h	Allan variance	0.15	0.05	0.03
Output noise	p-p	Peak (Half Peak, RMS * 3)	0.3	0.25	0.2
Zero-bias repeatability	°/h	Q = 6, Room temperature	3	1	0.5
Zero bias acceleration sensitivity		Test at ± 1 g	2	2	2
Resolution	°/h		2	1	1
Bandwidth	Hz		250	250	400
Scale factor nonlinearity	ppm	Room temperature	100
Scale factor repeatability	ppm	Q = 3, Room temperature	100
Cross coupling	%	Room temperature	0.1

Electrical Characteristics

Parameter	Unit	MG3-1A
Voltage	V	+5±0.25
Startup current	mA	＜400
Steady-state power consumption	W	＜1.4
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	MG3-1A
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Other Specifications

Parameter	Unit	MG3-1A
Weight	g	52±5
Start time	s	1

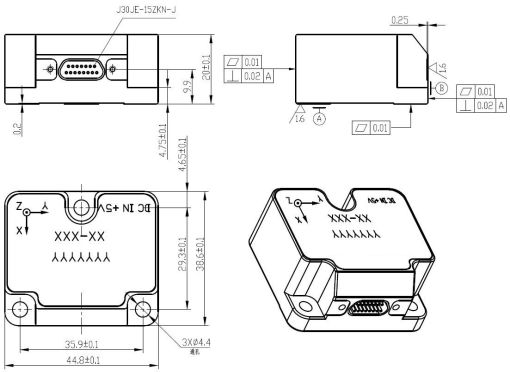

Overall Dimensions
