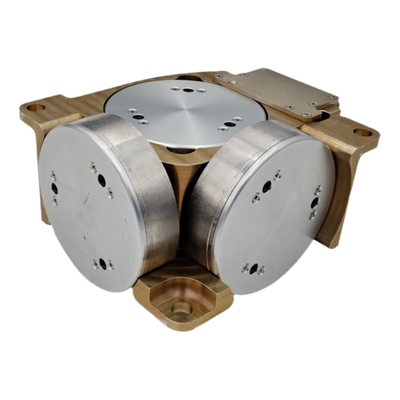

Measuring Range -500- 500°/s Quick Response 3-Axis Gyro With Good Stability Random Walk Coefficient ≤0.0005°/√h

Brand Name:	Firepower
Model Number:	3OG-90H
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

-500~+500°/s

Zero Bias Stability:

≤0.01°/h (10s Smoothing)

Random Walk Coefficient:

≤0.0005°/√h

Bandwidth:

＞200Hz

Resolution:

≤0.003°/h

Zero Bias Repeatability:

≤0.003°/h

Scale Factor Nonlinearity:

≤5ppm

Scale Fcator Repeatability:

≤5ppm

Supply Voltage:

+5V

Power Consumption:

≤4.5W

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

3-Axis Gyro

Quick Response 3-Axis Gyro

Good Stability 3-Axis Gyro

Product Description

1. Product Core Technology
The 3-axis integrated fiber optic gyroscope integrates a number of advanced technologies to ensure high accuracy, low drift and stability:
A. Fiber optic ring technology: high quality fiber optic manufacturing, optimized fiber optic winding process to reduce temperature drift and fiber optic non-uniformity effects.
B. Closed-loop control: Digital Signal Processing (DSP) and closed-loop modulation technology to improve gyro output stability and dynamic range.
C. High-precision signal processing: low-noise photodetector and signal filtering algorithms to improve signal quality and reduce the impact of noise.
D. Temperature Compensation Algorithm: Integrated temperature sensor and temperature compensation algorithm to ensure that it can still maintain high precision measurement in different environments.
E. High Reliability Structure Design: Adopting anti-shock and anti-vibration design to ensure stable operation even in harsh environments.

2. After-sales service and support
Technical support: provide comprehensive technical documents, application guides and development tools to help customers quickly integrate the product.
Customized service: Provide customized solutions according to customer needs, such as specific size, interface, performance parameters, etc.

3. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	s	3
2	Zero bias	(°)/h	≤0.3
3	Zero bias stability at room temperature (constant temperature)	(°)/h	≤ 0.01 (10 s smoothing) ≤ 0.003 (100s smoothing)
4	Zero bias stability with temperature change (1 ℃/min variable temperature, 100 s smooth)	(°)/h	≤0.01
5	Zero-bias repeatability	(°)/h	≤0.003
6	Zero bias sensitivity	(°)/h/Gs	≤0.005
7	Random walk coefficient	(º)/h1/2	≤0.0005
8	Scale factor nonlinearity	ppm	≤5
9	Scale factor asymmetry	ppm	≤2
10	Scale factor repeatability	ppm	≤5
11	Threshold	(°)/h	≤0.003
12	Resolution	(°)/h	≤0.003
13	Bandwidth	Hz	≥200
14	Operating temperature	℃	-45～+70
15	Storage temperature	℃	-55～+85
16	Dynamic range	(°)/s	±300
17	Supply voltage	V	+5
18	Normal temperature steady state power consumption	W	≤4.5
19	Full temperature steady state power consumption	W	≤8
20	Start the instantaneous current	A	<2

4. Production environments

Measuring Range -500- 500°/s Quick Response 3-Axis Gyro With Good Stability Random Walk Coefficient ≤0.0005°/√h 0

Measuring Range -500- 500°/s Quick Response 3-Axis Gyro With Good Stability Random Walk Coefficient ≤0.0005°/√h 2

Measuring Range -500- 500°/s Quick Response 3-Axis Gyro With Good Stability Random Walk Coefficient ≤0.0005°/√h 4
