Navigation Grade MEMS Stim 210 Angular Rate Sensor for Navigation System

Name: Navigation Grade MEMS Stim 210 Angular Rate Sensor for Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MG3-1A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MG3-1A
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Range:

400deg/s

Bias Stability:

0.3°/h

Zero Bias Repatability:

≤3°/h

Angle Random Walk:

0.15°/√h

Scale Factor Nonlinearity:

100ppm

Output Mode:

RS-422

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Wide Measuring Range 3-Axis FOG

Random Walk Coefficient 3-Axis FOG

Highly Accurate 3-Axis FOG

Product Description

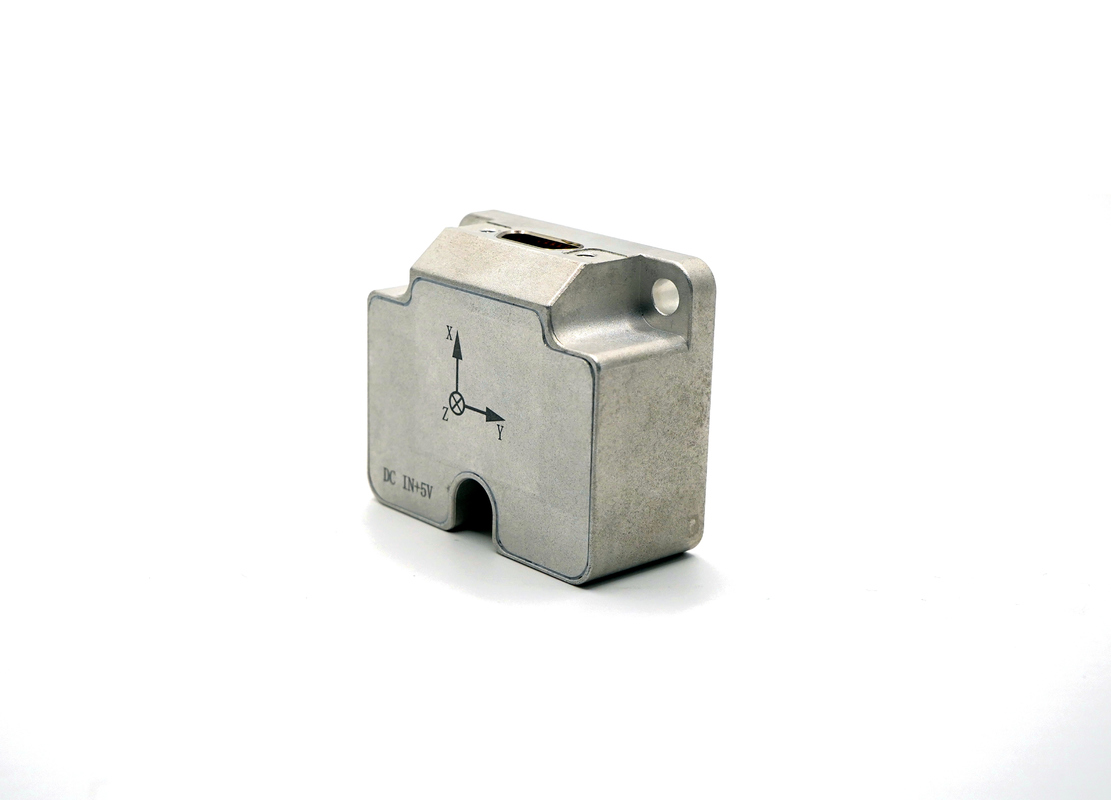

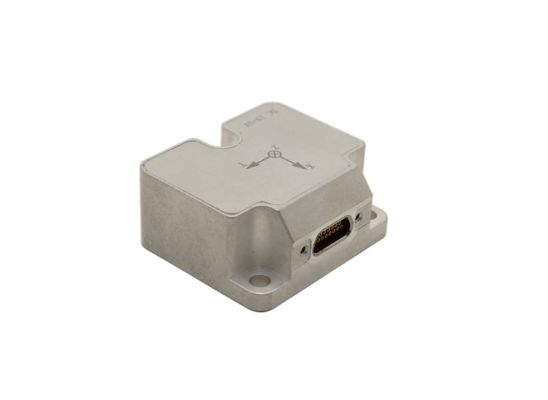

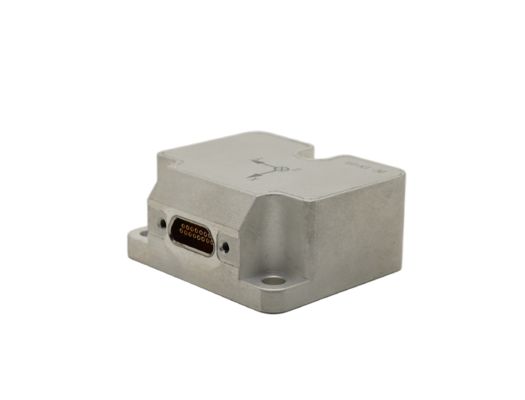

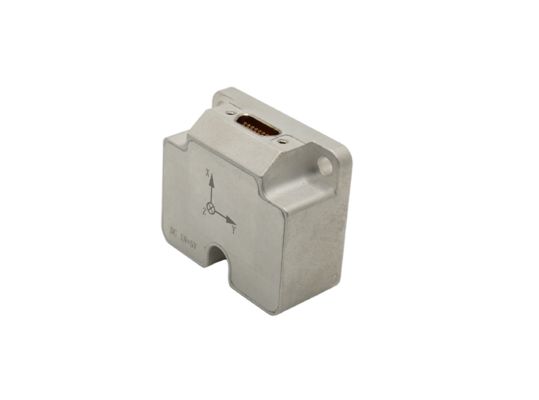

Navigation Grade MEMS Stim 210 Angular Rate Sensor for Navigation System

The MG3-1A MEMS Gyroscope is a fully integrated 3-axis angular rate sensor designed for precision inertial navigation, UAV guidance, and robotic motion control.

This system consists of a 3-axis MEMS gyroscope, temperature sensor, signal processing board, structural components, and dedicated software, delivering temperature-compensated, alignment-corrected, and linearity-corrected angular rate data through RS-422.

With a measuring range of ±400°/s, zero-bias instability of 0.3 °/h, random walk of 0.15 °/√h, and start-up time of 17 s, the MG3-1A is ideal for UAVs, autonomous survey platforms, mobile robotics, and precision navigation instruments.

As a Stim210 compatible replacement, it provides a compact (52 g), reliable, and high-precision solution for civilian and research INS applications.

Main Technical Parameters

1.2.1 Technical Index of Gyroscope

Parameter	Unit	Test Conditions	MG3-1A	MG3-1C	MG3-1E
Measuring range	°/s		±400	±400	±300
Zero-bias instability	°/h	Allan variance	0.3	0.1	0.2
Zero bias stability	°/h	10s smooth, RMS, Room temperature	3	1	1
Zero bias variation at full temperature	°/h	10s smoothing, RMS, temperature change rate 1℃/min	20	10	5
Random walk	°/√h	Allan variance	0.15	0.05	0.03
Output noise	p-p	Peak (Half Peak, RMS * 3)	0.3	0.25	0.2
Zero-bias repeatability	°/h	Q = 6, Room temperature	3	1	0.5
Zero bias acceleration sensitivity		Test at ± 1 g	2	2	2
Resolution	°/h		2	1	1
Bandwidth	Hz		250	250	400
Scale factor nonlinearity	ppm	Room temperature	100
Scale factor repeatability	ppm	Q = 3, Room temperature	100
Cross coupling	%	Room temperature	0.1

1.2.2 Electrical Characteristics

Parameter	Unit	MG3-1A
Voltage	V	+5±0.25
Startup current	mA	＜400
Steady-state power consumption	W	＜1.4
Ripple	mV	100

1.2.3 Environmental Adaptability

Parameter	Unit	MG3-1A
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

1.2.4 Other Specifications

Parameter	Unit	MG3-1A
Weight	g	52±5
Start time	s	1

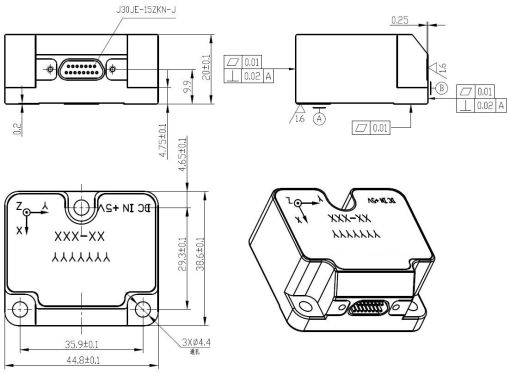

Overall Dimensions
