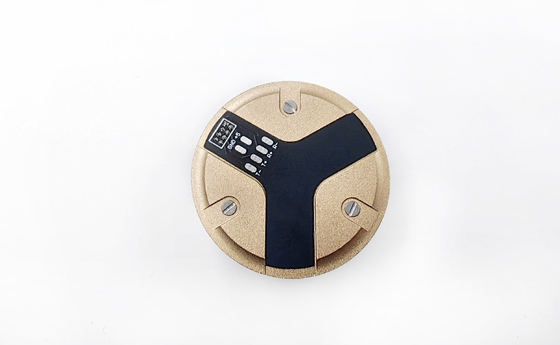

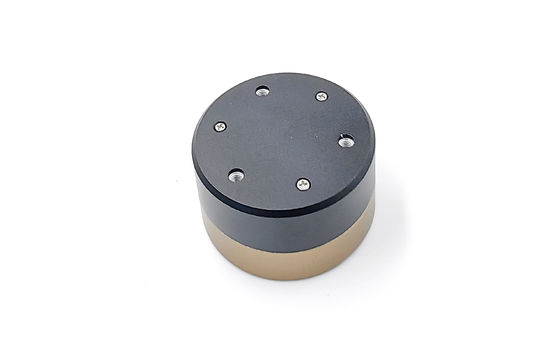

3600 LSB/°/s Scale Factor Fiber Optic Gyroscope Operating on the Sagnac Effect for Multiple Applications

3600 LSB/°/s Scale Factor Fiber Optic Gyroscope Operating on the Sagnac Effect for Multiple Applications

3600 LSB/°/s Scale Factor Fiber Optic Gyroscope Operating on the Sagnac Effect for Multiple Applications

Brand Name: Firepower
Model Number: MFOG1703
MOQ: 1
Payment Terms: T/T
Supply Ability: 1000/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Application:
Attitude Control And Measurement Of The Carrier
3dB Bandwidth:
≥300Hz
Dimension:
φ40X20mm
Power Supply:
5+0.15V
Scale Factor:
3600 LSB/°/s
Angular Random Walk:
≤0.02 °/h
Zero-bias Stability (10s, 1σ):
≤1°/h
Packaging Details:
carton with sponge
Supply Ability:
1000/month
Highlight:

3600 LSB/°/s Fiber Optic Gyroscope

,

Multiple Applications Fiber Optic Gyroscope

,

Sagnac Effect Fiber Optic Gyroscope

Product Description
3600 LSB/°/s Scale Factor Fiber Optic Gyroscope

Operating on the Sagnac effect for multiple applications, this accelerometer gyro sensor delivers precise angular velocity measurements with exceptional stability.

Key Features
  • Based on the Sagnac effect principle
  • Integrates micro-nano fiber devices for precise phase difference detection
  • Simple structure with no moving or wear parts
  • Fast start-up capability
  • Compact and lightweight design
Technical Specifications
Parameter Value
Application Attitude control and measurement of the carrier
Zero-bias Stability (10s, 1σ) ≤1°/h
Scale Factor 3600 LSB/°/s
Measurement Range ±300°/s
3dB Bandwidth ≥300Hz
Power Supply 5+0.15V
Zero-bias Repeatability (1σ) ≤1°/h
Dimensions φ40×20mm
Construction

Composed of optical path assembly, detection and control signal circuit board, optical fiber ring skeleton, shell, and other structural components.
