products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

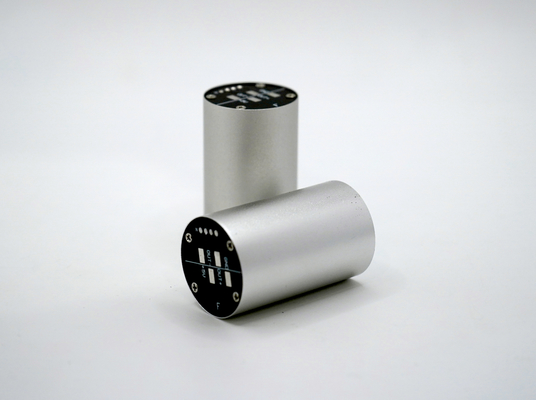

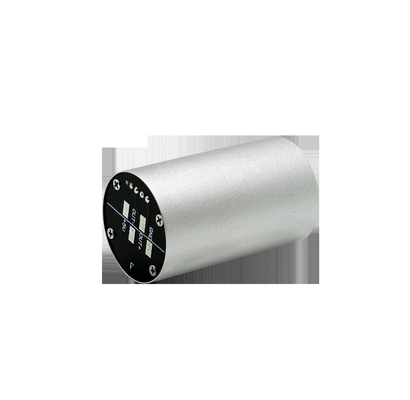

2025 Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System

2025 Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System

2025 Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System

Brand Name: Firepower
Model Number: MFOG-24
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Measuring Range:
±500°/s
Zero-bias Stability( (10s, 1σ):
≤1.5°/h
Angular Random Walk:
≤0.03°/h
Bandwidth:
≥300Hz
Zero-bias Repeatability( (1σ):
≤1.5°/h
Scale Factor Nonlinearity:
≤300ppm
Dimension:
φ24X39mm
Power Supply:
5V
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description
2025 Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System
Key Specifications
Measuring Range ±500°/s
Zero-bias stability (10s, 1σ) ≤1.5°/h
Angular random walk ≤0.03°/h
Bandwidth ≥300Hz
Zero-bias repeatability (1σ) ≤1.5°/h
Scale factor nonlinearity ≤300ppm
Dimension φ24X39mm
Power supply 5V
Product Overview

The MFOG-24 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes interference between counter-propagating light beams within a fiber loop to detect angular velocity with exceptional accuracy.

Key Features
  • Compact design with integrated micro-nano fiber devices for high sensitivity
  • No moving parts ensures quick start-up, low maintenance, and excellent durability
  • Optimized internal structure for superior performance and reliability
  • Lightweight and robust construction ideal for demanding applications
  • Ideal for unmanned systems, navigation platforms, and aerospace vehicles
Technical Specifications
Parameter MFOG-24 MFOG-24-AN
Range (°/s) ±500 ±300
Scale factor nonlinearity (ppm) 300 ≤1000
Zero-bias stability (10s, 1σ, °/h) ≤1.5 ≤2
Angular random walk (°/h 1/2) ≤0.03 ≤0.04
3dB Band Width (Hz) ≥300 ≥450
Power Consumption (W) ≤1.5 ≤0.7
Product Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton and structural components
Product Diagram
2025 Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System 0
