Fiber Optic Gyro
Created with Pixso.

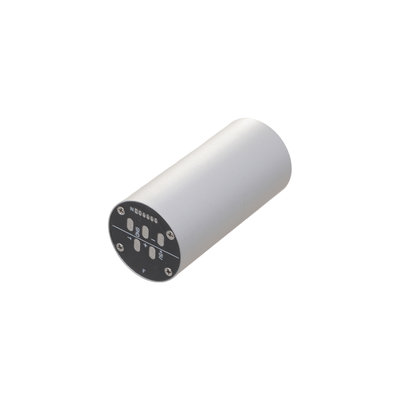

Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System

Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System

Brand Name: Firepower
Model Number: MFOG-24
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Place of Origin:
China
Measuring Range:
±500°/s
Zero-bias Stability( (10s, 1σ):
≤1.5°/h
Angular Random Walk:
≤0.03°/h
Bandwidth:
≥300Hz
Zero-bias Repeatability( (1σ):
≤1.5°/h
Scale Factor Nonlinearity:
≤300ppm
Dimension:
φ24X39mm
Power Supply:
5V
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description
Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System
Key Specifications
Attribute Value
Measuring Range ±500°/s
Zero-bias stability (10s, 1σ) ≤1.5°/h
Angular random walk ≤0.03°/h
Bandwidth ≥300Hz
Zero-bias repeatability (1σ) ≤1.5°/h
Scale factor nonlinearity ≤300ppm
Dimension φ24×39mm
Power supply 5V
Product Overview

The MFOG-24 micro-nano fiber optic gyroscope is a high-precision angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes interference between two beams of light propagating in opposite directions within a fiber loop to detect angular velocity.

Key Features
  • Compact design with integrated micro-nano fiber devices for high sensitivity
  • No moving or wearing parts for quick start-up and low maintenance
  • Optimized internal structure for excellent durability and reliability
  • Small size (φ24×39mm) and lightweight construction
  • Ideal for precise attitude control and motion sensing applications
Technical Specifications
Parameter MFOG-24 MFOG-24-AN
Range (°/s) ±500 ±300
Scale factor nonlinearity (ppm) 300 ≤1000
Zero-bias stability (10s, 1σ, °/h) ≤1.5 ≤2
Angular random walk (°/h 1/2) ≤0.03 ≤0.04
3dB Band Width (Hz) ≥300 ≥450
Power Consumption (W) ≤1.5 ≤0.7
Product Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton and structural parts

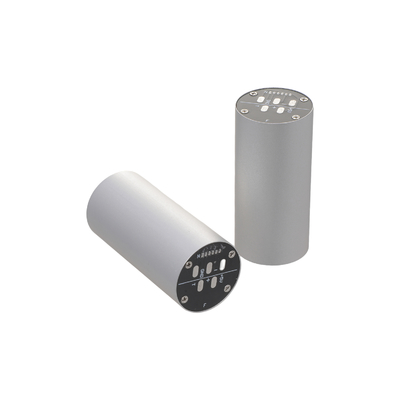

Product Diagram
Single Axis Fiber Optic Gyroscope Inertial Sensor for Inertial Navigation System 0
