Single Axis Fiber Optic Gyroscope ±300°/s Range 5V Power

Name: Single Axis Fiber Optic Gyroscope ±300°/s Range 5V Power
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091D
Price: 900 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MFOG-091D
MOQ:	1
Price:	900$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±300°/s

Zero-bias Stability (10s, 1σ, °/h):

3°/h

Angular Random Walk (°/H1/2):

≤0.02°/h

Zero-Bias Repeatability:

≤2°/h

Scale Factor Stability (RMS,%):

≤0.1%

Power Supply (V):

5+0.15V

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

single axis fiber optic gyroscope

fiber optic gyro 300°/s range

5V power fiber optic gyroscope

Product Description

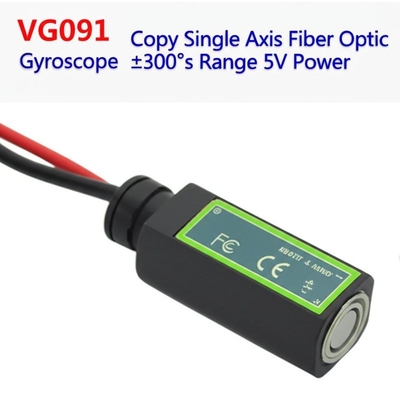

VG091 Copy Single Axis Fiber Optic Gyroscope ±300°/s Range 5V Power

Key Specifications

Attribute	Value
Measuring Range	±300°/s
Zero-bias stability (10s, 1σ, °/h)	3°/h
Angular random walk (°/H1/2)	≤0.02°/h
Zero-Bias Repeatability	≤2°/h
Scale factor stability (RMS,%)	≤0.1%
Power supply (V)	5+0.15V

Product Overview

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect, it precisely measures phase differences between counter-propagating light beams to deliver accurate rate sensing.

Key Features

Compact design with no moving parts for enhanced reliability
Rapid startup time (≤2 seconds)
Lightweight construction (≤30g total weight)
Low power consumption (≤1.5W)
High MTBF (50,000 hours @ 20℃)

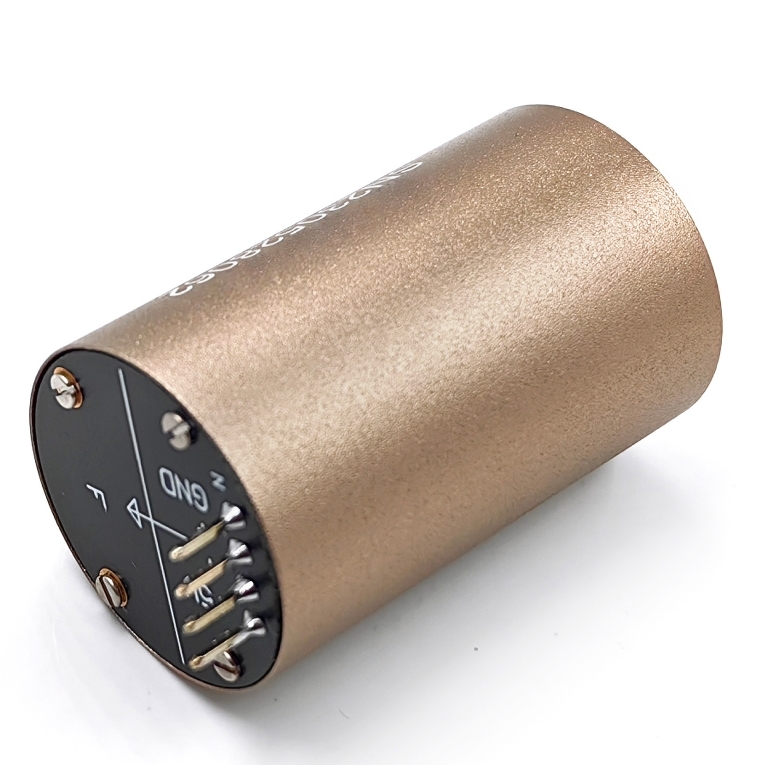

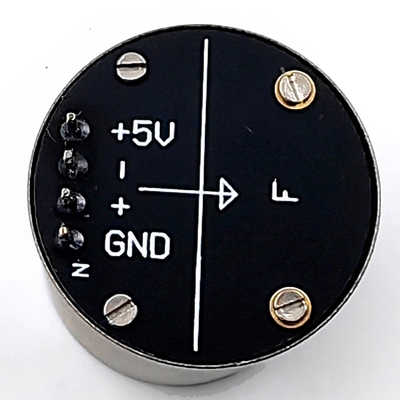

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber coil skeleton and structural housing

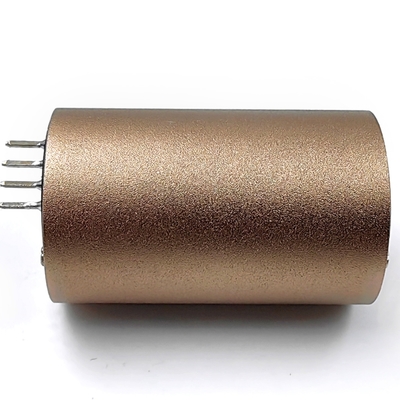

Physical Specifications

Dimensions: φ24mm × 51.6mm

Weight: ≤30g

Technical Parameters

Parameter	Specification
Range (°/s)	±300
Scale factor (LSB/o/s)	3600
Scale factor stability (RMS,%)	≤0.1
Zero-bias stability (10s, 1σ, °/H)	≤3
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H1/2)	≤0.02
Start-up Time (s)	≤2
Power supply (V)	5+0.15
Power Consumption (W)	≤1.5
MTBF (Calculated Assessment)	50000h @ 20℃

Outline Drawing
