Fizoptika VG910 Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability

Name: Fizoptika VG910 Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1000$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±240°/s

Zero-bias Stability( (10s, 1σ):

≤0.8°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥1000Hz

Zero-bias Repeatability( (1σ):

≤0.8°/h

Scale Factor Nonlinearity:

≤1000ppm

Weight:

≤150g

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

Fiber Optic Gyroscope ±240°/s range

Fiber Optic Gyro ≤0.8°/h stability

VG910 Fiber Optic Gyroscope with warranty

Product Description

Fizoptika VG910 Copy Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability

Key Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic systems into a compact and robust unit. It operates based on the Sagnac effect, utilizing two beams of light traveling in opposite directions through a micro-nano optical fiber coil to detect angular velocity.

This temperature-compensated fiber optic gyroscope features an all-solid-state design with no moving or wearing parts, ensuring excellent reliability, fast startup, long operational life (≥15 years), and exceptional resistance to shock (≥1500g) and vibration (≥70g). Its compact size, lightweight construction (≤150g), and low power consumption (≤1.5W) make it ideal for integration into dynamic platforms requiring precise attitude control and inertial measurement.

Detailed Performance Parameters

Parameter	Specification
Range (°/s)	±240
Scale factor (mV/°/s)	47±5
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤0.8
Zero-bias repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25+12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF (Calculated Assessment)	≥100000

Product Diagrams

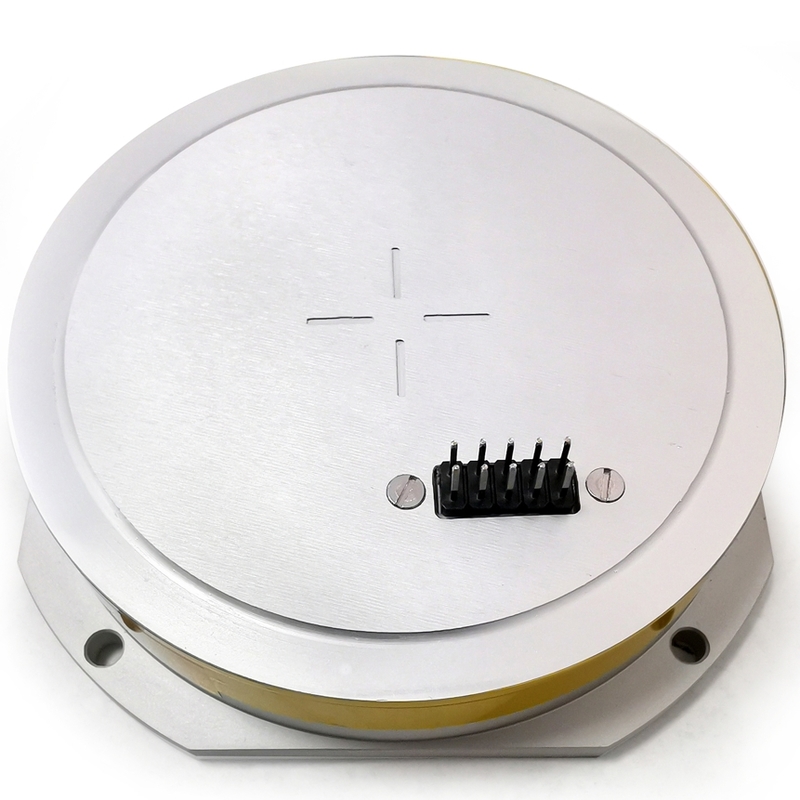

Front View Diagram

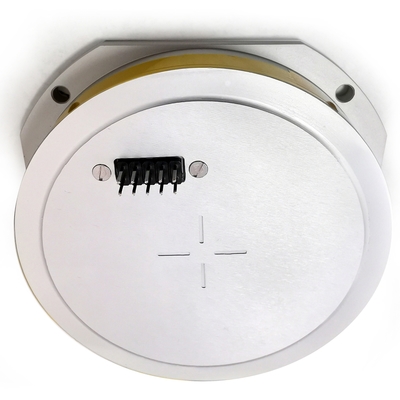

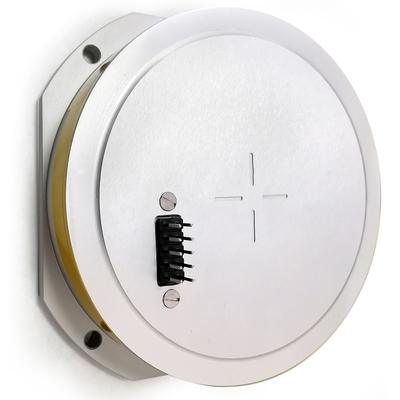

Side View Diagram
