Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability

Name: Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091D
Price: 800 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MFOG-091D
MOQ:	1
Price:	800$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±300°/s

Zero-bias Stability (10s, 1σ, °/h):

3°/h

Angular Random Walk (°/H1/2):

≤0.02°/h

Zero-Bias Repeatability:

≤2°/h

Scale Factor Stability (RMS,%):

≤0.1%

Power Supply (V):

5+0.15V

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

single axis fiber optic gyro

fiber optic gyro 300°/s range

fiber optic gyro 3°/h stability

Product Description

Single Axis Fiber Optic Gyro ±300°/s Range 3°/h Stability

Product Description

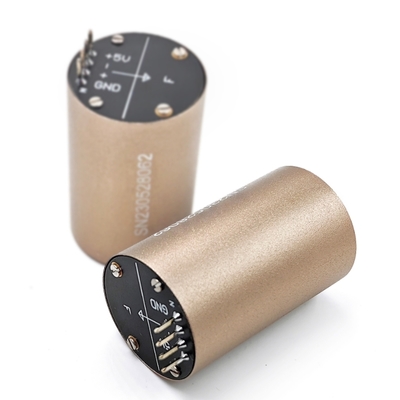

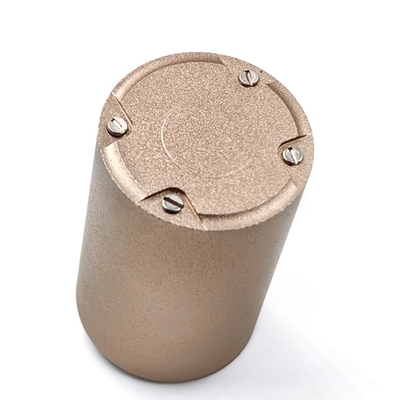

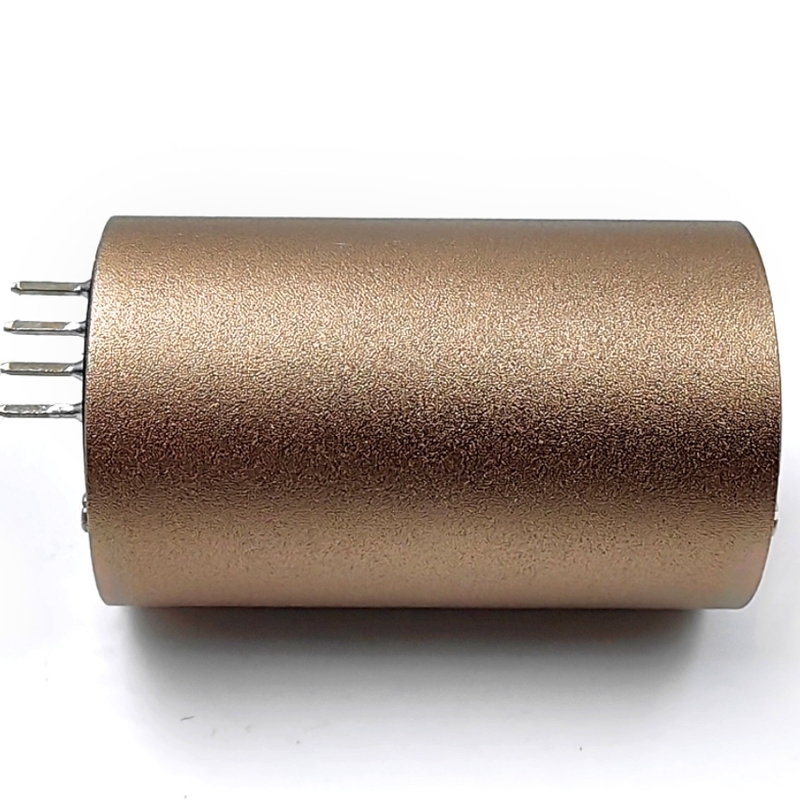

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

Key Features

Simple structure with no moving or wear parts
Fast start-up time and compact design
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber coil skeleton and structural components

Physical Specifications

Dimensions: φ24mm × 51.6mm

Weight: ≤30g

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor (LSB/o/s)	3600
3	Scale factor stability (RMS,%)	≤0.1
4	Zero-bias stability (10s, 1σ, °/H)	≤3
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H1/2)	≤0.02
7	Start-up Time (s)	≤2
8	Power supply (V)	5+0.15
9	Power Consumption (W)	≤1.5
10	MTBF (Calculated Assessment)	50000h @ 20℃

Power Requirements

The external power supply to the product has two circuits, and the requirements are shown in Table 2:

Table 2 External Power Supply Requirements

	+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical interface

The MFOG-091D micro-nano fiber optic gyroscope is electrically connected to the outside by a bonding pad.

It is defined as follows:

Node number	Color	Definition
1	GND	Ground
2	+5V	Power supply
3	YA	RS422 T+
4	YB	RS422 T-
5	B	RS422 R-
6	A	RS422 R+

Outline Drawing
