products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

Fizoptika VG091A Chinese Version Fiber Optic Gyroscope Sensor ±500°/s 5V

Name

Fizoptika VG091A Chinese Version Fiber Optic Gyroscope Sensor ±500°/s 5V

Brand Name: Firepower
Model Number: MFOG-24
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Measuring Range:
±500°/s
Zero-bias Stability( (10s, 1σ):
≤1.5°/h
Angular Random Walk:
≤0.03°/h
Bandwidth:
≥300Hz
Zero-bias Repeatability( (1σ):
≤1.5°/h
Scale Factor Nonlinearity:
≤300ppm
Dimension:
φ24X39mm
Power Supply:
5V
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description

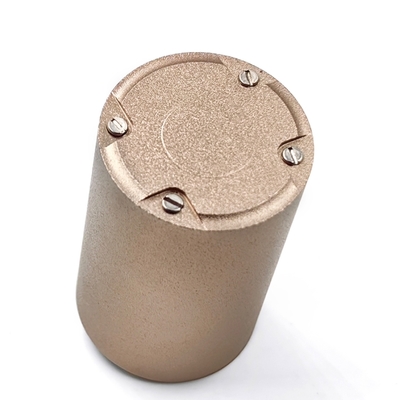

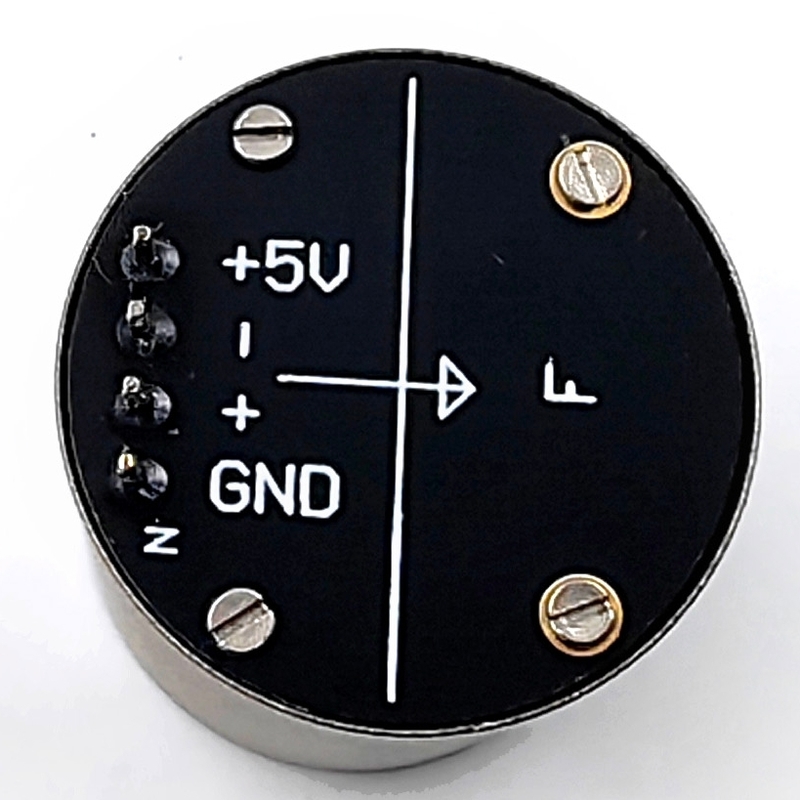

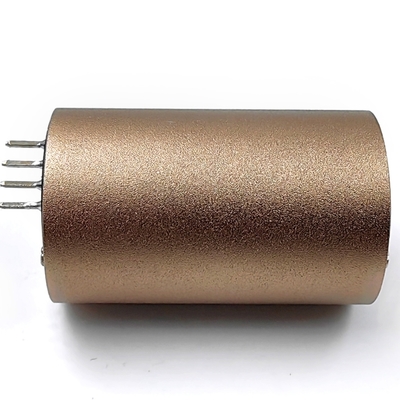

Fizoptika VG091A Chinese Version Fiber Optic Gyroscope Sensor ±500°/s 5V
The MFOG-091A Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor designed as a direct replacement for the Fizoptika VG191A. This product integrates optical, mechanical, and electronic technologies to deliver accurate and reliable angular velocity measurements.
Key Features
  • Based on the Sagnac effect for precise angular motion detection
  • Compact and lightweight design with advanced micro-nano fiber components
  • No moving or wearing parts for fast start-up and minimal maintenance
  • Ideal for UAVs, autonomous navigation, robotics, and aerospace applications
Performance Parameters
Serial number Project MFOG-091A MFOG-091A-AN
1 Range (°/s) ±500 ±300
2 Scale factor 3600(LSB/o/s) 7mv/o/s
3 Scale factor nonlinearity (ppm) 300 ≤1000
4 Zero-bias stability (10s, 1σ, °/h) ≤1.5 ≤2
5 Zero-bias repeatability (1σ, °/h) ≤1.5 ≤2
6 Angular random walk (°/h 1/2) ≤0.03 ≤0.04
7 Zero bias (°/s) ≤0.02 ≤0.05
8 3dB Band Width (Hz) ≥300 ≥450
9 Power supply (V) 5+0.15 5+0.15
10 Power Consumption (W) ≤1.5 ≤0.7
Product Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton, shell and other structural parts
Technical Drawings
Fizoptika VG091A Chinese Version Fiber Optic Gyroscope Sensor ±500°/s 5V 0
Fizoptika VG091A Chinese Version Fiber Optic Gyroscope Sensor ±500°/s 5V 1
