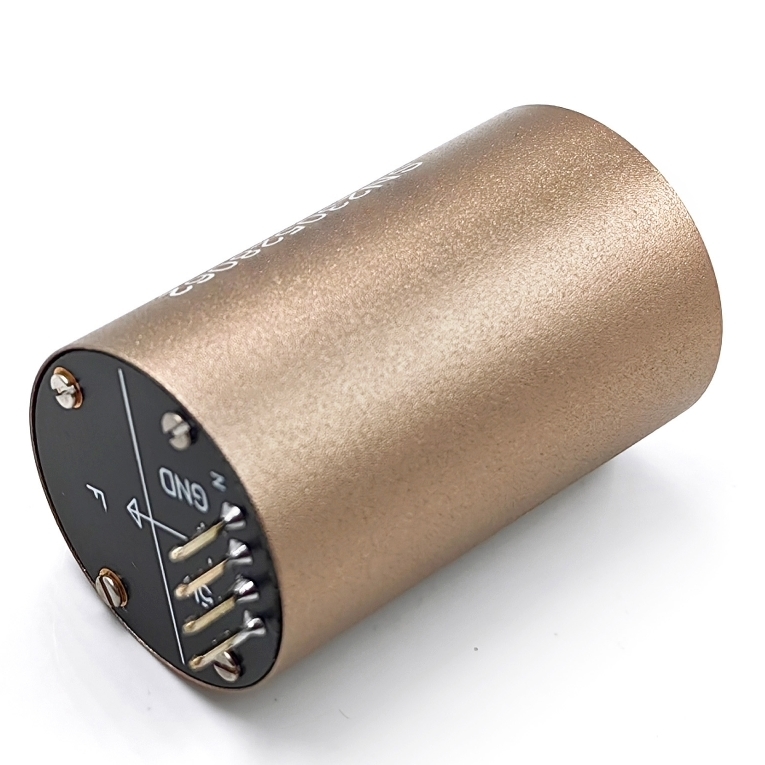

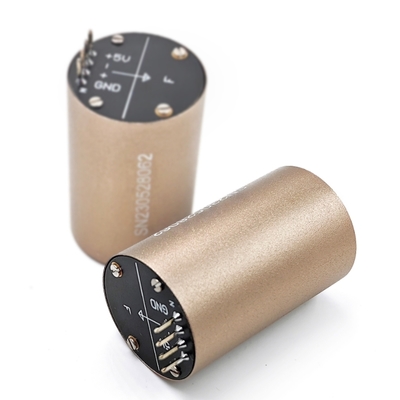

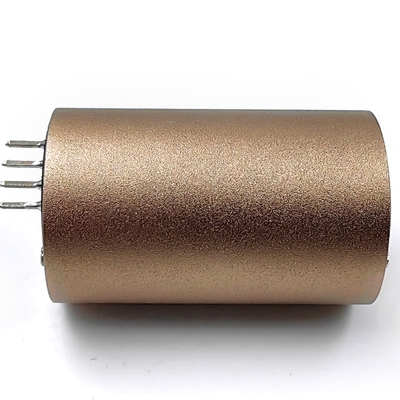

Low Bias Stability Gyroscope Sensor VG091A Copy Gyro Meter

Low Bias Stability Gyroscope Sensor VG091A Copy Gyro Meter

Brand Name:	Firepower

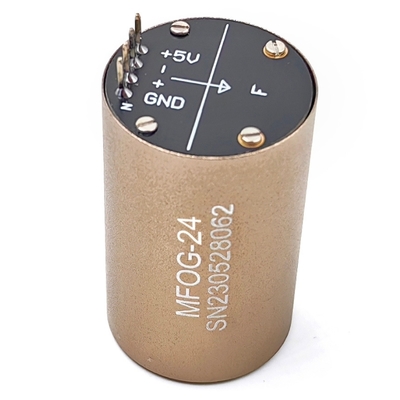

Model Number:	MFOG-24
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±500°/s

Zero-bias Stability( (10s, 1σ):

≤1.5°/h

Angular Random Walk:

≤0.03°/h

Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤1.5°/h

Scale Factor Nonlinearity:

≤300ppm

Dimension:

φ24X39mm

Power Supply:

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Product Description

Low Bias Stability Gyroscope Sensor VG091A Copy Gyro Meter

Product Overview

The MFOG-091A Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor designed as a direct replacement for the Fizoptika VG191A. This advanced sensor integrates optical, mechanical, and electronic technologies to deliver accurate and reliable angular velocity measurements.

Technology & Features

Based on the Sagnac effect, the gyroscope detects angular motion by measuring the phase difference between two beams of light traveling in opposite directions within a fiber loop. This phase difference is precisely processed to achieve high-accuracy angular rate sensing.

Compact and lightweight design with advanced micro-nano fiber components
No moving or wearing parts for fast start-up and minimal maintenance
Robust construction for demanding environments
Ideal for UAVs, autonomous navigation, robotics, and aerospace applications

Performance Parameters

Serial number	Project	MFOG-091A	MFOG-091A-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h 1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Drawings
