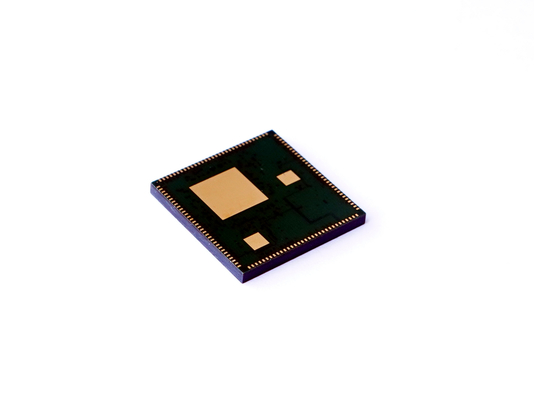

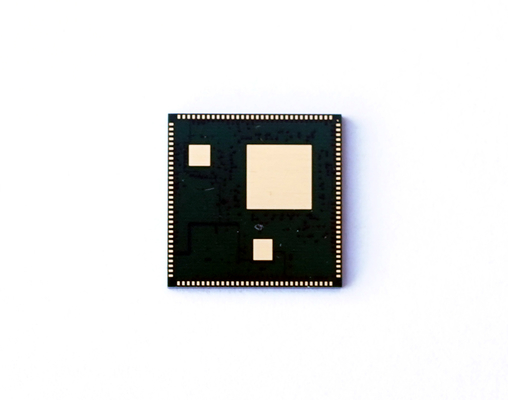

Small Size Low Power Fiber Optic Gyro Control Special Chip

Small Size Low Power Fiber Optic Gyro Control Special Chip

Small Size Low Power Fiber Optic Gyro Control Special Chip

Brand Name: FIREPOWER
Model Number: SIP Chip
MOQ: 1
Price: 200$
Payment Terms: L/C,T/T
Supply Ability: 1 week for sample
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
ADC Resolution:
14bit
ADC Max Operating Frequency:
80MHz
ADC Signal-to-Noise Ratio (SNR):
60dB
Equivalent Input Noise:
3LSB
DAC Resolution:
14bit
RS422 Communication Rate:
≥5MBPS
Dimensions:
≤12mm×12mm×2.5mm
Output Drive Voltage:
≥9Vpp
Packaging Details:
Sponge + Carton
Supply Ability:
1 week for sample
Product Description
Small Size Low Power Fiber Optic Gyro Control Special Chip
Product Introduction

This specialized chip for fiber optic gyro control features high integration, compact size, low power consumption, and robust performance. It integrates all main chip devices required for fiber optic gyro control, suitable for gyros with accuracy below 0.5%.

  • Reduces circuit volume by approximately 70%
  • Effectively minimizes gyro dimensions
  • Superior consistency compared to separate devices
  • Significantly shortens fiber optic gyro R&D cycles

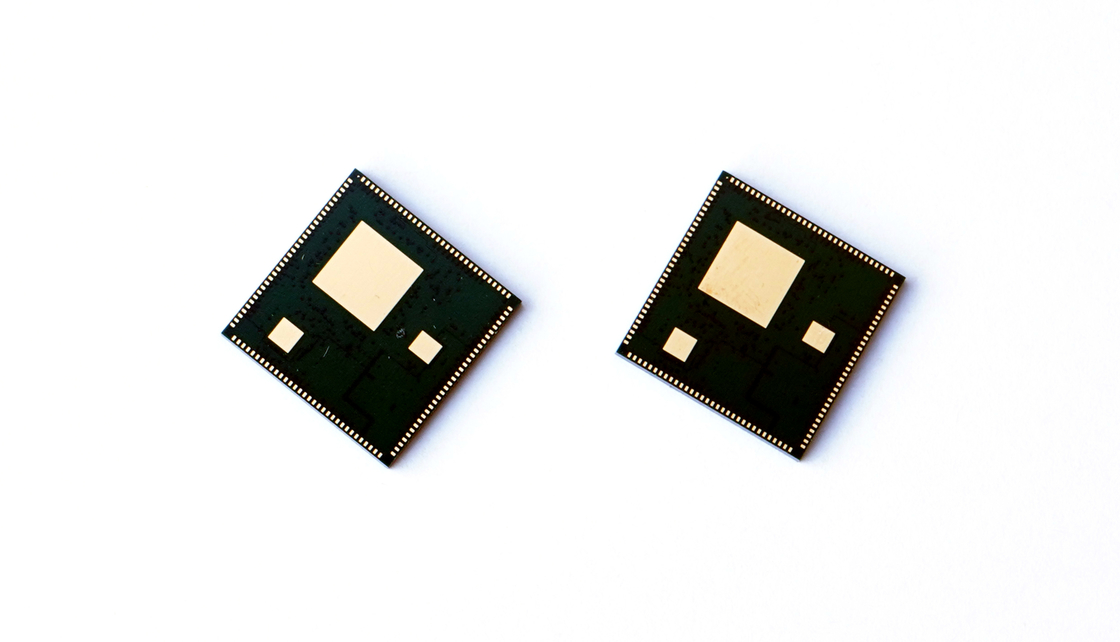

Small Size Low Power Fiber Optic Gyro Control Special Chip 0
Chip Composition

The chip integrates multiple functional units:

  • Programmable logic and memory units (FPGA and FLASH)
  • Digital-to-analog conversion (DAC)
  • Analog-to-digital conversion (ADC)
  • Driver (Diver)
  • Communication unit (422)

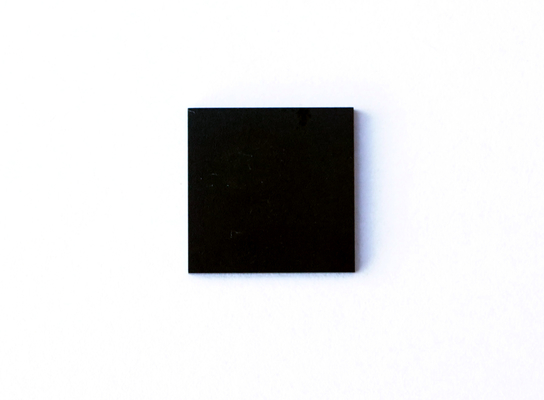

Small Size Low Power Fiber Optic Gyro Control Special Chip 1
Technical Specifications
No. Parameter Specification
1 ADC Resolution 14bit
2 ADC Max Operating Frequency 80MHz
3 ADC Signal-to-Noise Ratio (SNR) 60dB
4 Equivalent Input Noise 3LSB
5 DAC Resolution 14bit
6 DAC Max Operating Frequency 50MHz
7 DAC Spurious-Free Dynamic Range (SFDR) 68dB
8 Output Drive Voltage ≥9Vpp
9 RS422 Communication Rate ≥5MBPS
10 Standby Power Consumption ≤0.8W
11 Dimensions ≤12mm*12mm*2.5mm
12 Package Type QFN
