Fizoptika VG191AD FOG Fiber Optic Gyroscope for Inertial Navigation

Name: Fizoptika VG191AD FOG Fiber Optic Gyroscope for Inertial Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	650~740
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Precision Range:

±500°/s

Scale Factor Sensitivity:

3600 LSB/°/s

Nonlinearity Tolerance:

300 Ppm

Zero-Bias Stability:

≤1.5°/h

Zero-Bias Repeatability:

≤1.5°/h

Bandwidth:

≥300 Hz

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

Fizoptika VG191AD fiber optic gyroscope

FOG inertial navigation gyroscope

fiber optic gyro with warranty

Product Description

Fizoptika VG191AD FOG Fiber Optic Gyroscope for Inertial Navigation

Product Overview

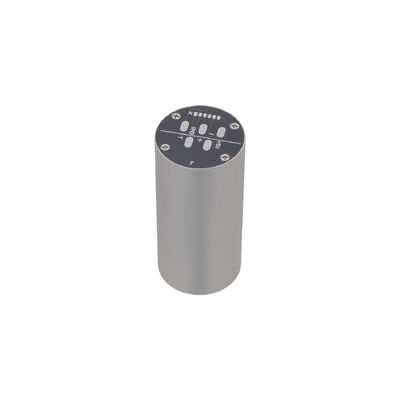

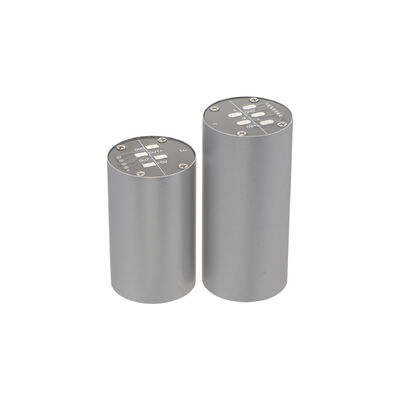

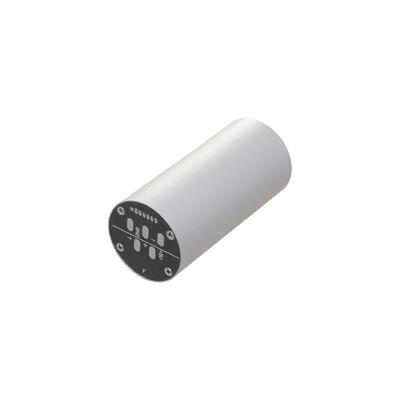

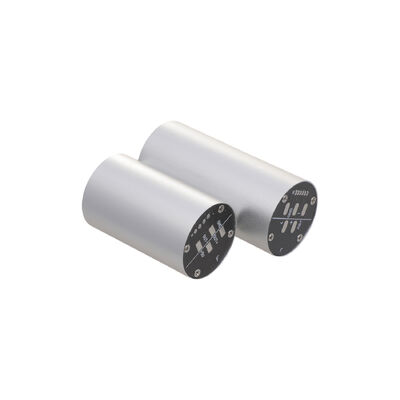

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a cutting-edge angular rate sensor based on the Sagnac effect, featuring an ultra-compact cylindrical design (Φ24 * 39 mm). With no moving parts, this gyroscope ensures long-term reliability, rapid start-up, and high accuracy.

Applications

Attitude control in UAVs (Unmanned Aerial Vehicles)
Robotic navigation systems
Vehicle motion tracking

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24 * 39

All specifications are typical values and may vary depending on operating conditions.
