Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability

Name: Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	650~740
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Bias Stability:

≤1.5°/h

Angular Random Walk:

≤0.03°/h^(1/2)

Power Consumption:

≤1.5W

Bias Repeatability:

≤1.5°/h

Scale Factor Nonlinearity:

300 Ppm

Dimension:

24X39 Mm

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

Single Axis Fiber Optic Gyro

Open-loop Fiber Optic Gyro

Fiber Optic Gyro 1.5° Bias stability

Product Description

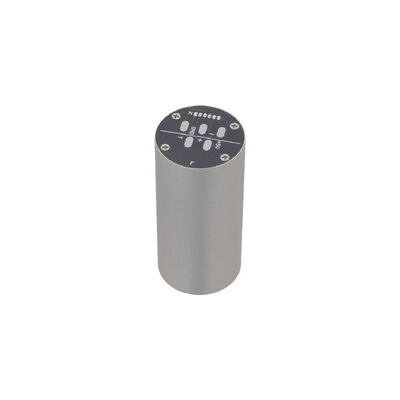

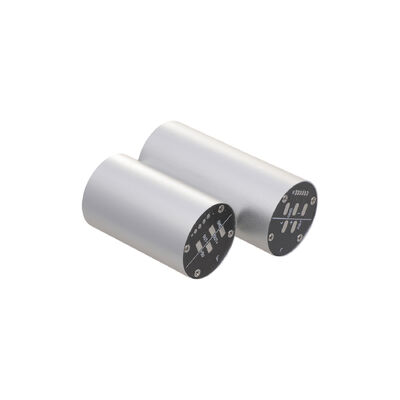

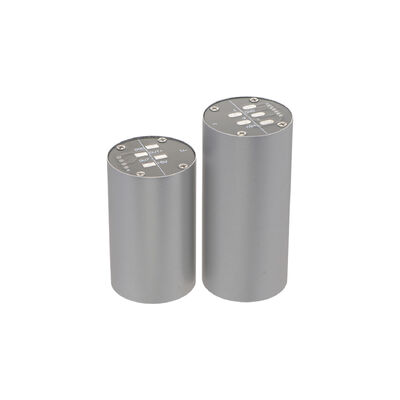

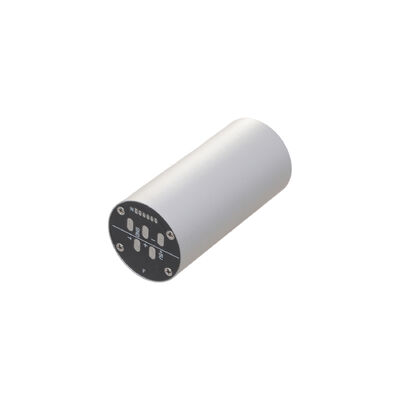

Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5° Bias Stability

The MFOG-24 leverages micro-nano fiber optics for ultra-precise angular rate measurement. Despite its miniaturized form factor, it provides high stability and quick initialization.

Applications

Autonomous drones
Navigation systems
Navigation-grade inertial systems
Inertial measurement units (IMU)

Main Performance Parameters

Serial No.	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600 (LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h 1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
