FOG-Based Inertial Sensors for Autonomous Vehicles and Robotics Fizoptika VG191AD

Name: FOG-Based Inertial Sensors for Autonomous Vehicles and Robotics Fizoptika VG191AD
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	650~740
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero-Bias Repeatability:

≤1.5°/h

Zero-Bias Stability:

≤1.5°/h

Angular Random Walk:

≤0.03°/h^(1/2)

Scale Factor Nonlinearity:

300 Ppm

Power Supply:

5+0.15V

Dimension:

φ24X39 Mm

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

FOG-based IMU for autonomous vehicles

VG191AD inertial sensor for robotics

Fizoptika IMU accelerometer gyro

Product Description

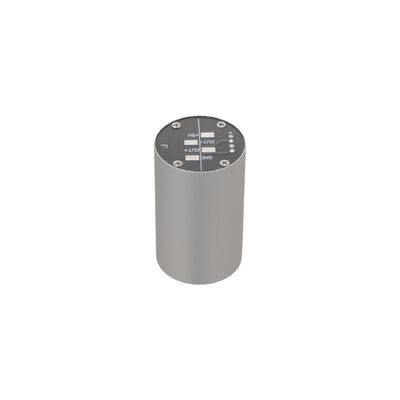

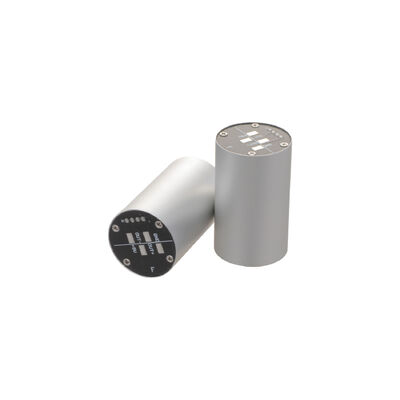

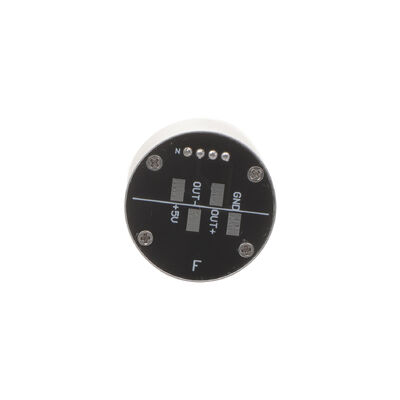

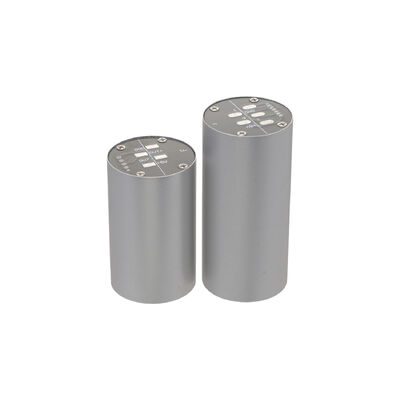

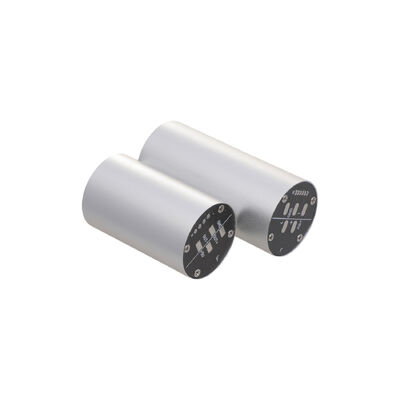

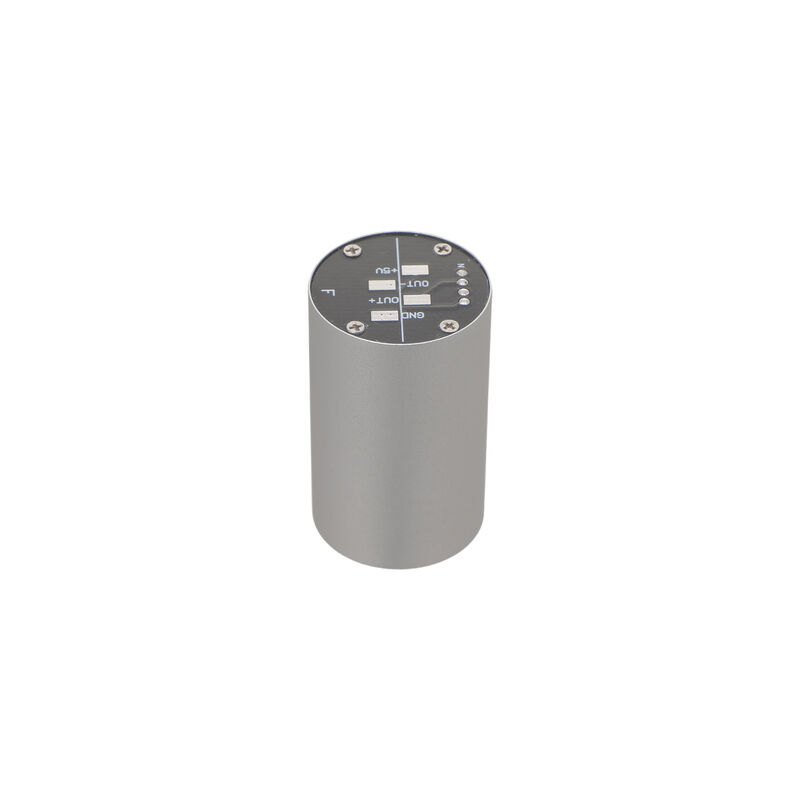

FOG-Based Inertial Sensors for Autonomous Vehicles and Robotics - Fizoptika VG191AD

Utilizing the Sagnac principle, the MFOG-24 provides real-time, precise angular rate measurements. It features integrated optical and electronic modules for fast start-up and outstanding precision.

Applications

Platform stabilization systems
Aerospace navigation systems
Surveying instruments
Satellite pointing systems
Motion control systems

Main Performance Parameters

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
