Fiber Optic Gyroscope FOG for Reliable Motion Sensing and Navigation in UAV

Name: Fiber Optic Gyroscope FOG for Reliable Motion Sensing and Navigation in UAV
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 695.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	650~740USD
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Weight:

30g

Bias Repeatability:

1.5/h

Zero Bias Stability:

<1.5 Deg/h

Angle Random Walk:

0.003°/√ H

Measurement Range:

500°/s

Dimension:

φ24X39mm

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

Fiber optic gyroscope for UAV navigation

FOG motion sensor for drones

IMU gyroscope with reliable sensing

Product Description

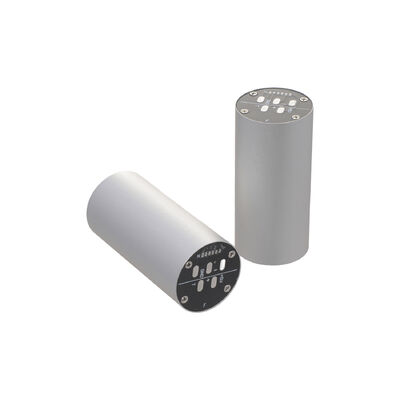

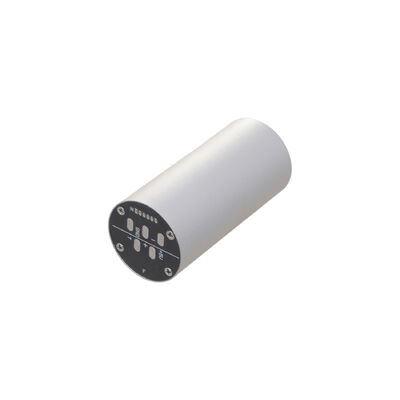

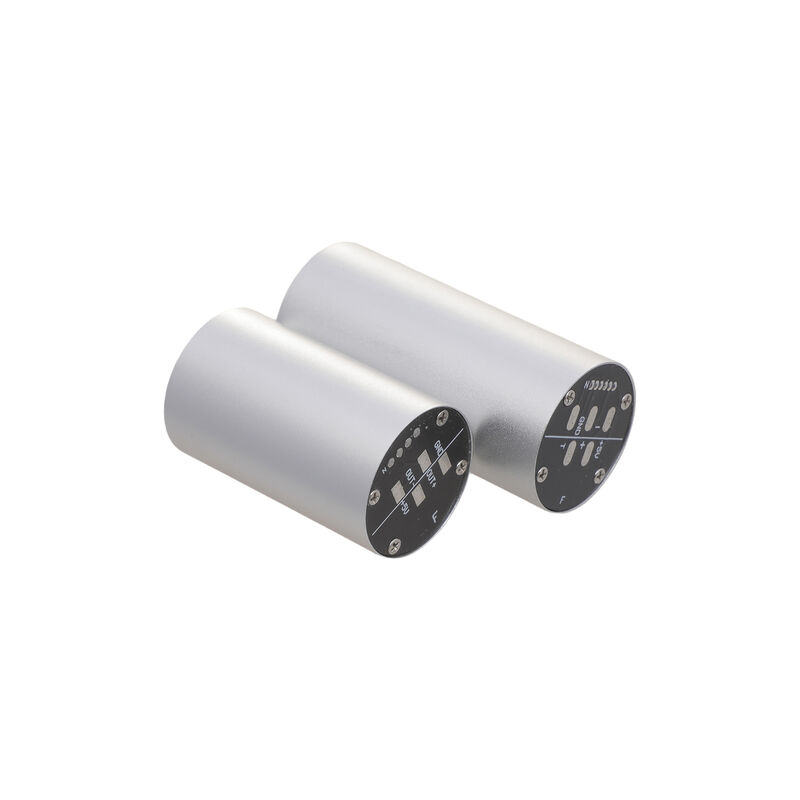

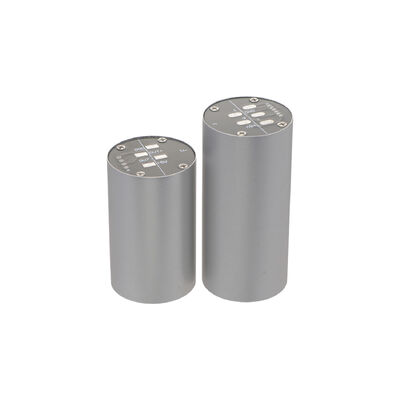

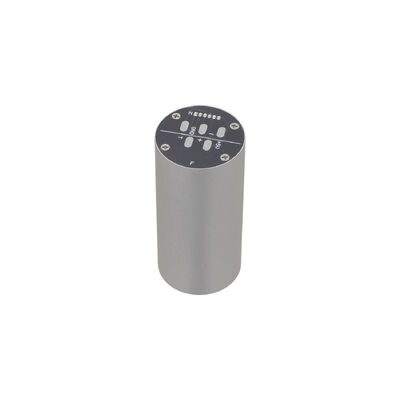

Fiber Optic Gyroscope FOG for Reliable Motion Sensing and Navigation in UAV

Designed for demanding environments, the MFOG-24 is rugged, lightweight, and highly resistant to shock and vibration. With no moving parts, it delivers reliable performance and long service life.

Applications: Ideal for autonomous vehicles, robotics, and precision navigation systems.

Main Performance Parameters

Serial Number	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
