Integrated Fiber Optic Gyroscope for IMU and INS

Name: Integrated Fiber Optic Gyroscope for IMU and INS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	700USD
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Power Supply:

5+0.25V

Angular Random Walk:

0.02 °/Vh

Dimensions:

φ40 × 20 Mm

Range:

±150°/s

Zero-bias Stability:

≤1°/h

Scale Factor:

12±1.2mV/°/s

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

fiber optic gyroscope for IMU

integrated gyroscope for INS

fiber optic sensor with warranty

Product Description

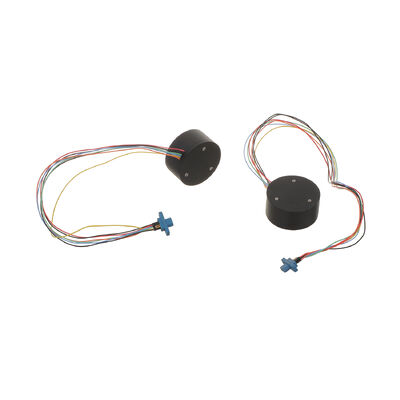

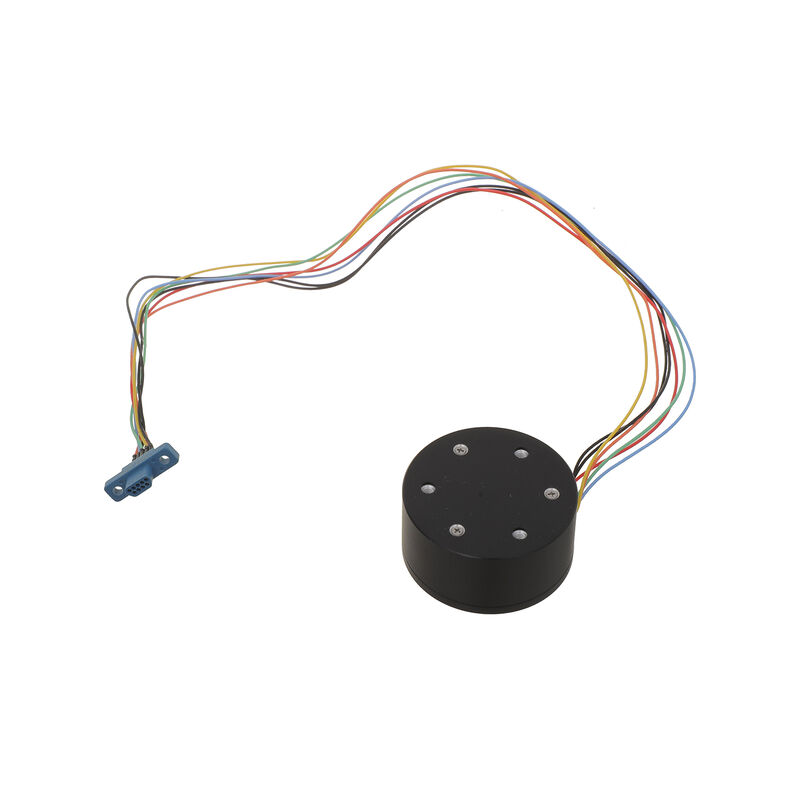

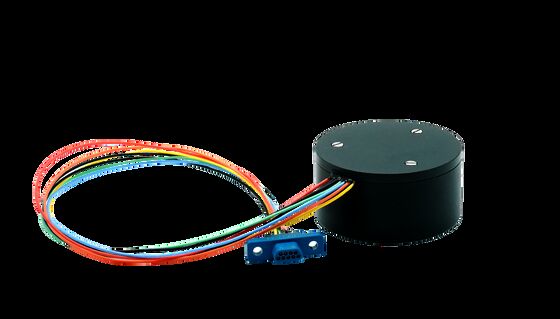

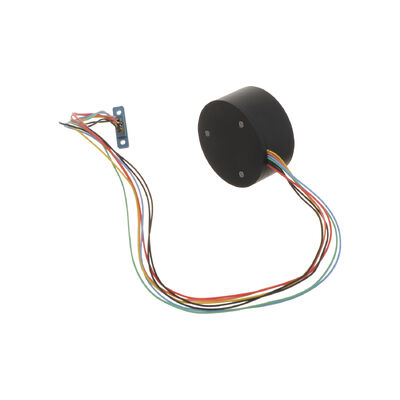

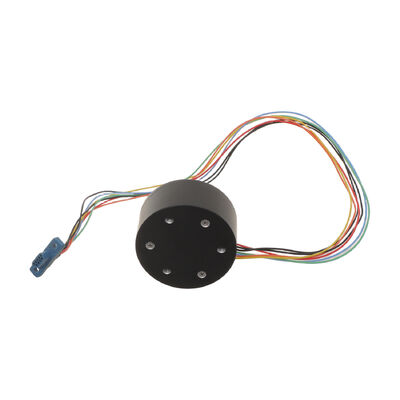

Integrated Fiber Optic Gyroscope for IMU and INS

The MFOG-1703 micro-nano fiber optic gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes micro-nano fiber components to detect angular velocity by measuring the phase difference between two counter-propagating light beams.

Featuring a compact cylindrical structure with no moving or wearing parts, the MFOG-1703 offers fast start-up, high reliability, small size, and low power consumption. It is widely used for attitude measurement and control applications.

The MFOG-1703 is fully compatible with and can directly replace the Fizoptika VG1703 fiber optic gyroscope.

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h^1/2)	≤0.02
6	Zero-bias temperature sensitivity (μV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5 ± 0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 * 20
