Single-Axis Fiber Optic Gyroscope Sensor Fizoptika VG1703 for Stabilized Platform

Name: Single-Axis Fiber Optic Gyroscope Sensor Fizoptika VG1703 for Stabilized Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	700USD
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Angular Random Walk:

0.02 °/Vh

Gyro Range:

150deg/s

Bias Repeatability:

1°/h

Bias Stability:

1°/h

3dB Bandwidth:

≥450Hz

Power Supply:

5+0.25V

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

single-axis fiber optic gyroscope

fizoptika VG1703 gyro sensor

stabilized platform gyroscope sensor

Product Description

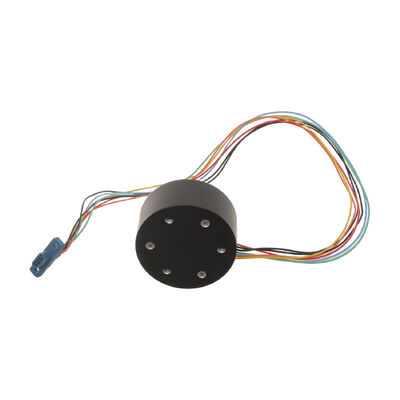

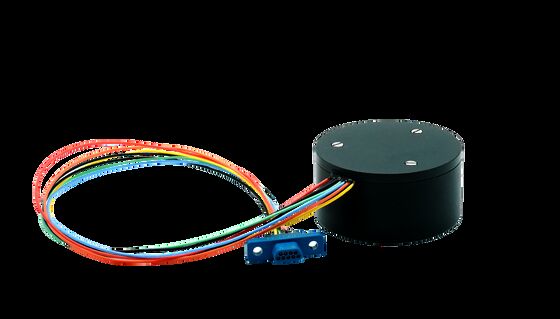

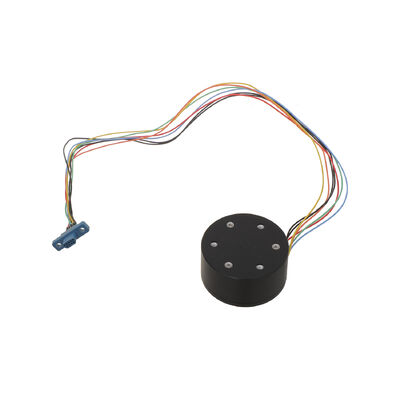

Single-Axis Fiber Optic Gyroscope Sensor Fizoptika VG1703 for Stabilized Platform

The MFOG-1703 is a micro-nano fiber optic gyroscope designed as a direct replacement for the Fizoptika VG1703. This angular rate sensor utilizes the Sagnac effect and integrates optical path assemblies, signal processing circuits, and precision structural components.

With no mechanical moving parts, this gyroscope delivers exceptional stability, high shock and vibration resistance, and rapid power-on performance, making it ideal for harsh environments and long-term operation.

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale Factor (mV/°/s)	12±1.2
3	Zero-bias Stability (10s, 1σ, °/h)	≤1
4	Zero-bias Repeatability (1σ, °/h)	≤1
5	Angular Random Walk (°/h^1/2)	≤0.02
6	Zero-bias Temperature Sensitivity (μV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power Supply (V)	5 ± 0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 * 20
