FOG Inertial Sensor for High Accuracy Motion Control

Name: FOG Inertial Sensor for High Accuracy Motion Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	700USD
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measurement Range (Gyroscope):

±150°/s

Bandwidth:

450 Hz

Zero Bias Stability:

≤1°/h

Zero-bias Repeatability:

≤1°/h

Angular Random Walk:

≤0.02°/h 1/2

Scale Factor Temperature Sensitivity:

≤300ppm/° C

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

FOG inertial sensor for motion control

high accuracy gyro sensor

accelerometer gyro sensor with warranty

Product Description

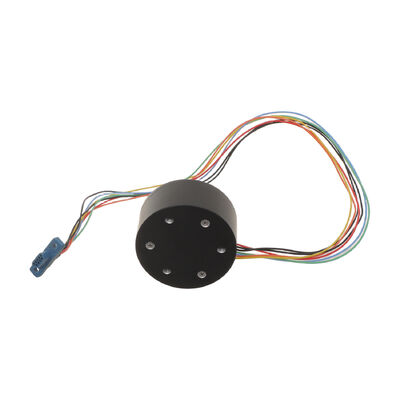

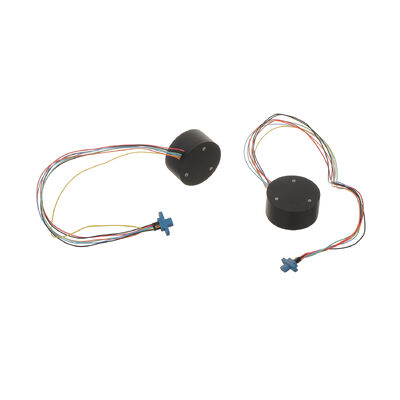

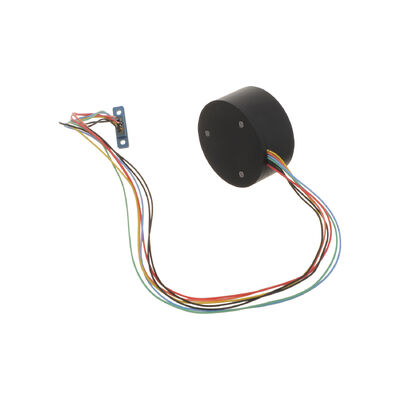

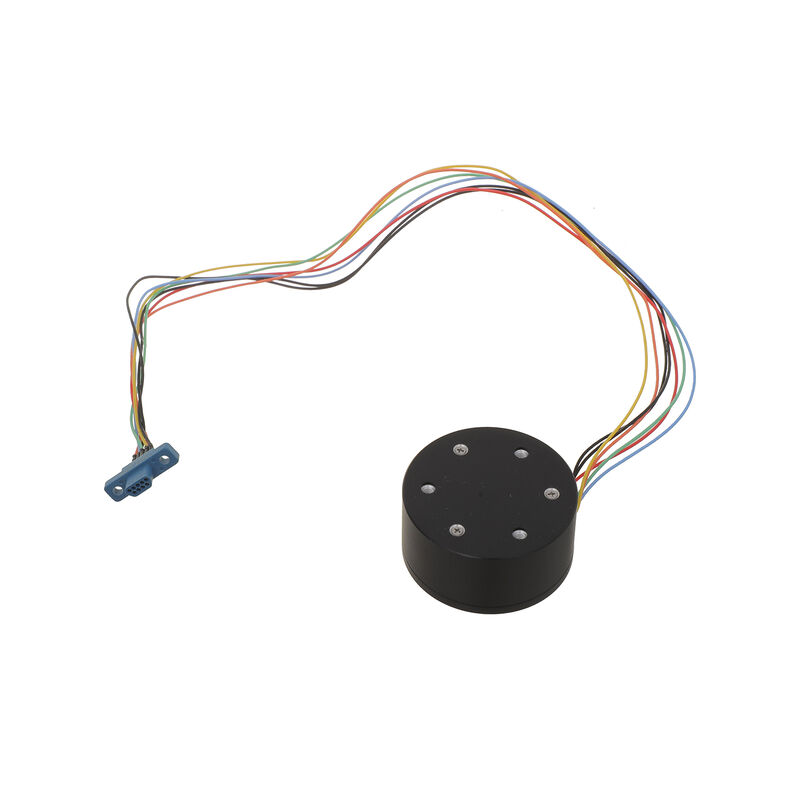

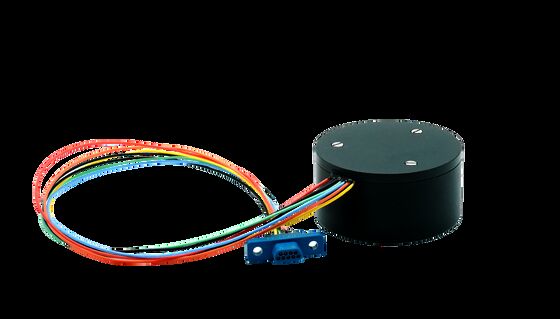

FOG Inertial Sensor for High Accuracy Motion Control

The MFOG-1703 micro-nano fiber optic gyroscope is a compact, lightweight angular rate sensor developed using advanced fiber-optic sensing technology. By detecting the phase shift of counter-propagating light waves, it accurately measures angular motion with high stability and low noise.

With dimensions of only φ40 × 20 mm and weight ≤40 g, this sensor is ideal for space-constrained platforms.

MFOG-1703 provides equivalent or improved performance compared to Fizoptika VG1703 and can fully replace it without system modification.

Main Performance Parameters

Parameter	Performance Indicators
Range (°/s)	±150
Scale factor (mV/°/s)	12±1.2
Zero-bias stability (10s, 1σ, °/h)	≤1
Zero-bias repeatability (1σ, °/h)	≤1
Angular random walk (°/h^1/2)	≤0.02
Zero-bias temperature sensitivity (μV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms, half sine
Power supply (V)	5 ± 0.25
Power Consumption (W)	≤1
Dimension (mm)	φ40 × 20
