Navigation Fiber Optic Gyroscope Sensor with Low Bias Instability

Name: Navigation Fiber Optic Gyroscope Sensor with Low Bias Instability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	700USD
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Dimensions:

φ40 × 20mm

Bandwidth:

450Hz

Measurement Range:

150°/s

Zero-bias Stability:

≤1°/h

Zero-bias Repeatability:

≤1°/h

Power Consumption:

≤1W

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

fiber optic gyroscope sensor low bias

navigation gyroscope sensor high precision

fiber optic gyro accelerometer sensor

Product Description

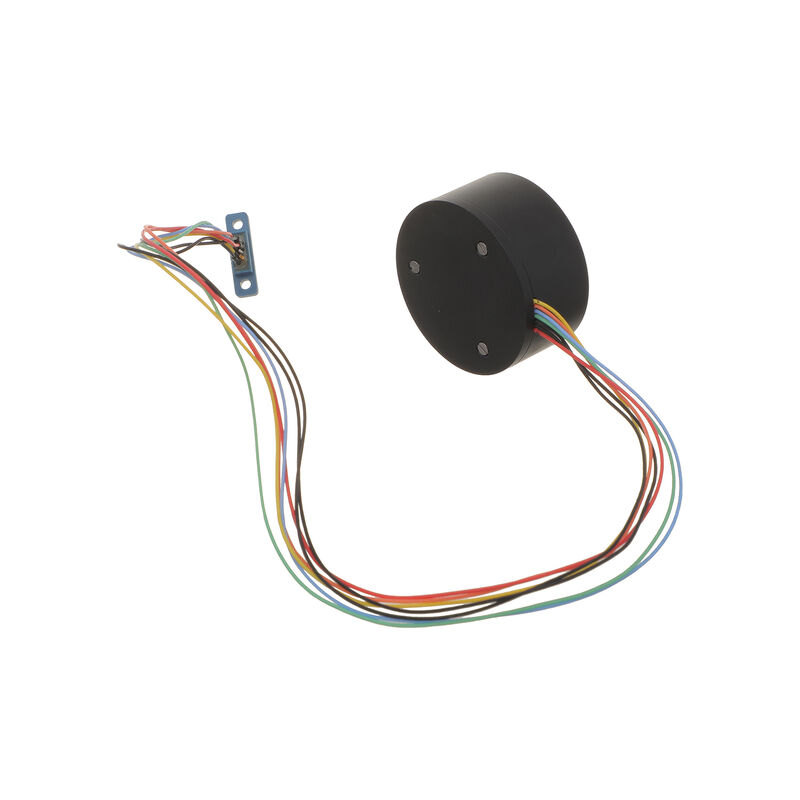

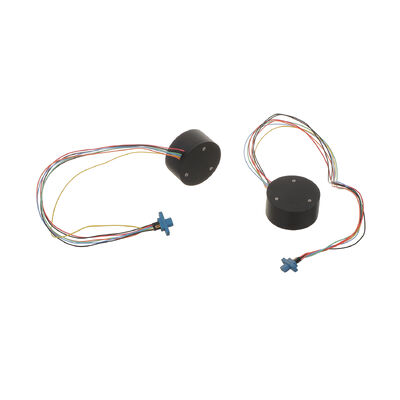

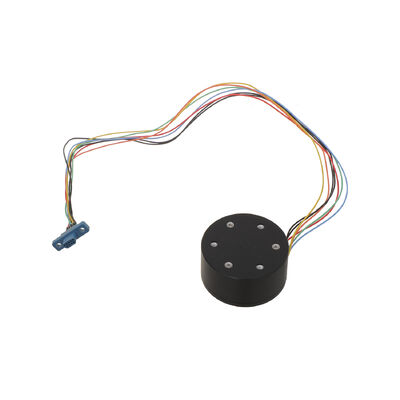

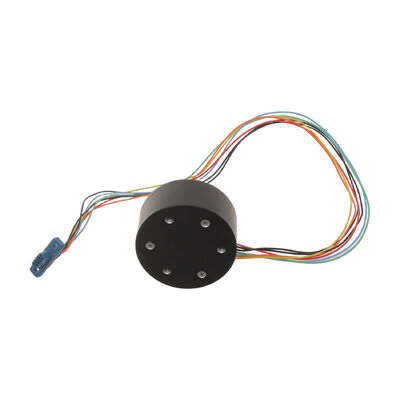

Navigation Fiber Optic Gyroscope Sensor with Low Bias Instability

Based on the Sagnac effect, the MFOG-1703 micro-nano fiber optic gyroscope integrates optical, electronic, and structural subsystems into a highly reliable angular rate sensor. Its solid-state design eliminates mechanical wear, ensuring long service life and stable performance.

The product operates over a wide temperature range and withstands strong vibration and shock, making it suitable for demanding industrial and aerospace applications.

It serves as a full functional substitute for the Fizoptika VG1703.

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale Factor (mV/°/s)	12±1.2
3	Zero-bias Stability (10s, 1σ, °/h)	≤1
4	Zero-bias Repeatability (1σ, °/h)	≤1
5	Angular Random Walk (°/h¹/²)	≤0.02
6	Zero-bias Temperature Sensitivity (μV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power Supply (V)	5 ± 0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 × 20
