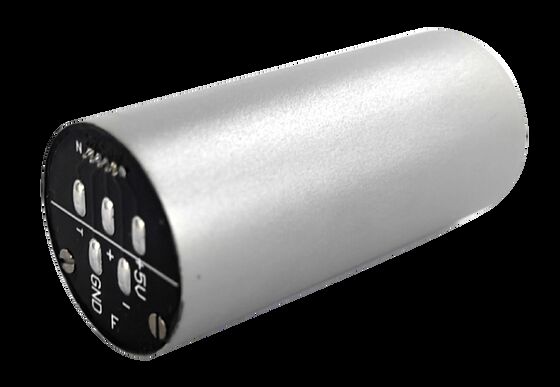

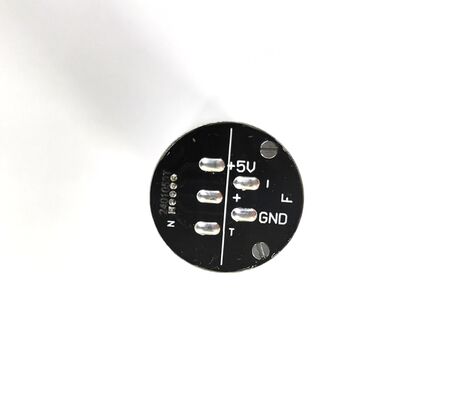

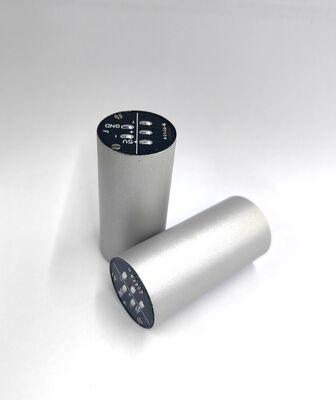

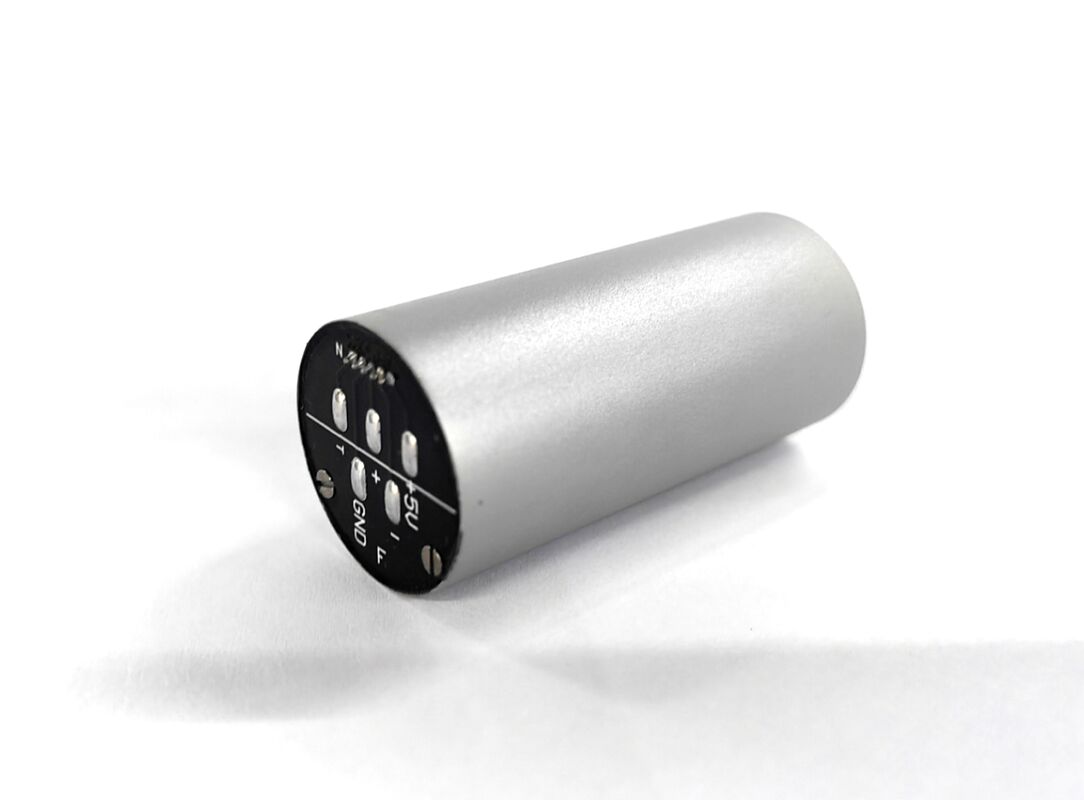

Fizoptika VG191AD FOG Angular Rate Sensor for Stabilized Platform

Name: Fizoptika VG191AD FOG Angular Rate Sensor for Stabilized Platform
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact high-performance angular rate sensor based on the Sagnac effect. Integrating optical, mechanical, and electronic systems, it detects rotational motion by processing phase differences between counter-propagating light beams.

With no moving parts, fast startup, and excellent environmental resistance, it is ideal for modern navigation platforms requiring high reliability.

Main Performance

Serial number	Project	Performance indicators
Serial number	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h ^1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24X39
