Compact Fiber Optic Gyroscope with RS-422 Output Interface for UAV Gimbal

Name: Compact Fiber Optic Gyroscope with RS-422 Output Interface for UAV Gimbal
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

compact fiber optic gyroscope UAV

fiber optic gyro RS-422 output

UAV gimbal gyroscope compact

Product Description

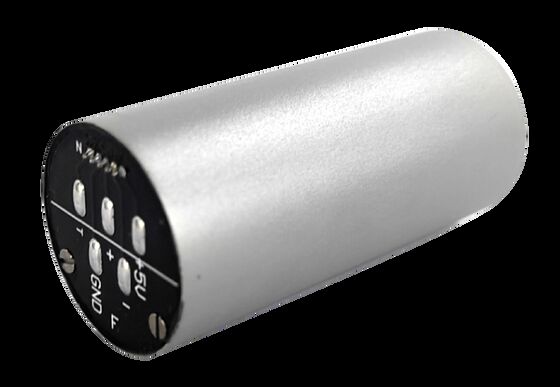

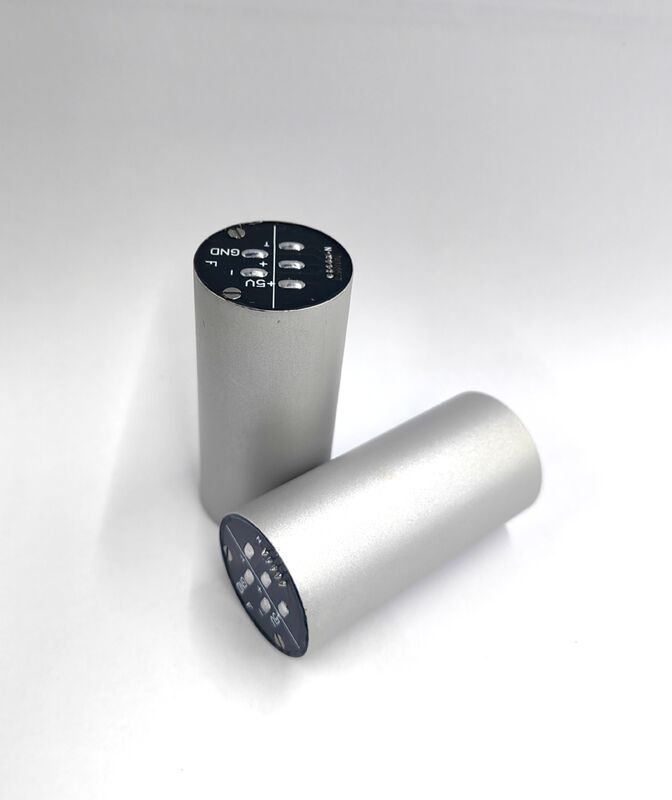

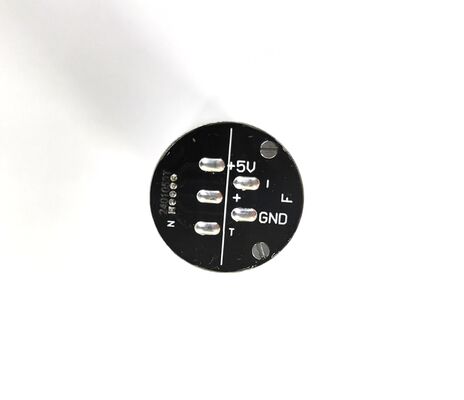

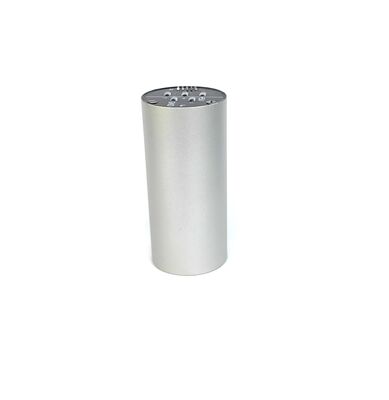

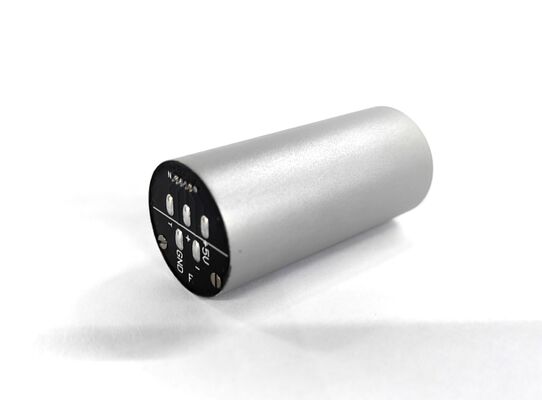

Compact Fiber Optic Gyroscope with RS-422 Output Interface for UAV Gimbal

Designed for space-constrained inertial systems, the MFOG-24 Micro-Nano FOG provides high-accuracy angular rate measurement within a miniature cylindrical housing. Using advanced micro-nano fiber coil technology, this sensor ensures high reliability and long operational life without mechanical wear.

Key Features

Range up to ±500°/s
Zero-bias stability ≤1.5°/h
Bandwidth ≥300Hz
Weight ≤30g
Low power consumption

Perfect for UAV flight controllers, gimbal stabilization, autonomous vehicles, and tactical navigation applications.

Main Performance Specifications

Serial No.	Project	Performance Indicators	MFOG-24	MFOG-24-AN
1	Range (°/s)		±500	±300
2	Scale factor		3600 (LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)		300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)		≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)		≤1.5	≤2
6	Angular random walk (°/h 1/2)		≤0.03	≤0.04
7	Zero bias (°/s)		≤0.02	≤0.05
8	3dB Band Width (Hz)		≥300	≥450
9	Power supply (V)		5+0.15	5+0.15
10	Power Consumption (W)		≤1.5	≤0.7
11	Dimension (mm)	φ24X39
