Tactical Grade FOG Sensor Fiber Optic Gyroscope with 0.03 ARW for Wind Turbine Monitoring

Name: Tactical Grade FOG Sensor Fiber Optic Gyroscope with 0.03 ARW for Wind Turbine Monitoring
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

tactical grade FOG sensor

fiber optic gyroscope for wind turbines

0.03 ARW FOG sensor

Product Description

Tactical Grade FOG Sensor Fiber Optic Gyroscope with 0.03 ARW for Wind Turbine Monitoring

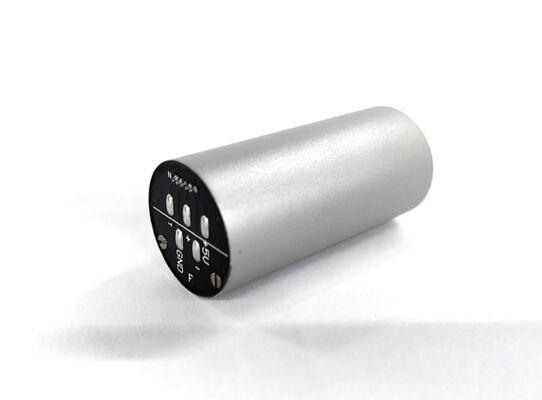

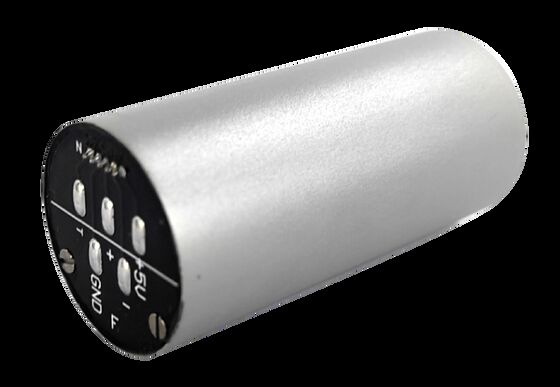

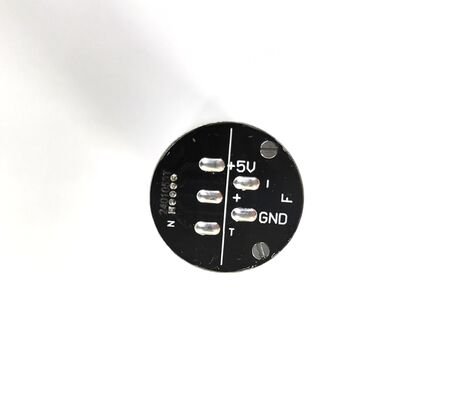

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact, high-performance angular rate sensor designed for advanced attitude control and motion measurement systems. Based on the Sagnac effect, this fiber optic gyroscope integrates optical, mechanical, and electronic components into a lightweight cylindrical package (Φ24×39mm).

Key Advantages

No moving parts or wear components for maximum reliability
Fast startup capability for immediate operation
Excellent zero-bias stability (≤1.5°/h)
Low angular random walk (≤0.03°/√h)
High bandwidth up to 450Hz
Compact size and lightweight design (≤30g)

The MFOG-24's compact dimensions and robust performance make it ideal for UAVs, unmanned vehicles, robotics, stabilization platforms, precision navigation systems, and wind turbine monitoring applications.

Technical Specifications

Environmental & Power Specifications

Operating temperature: -40°C to +65°C
Power consumption: ≤1.5W
Vibration resistance: 20g (20-2000Hz)
Dimensions: φ24×39mm

Performance Specifications

Parameter	MFOG-24	MFOG-24-AN
Range (°/s)	±500	±300
Scale factor	3600 (LSB/o/s)	7mv/o/s
Scale factor nonlinearity (ppm)	300	≤1000
Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
Angular random walk (°/h^1/2)	≤0.03	≤0.04
Zero bias (°/s)	≤0.02	≤0.05
3dB Band Width (Hz)	≥300	≥450
Power supply (V)	5+0.15	5+0.15
Power Consumption (W)	≤1.5	≤0.7
