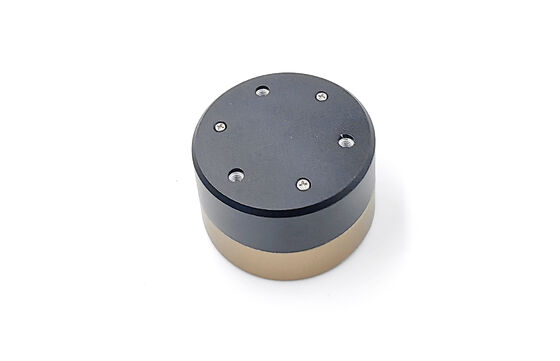

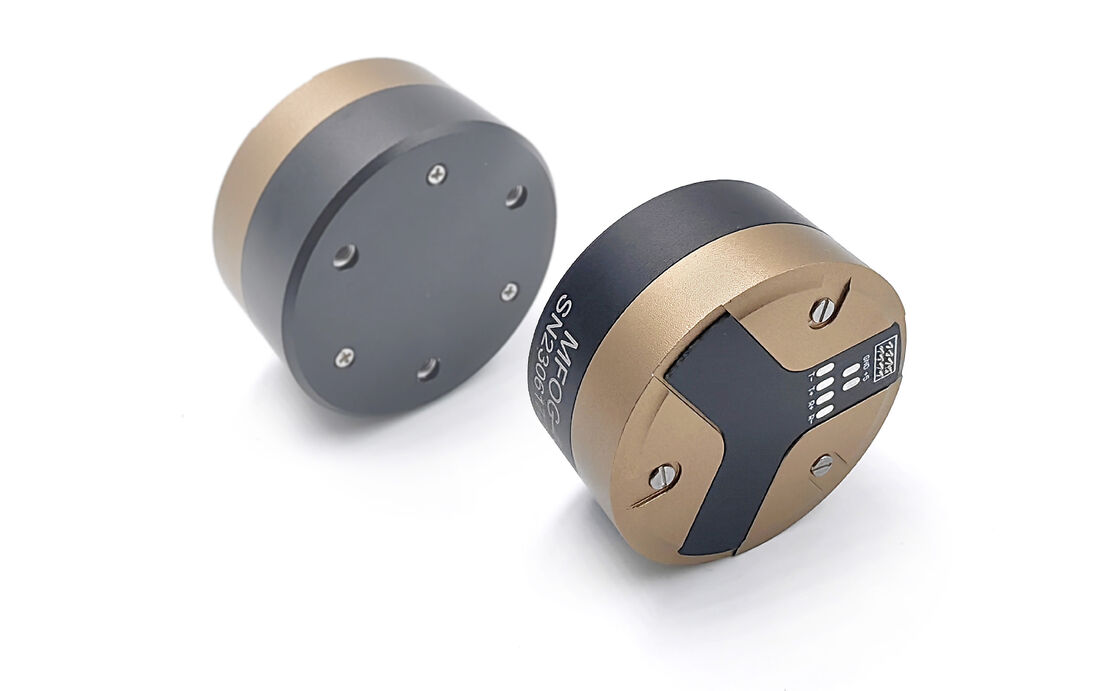

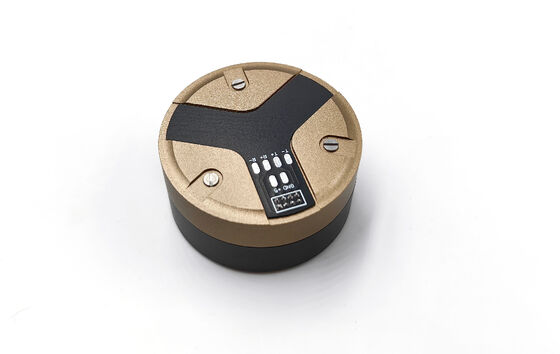

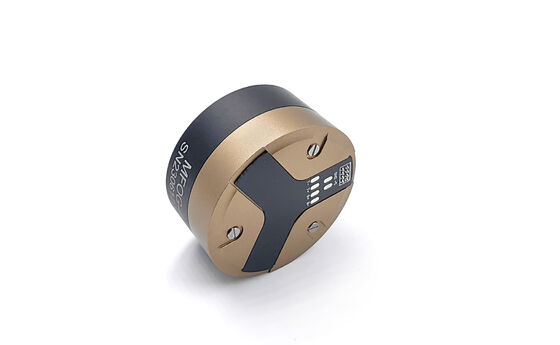

Navigation Grade Precision Fiber Optic Gyroscope for Small Inertial Navigation System

Name: Navigation Grade Precision Fiber Optic Gyroscope for Small Inertial Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Maximum Angular Rate:

±300°/s

Zero Bias Repatability:

≤0.8°/h

Supply Voltage:

+5V

Random Walk Cefficient:

≤0.03°/√h

Output Type:

Analog

Band Width:

>300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

MFOG-40 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts

Main Performance

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale Factor (LSB/ o /s)	3600
3	Scale factor nonlinearity (ppm)	≤500
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	Angular random walk (°/H 1/2	≤0.02
7	Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H)	≤1.5
8	3dB Bandwidth (Hz)	≥300
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimension (mm)	φ40X20
