China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference

Name: China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Maximum Angular Rate:

±300°/s

Zero Bias Repatability:

≤0.8°/h

Supply Voltage:

+5V

Random Walk Cefficient:

≤0.03°/√h

Output Type:

Analog

Band Width:

>300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

fiber optic gyroscope factory price

fiber optic gyro heading reference

china manufacturer gyrocompass gyroscope

Product Description

China Manufacturer Fiber Optic Gyroscope Factory Price for Gyrocompass Heading Reference

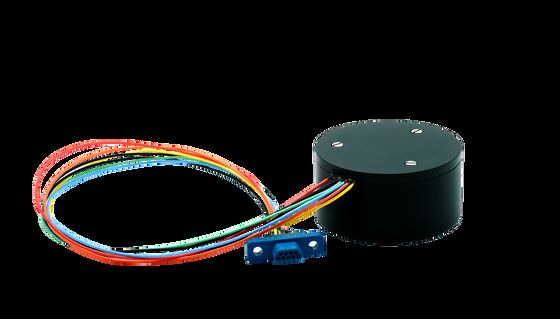

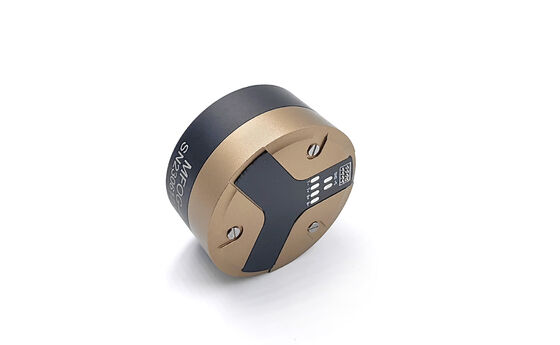

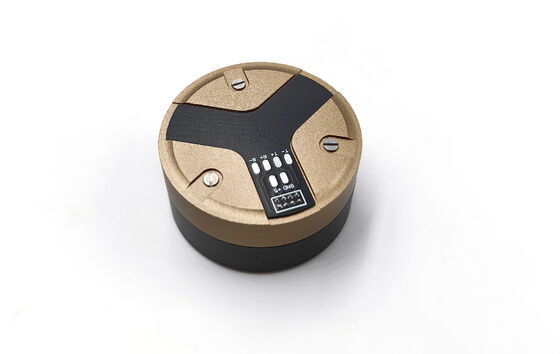

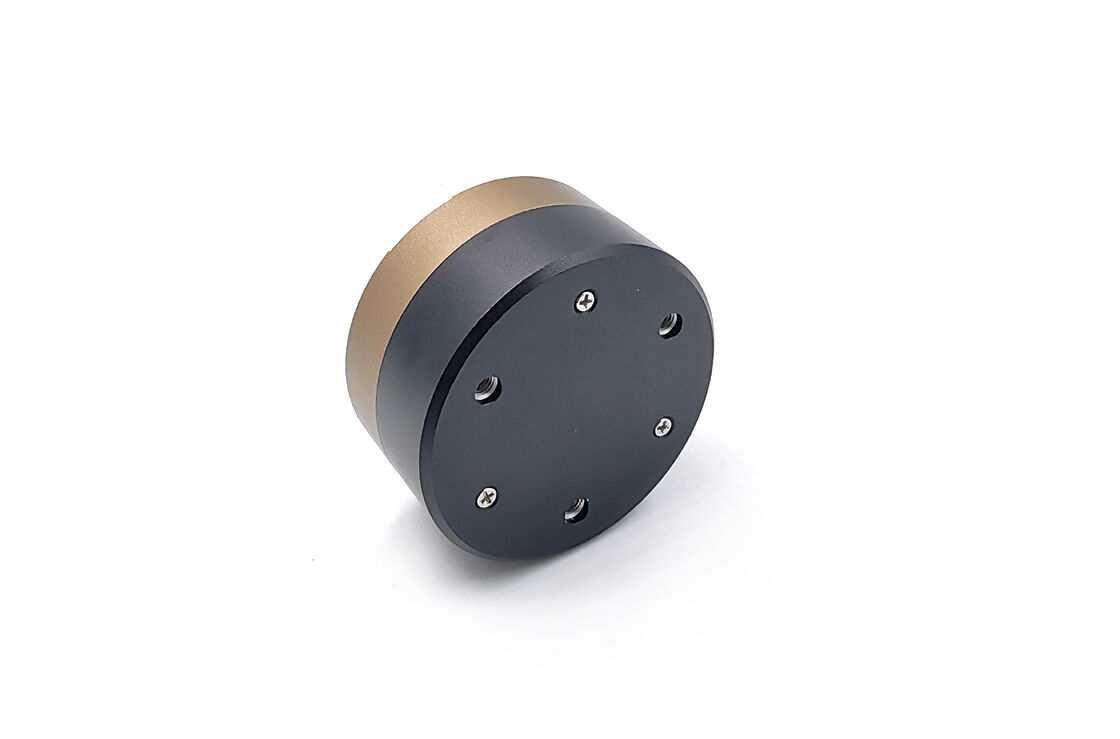

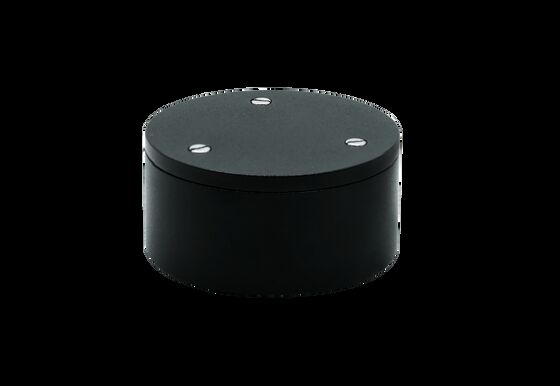

The MFOG-40 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optics, mechanics, and electronics. Based on the Sagnac effect, it delivers accurate attitude measurement with zero moving parts, lightweight design (≤40g), and compact dimensions (φ40*20mm), ideal for UAVs, robotics, and precision platform stabilization.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-bias Stability (10s, 1σ, °/H)	≤0.8
Zero-bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H^1/2)	≤0.02
Zero-bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimensions (mm)	φ40*20
