Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor

Name: Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Maximum Angular Rate:

±300°/s

Zero Bias Repatability:

≤0.8°/h

Supply Voltage:

+5V

Random Walk Cefficient:

≤0.03°/√h

Output Type:

Analog

Band Width:

>300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

low cost fiber optic gyroscope

commercial grade inertial sensor

fiber optic gyro with warranty

Product Description

Low Cost Fiber Optic Gyroscope Commercial Grade Inertial Sensor

Compact Micro-Nano FOG with Easy Integration

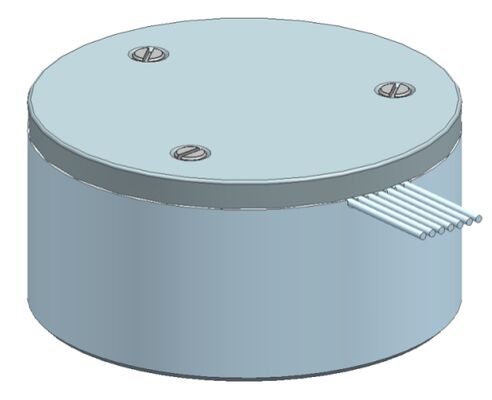

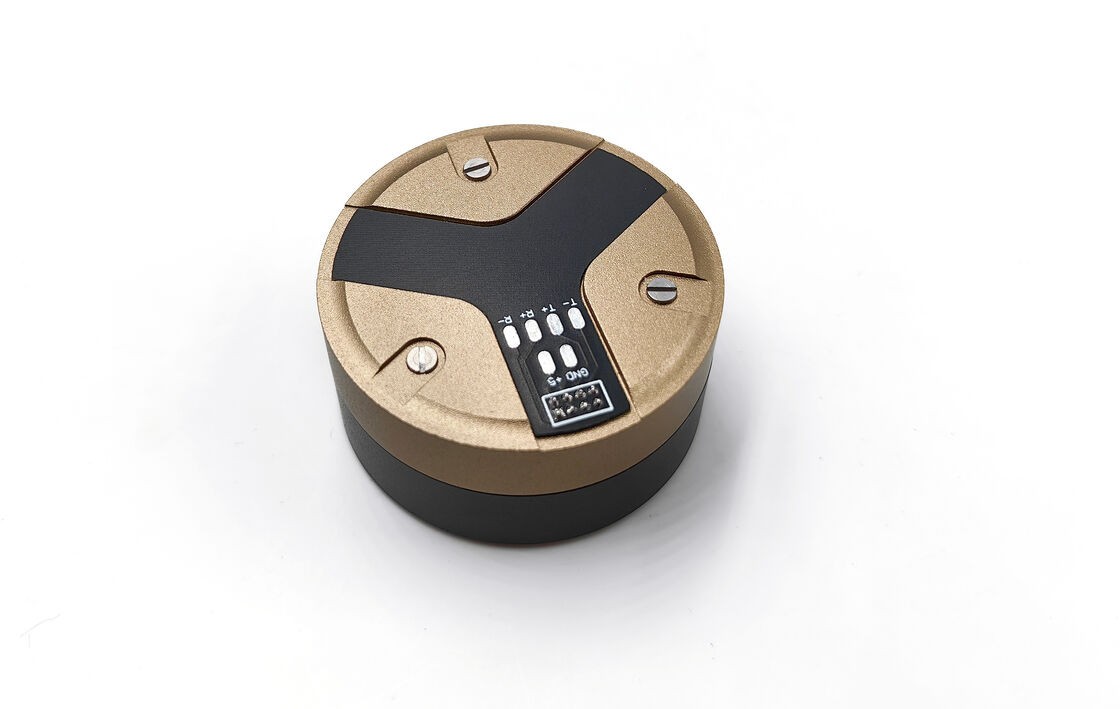

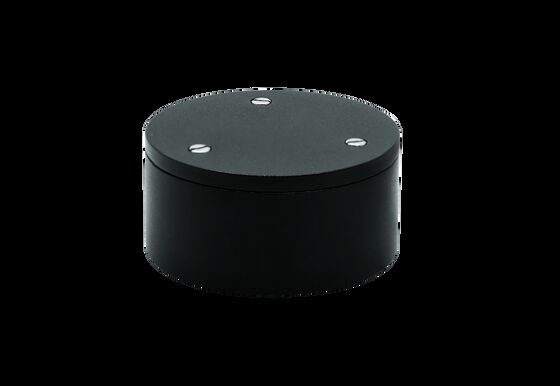

MFOG-40 is a compact micro-nano fiber optic gyroscope featuring three M3 mounting threads for straightforward integration. This commercial grade inertial sensor delivers exceptional performance with ±300°/s range, low zero-bias stability (≤0.8°/h), and angular random walk ≤0.02°/√h, making it ideal for drones, autonomous vehicles, and mobile platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and structural components

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/h)	≤0.8
Zero-Bias Repeatability (1σ, °/h)	≤0.8
Angular Random Walk (°/h¹/²)	≤0.02
Zero-Bias Stability Full Temperature (-40℃ to +65℃, 10s, 1σ, °/h)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5

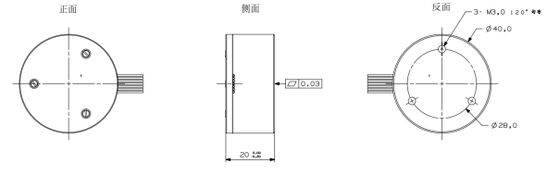

Dimensions (mm)	φ40 * 20
