Industrial Grade Fiber Optic Gyroscope Fog Inertial Navigation System INS

Name: Industrial Grade Fiber Optic Gyroscope Fog Inertial Navigation System INS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Maximum Angular Rate:

±300°/s

Zero Bias Repatability:

≤0.8°/h

Supply Voltage:

+5V

Random Walk Cefficient:

≤0.03°/√h

Output Type:

Analog

Band Width:

>300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

industrial fiber optic gyroscope

FOG inertial navigation system

fiber optic gyro INS

Product Description

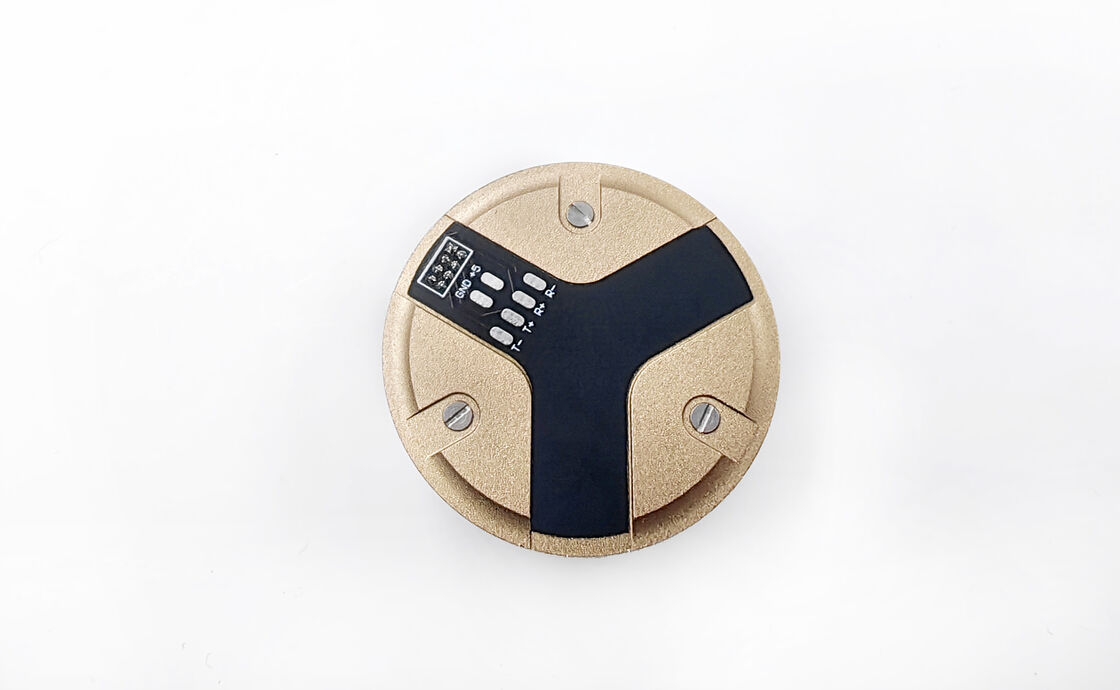

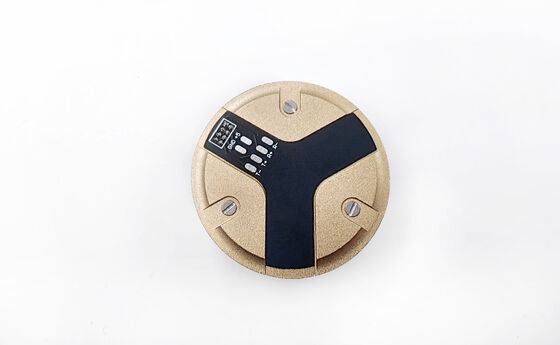

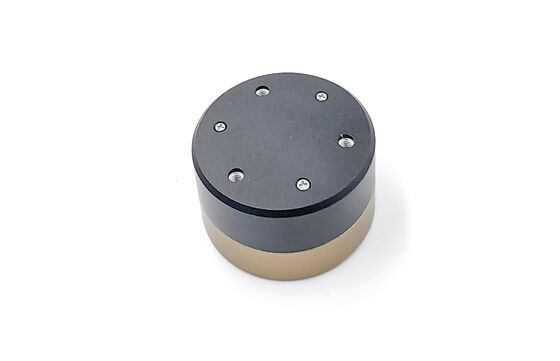

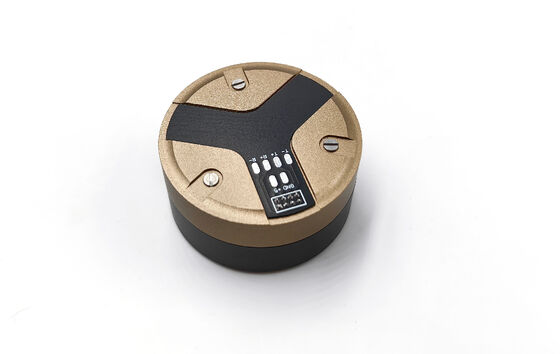

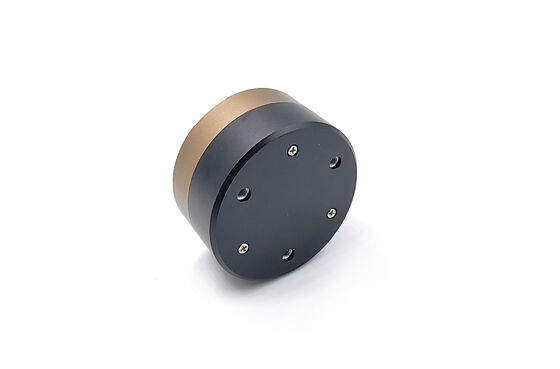

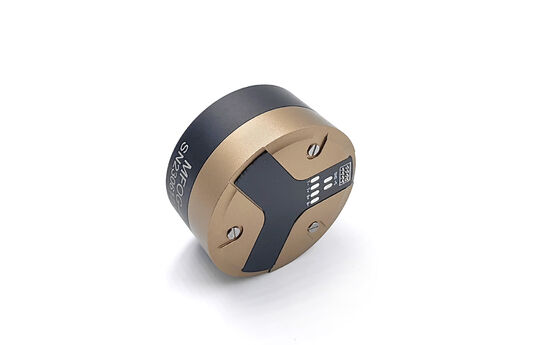

Industrial Grade Fiber Optic Gyroscope FOG Inertial Navigation System INS

The MFOG-40 features a simple structure with no wear parts, ensuring long-term stability and fast startup. With an operating temperature range of -40°C to +70°C and vibration tolerance of 20g (20-2000Hz), this system is ideal for UAV flight control, industrial robotics, and platform stabilization applications.

System Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural components

Technical Specifications

Parameter	Performance Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H¹/²)	≤0.02
Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5

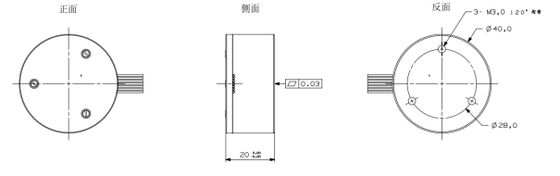

Dimensions (mm)	φ40*20
