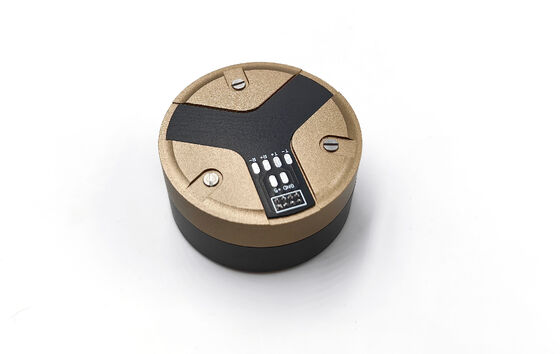

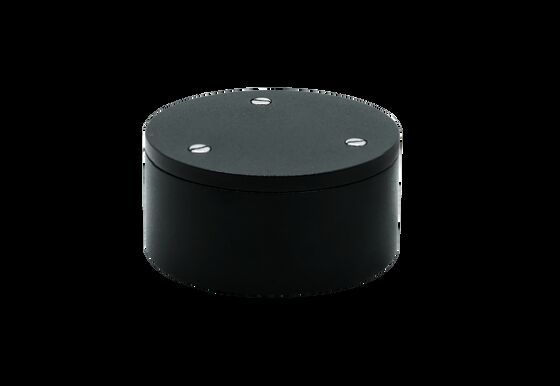

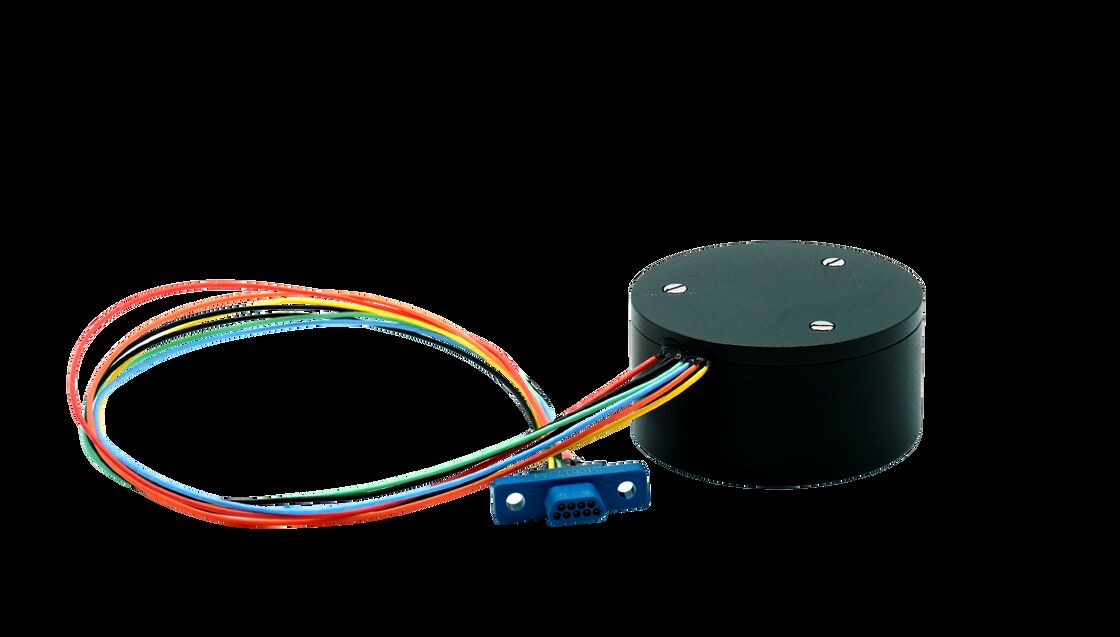

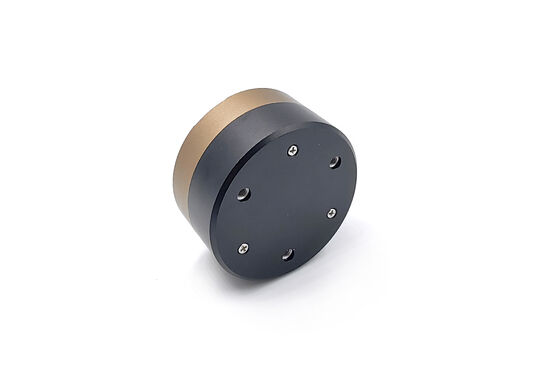

High Performance Fiber Optic Gyroscope with 0.8°/h Bias Stability

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Maximum Angular Rate:

±300°/s

Zero Bias Repatability:

≤0.8°/h

Supply Voltage:

+5V

Random Walk Cefficient:

≤0.03°/√h

Output Type:

Analog

Band Width:

>300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fiber Optic Gyroscope with 0.8°/h stability

High performance Fiber Optic Gyro

Precision Fiber Optic Gyroscope

Product Description

High Performance Fiber Optic Gyroscope with 0.8°/h Bias Stability

This micro-nano fiber optic gyroscope integrates optical path assemblies, signal control circuits, and structural components to deliver exceptional reliability. With ≥300Hz bandwidth and low power consumption (≤1.5W), it is ideal for marine, aerospace, and land-based applications.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H¹/²)	≤0.02
Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimensions (mm)	φ40*20
