UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone

Name: UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±240°/s

Bias Stability:

≤0.8°/h

Zero Bias Repatability:

≤0.8°/h

Random Walk Cefficient:

≤0.02°/√h

Supply Voltage:

+5V

Output Type:

Analog

Band Width:

≥1000Hz

Dimension:

82mm × 82mm × 19.5mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

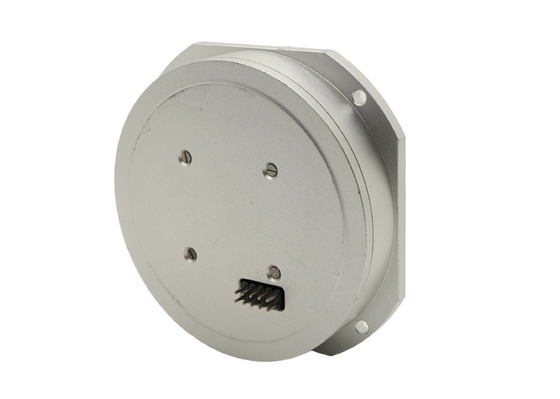

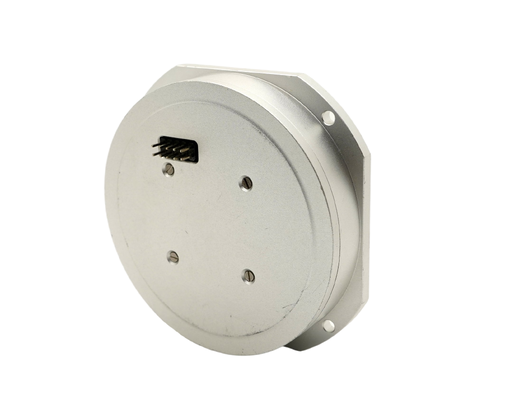

The MFOG-910 micro-nano fiber optic gyroscope is a high-performance angular rate sensor utilizing the Sagnac effect. With a compact design (82mm × 82mm × 19.5mm) and lightweight (≤150g), it is perfect for attitude control in aerospace and defense applications. Its robust performance includes a range of ±240°/s and a zero-bias stability of ≤0.8°/H.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts

Main Performance

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/ ^o/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, ^o/H)	≤0.8
5	Zero-bias repeatability (1σ, ^o/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( ^o/√ H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Outline Drawing
