UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone

Name: UAV Fiber Optic Gyroscope Fizoptika Vg910 for Precision Stabilization Navigation for Drone
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±240°/s

Bias Stability:

≤0.8°/h

Zero Bias Repatability:

≤0.8°/h

Random Walk Cefficient:

≤0.02°/√h

Supply Voltage:

+5V

Output Type:

Analog

Band Width:

≥1000Hz

Dimension:

82mm × 82mm × 19.5mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fiber Optic Gyroscope for UAV

Drone precision stabilization gyroscope

Fizoptika VG910 navigation gyro

Product Description

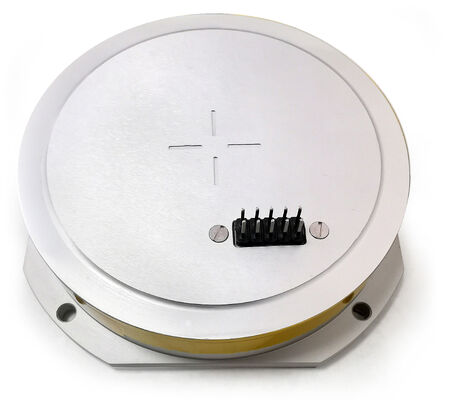

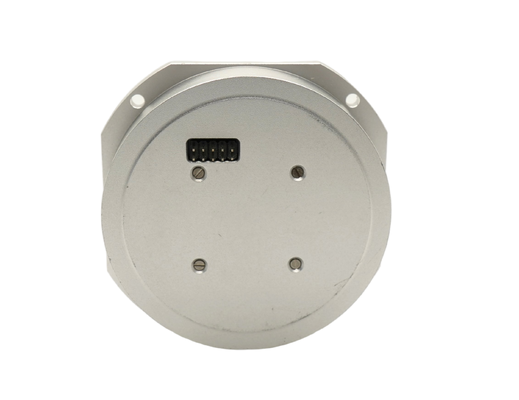

UAV Fiber Optic Gyroscope Fizoptika Vg910

The MFOG-910 micro-nano fiber optic gyroscope is an opto-mechatronic integrated angular rate sensor engineered for precision attitude control and navigation in drone applications.

Product Overview

This advanced gyroscope features a scale factor of 47±5 mV/°/s, scale factor nonlinearity ≤1000 ppm, and 3dB bandwidth ≥1000Hz, making it ideal for precision instrument attitude measurement. With its compact dimensions (82mm*82mm*19.5mm) and lightweight design (≤150g), it can be easily integrated into small-sized precision equipment.

Key Features

Simple structure with no moving parts
No wear components for enhanced reliability
Fast startup time
Compact size and lightweight design
Suitable for carrier attitude control and measurement

Product Composition

The MFOG-910 consists of three main components:

Optical path assembly
Detection and control signal circuit board
Fiber optic ring skeleton, housing, and structural components

Technical Specifications

Parameter	Specification
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-bias Stability (10s, 1σ, °/H)	≤0.8
Zero-bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25±12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF	≥100,000

Outline Drawing
