Miniature Fiber Optic Gyroscope for Autonomous Drone Flight Control

Name: Miniature Fiber Optic Gyroscope for Autonomous Drone Flight Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±240°/s

Bias Stability:

≤0.8°/h

Zero Bias Repatability:

≤0.8°/h

Random Walk Cefficient:

≤0.02°/√h

Supply Voltage:

+5V

Output Type:

Analog

Band Width:

≥1000Hz

Dimension:

82mm × 82mm × 19.5mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

miniature fiber optic gyroscope

fiber optic gyro for drones

autonomous drone flight gyroscope

Product Description

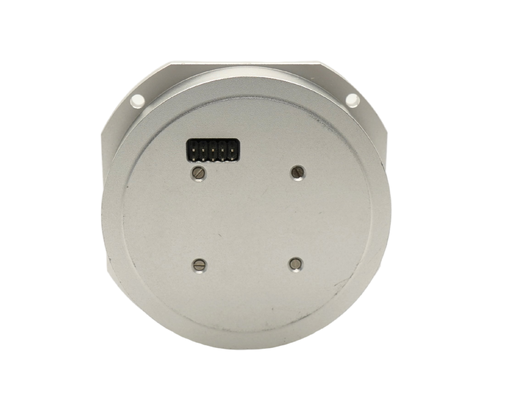

Miniature Fiber Optic Gyroscope for Autonomous Drone Flight Control

Introducing the MFOG-910 micro-nano fiber optic gyroscope, an advanced sensor that integrates optics, mechanics, and electronics. Engineered for precision, this gyroscope operates effectively in temperatures from -40℃ to +70℃ and is ideal for robotics and UAV navigation, featuring a scale factor of 47±5 mV/°/s.

This product features a simple structure with no moving parts or wear components, ensuring fast startup, compact size, and lightweight design. It is designed for attitude control and measurement applications in various carrier systems.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural components

Technical Specifications

Parameter	Performance Indicators
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-bias Stability (10s, 1σ, °/H)	≤0.8
Zero-bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25±12
Power Consumption (W)	≤1.5
Impact (g)	≥1500
Acceleration (g)	≥70
Life (years)	≥15
MTBF	≥100,000

Outline Drawing
