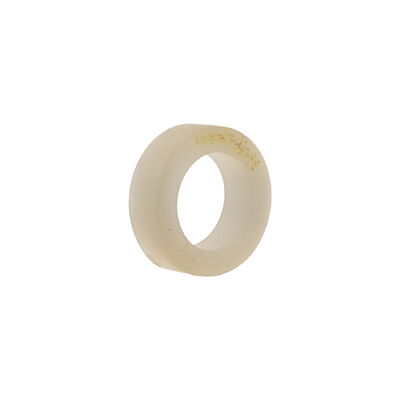

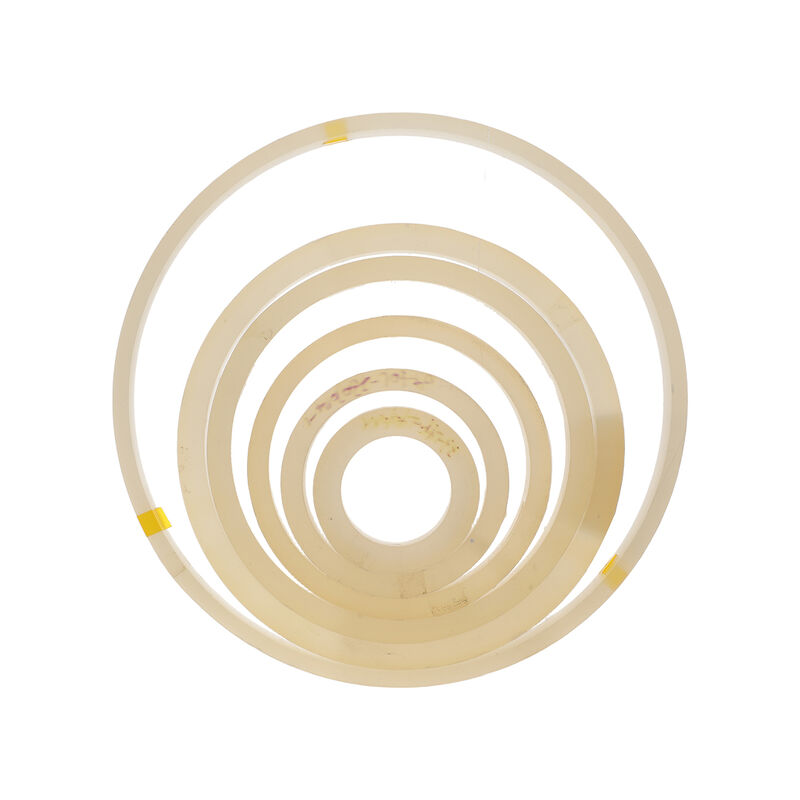

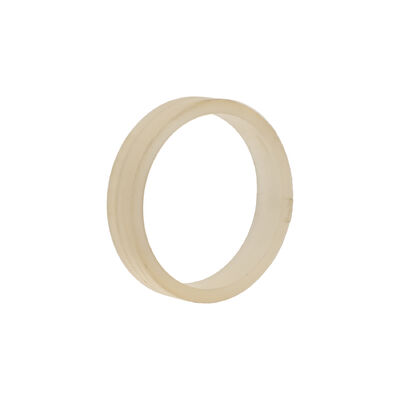

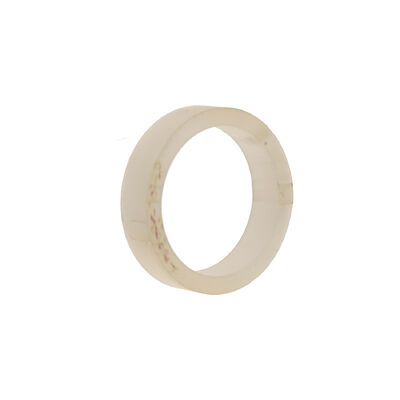

Fiber Optic Coil 260m Free Standing Loop Fiber Optical Gyroscope

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

Based on the customer and market application requirements, the company specializes in the professional design and manufacturing for optic fiber coils. The φ50 low-precision fiber optic coil is designed to meet the assembly, performance, and various application environment requirements of φ50 fiber optic gyroscopes.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This model of optic fiber coil adopts a multi-pole symmetric winding method and uses 135um thin diameter optical fibers and UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.

Main Performance

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45–80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Customization Information

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
