High Precision Polarization-Maintaining Fiber Coil for FOG Navigation System

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Full Temperature Zero Bias Peak-to-Peak (10s Smoothing):

≤1.5°/h

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Polarization-maintaining fiber coil for FOG

High precision fiber optic gyro coil

FOG navigation system fiber coil

Product Description

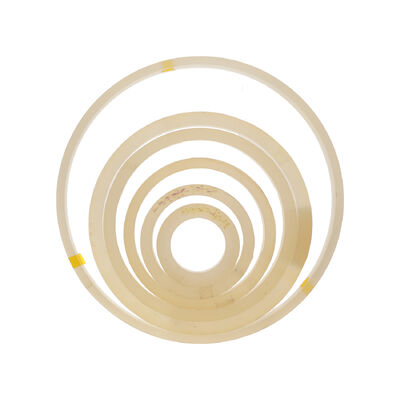

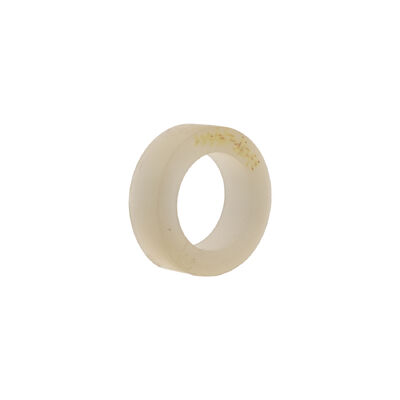

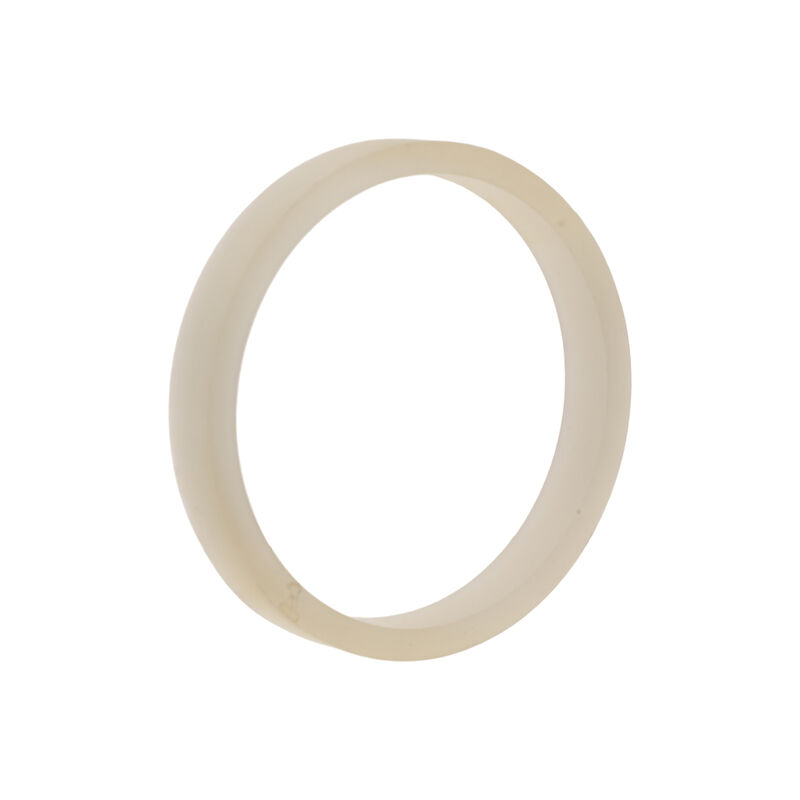

High Precision Polarization-Maintaining Fiber Coil for FOG Navigation System

This optical fiber coil is engineered for high-performance gyroscope systems. Utilizing advanced winding technology, it delivers exceptional consistency and long-term reliability. Customizable options are available to meet specific application requirements.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil model employs a multi-pole symmetric winding method using 135μm thin diameter optical fibers and UV-cured adhesive. The coil demonstrates excellent temperature and vibration performance, and supports mass production with consistent product quality.

Performance Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

Geometric dimensions, length, and performance specifications of the optical fiber coil can be customized according to specific application requirements.
