Single Mode Fiber Optic Coil for Accurate Signal Detection Factory Supply

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

single mode fiber optic coil

fiber optic gyro signal detection

factory supply fiber optic coil

Product Description

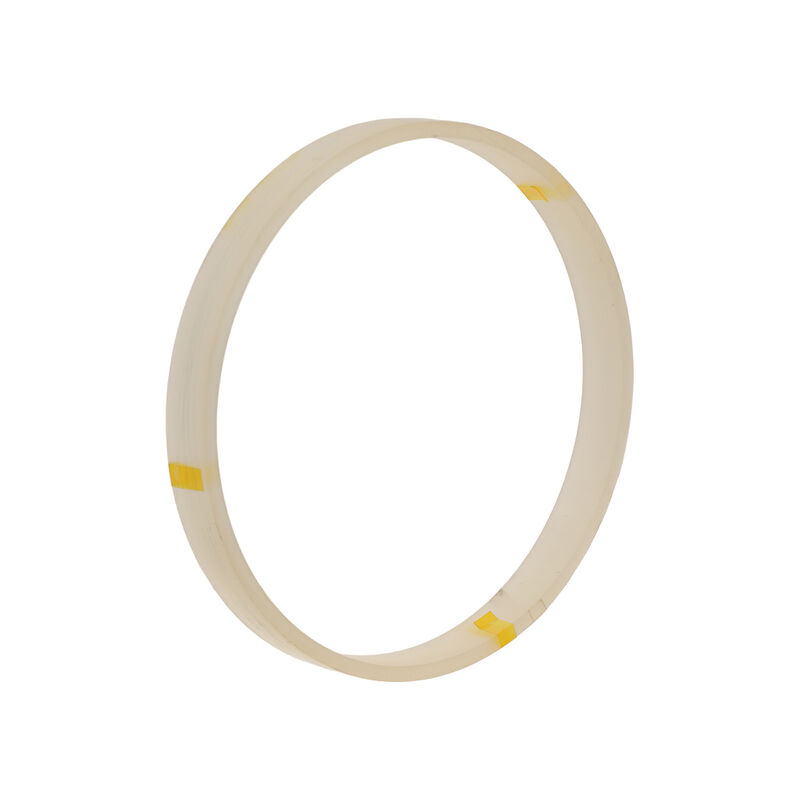

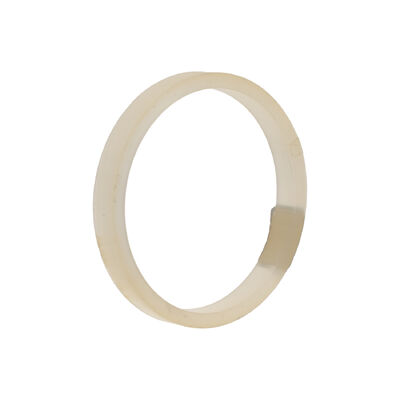

Single Mode Fiber Optic Coil for Accurate Signal Detection

Product Overview

Our company specializes in the professional design and manufacturing of optical fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy the assembly, performance, and environmental requirements of φ50 fiber optic gyroscopes.

Application Areas

Primarily used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This optical fiber coil model utilizes a multi-pole symmetric winding method with 135μm thin diameter optical fibers and UV-cured adhesive. The ring demonstrates exceptional temperature and vibration performance, and supports mass production with excellent product consistency.

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Customization Options

The geometric dimensions, length, and performance specifications of the optical fiber coil can be custom-designed according to your specific application requirements.
