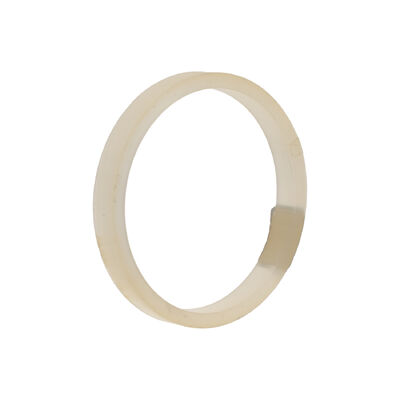

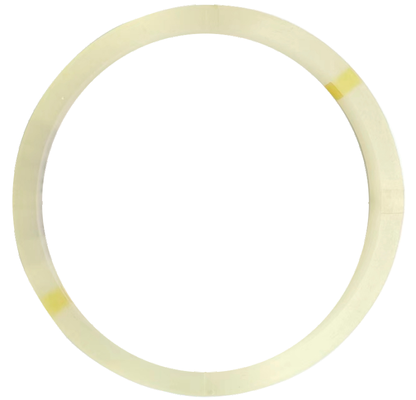

High Performance PM Fiber Coil for Fiber Optic Sensors

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

PM fiber coil for fiber optic gyro

high performance fiber optic sensor coil

fiber optic gyro PM coil

Product Description

High Performance PM Fiber Coil for Fiber Optic Sensors

Product Overview

Our company specializes in the professional design and manufacturing of optical fiber coils tailored to customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to meet the assembly, performance, and diverse environmental application needs of φ50 fiber optic gyroscopes.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

Multi-pole symmetric winding method for optimal performance
Utilizes 135μm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass-production capability with consistent product quality

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Customization Options

We offer comprehensive customization services for optical fiber coils. Geometric dimensions, length, and performance specifications can be precisely designed and manufactured according to your specific application requirements.
