High Performance Free Standing Loop Fiber Optic Coil 0.3°/h Bias for FOG

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Full Temperature Zero Bias Peak-to-Peak (10s Smoothing):

≤1.5°/h

Temperature Rate Of Change:

1°C/min

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Free Standing Loop Fiber Optic Coil

Fiber Optic Gyro with 0.3°/h Bias

High Performance FOG Coil

Product Description

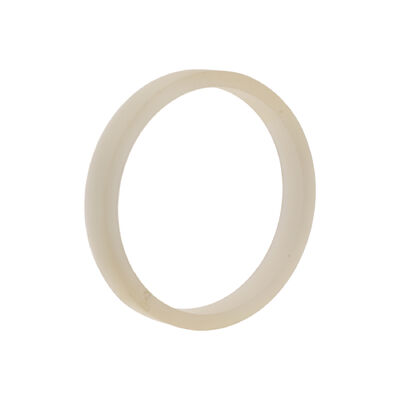

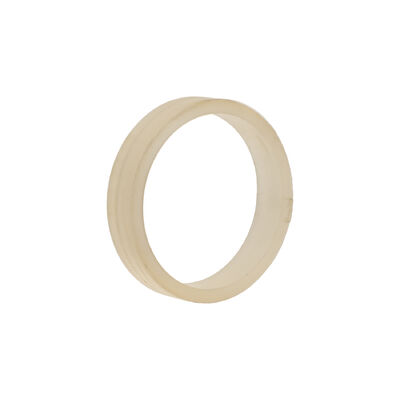

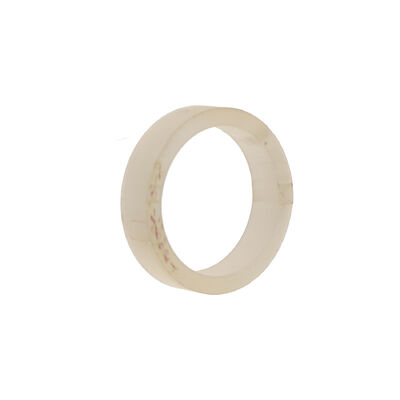

High Performance Free Standing Loop Fiber Optic Coil

Product Overview

This model serves as a baseline design for 50mm FOGs, featuring a standard 36-layer configuration. It balances cost and performance with a 135µm fiber coating. For specialized applications, the geometric dimensions, fiber length, and specific performance indexes can be tailored. The standard version guarantees full-temperature crosstalk suppression of -20dB and high consistency due to mass-production capabilities.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

Multi-pole symmetric winding method for optimal performance
135µm thin diameter optical fibers with UV-cured adhesive
Excellent temperature and vibration performance characteristics
Mass-production capability ensuring high product consistency

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Customization Options

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
