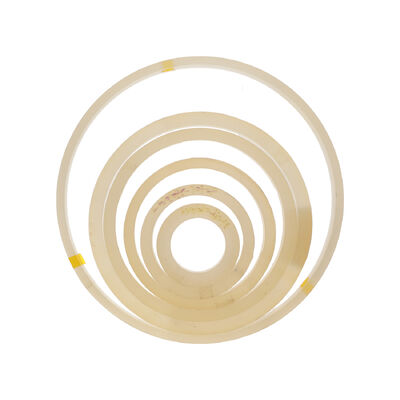

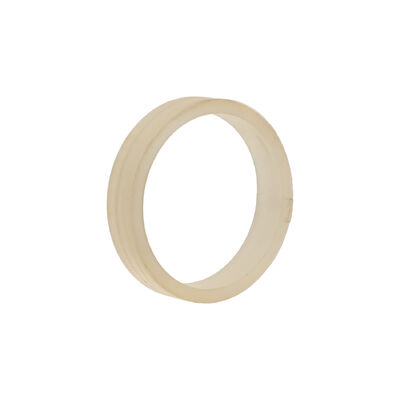

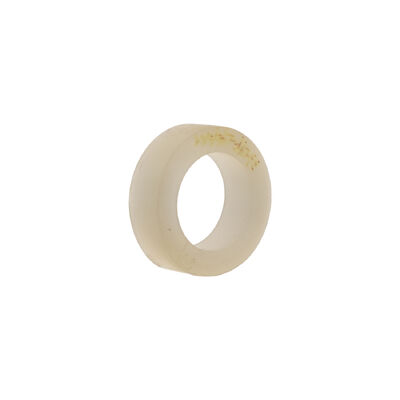

High Extinction Ratio Closed-Loop Fiber Optic Gyroscope Polarization-Maintaining Fibre Coil

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Geometric Dimensions:

29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Temperature Range:

-45–80°C

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Closed-loop fiber optic gyroscope with high extinction ratio

Polarization-maintaining fiber optic gyro coil

Fiber optic gyroscope with PM fiber coil

Product Description

High Extinction Ratio Closed-Loop Fiber Optic Gyroscope Polarization-Maintaining Fibre Coil

Optimized for φ50 FOG assemblies, this coil offers a tightly controlled insertion loss of ≤0.2 dB. The multi-pole winding technique ensures temperature resilience, with zero bias peak-to-peak values remaining below 1.5°/h across the full -45°C to 80°C range. The 260m fiber length is precisely controlled within a ±5m tolerance to meet specific gyroscope sensitivity requirements.

Application Areas

Primarily used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

This polarization-maintaining fiber coil utilizes multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The design delivers exceptional temperature and vibration performance while enabling mass production with consistent quality.

Technical Specifications

Feature	Unit	Specification
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

Geometric dimensions, fiber length, and performance specifications can be customized according to specific application requirements.
