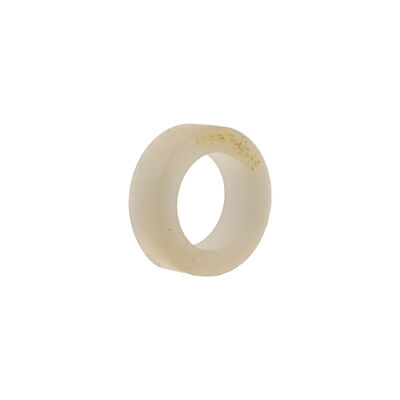

Optical Fiber Coil F50 Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Geometric Dimensions:

29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)

Temperature Range:

-45–80°C

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fiber optic gyro closed-loop coil

50mm optical fiber coil

F50 fiber gyro navigation component

Product Description

Optical Fiber Coil F50 Closed-Loop 50mm

Designed specifically for closed-loop fiber optic gyroscopes with a 50mm diameter, this fiber coil delivers reliable medium-precision performance. Manufactured using 135µm thin-diameter fiber and a robust UV-cured adhesive, the 36-layer coil ensures minimal signal distortion.

It maintains a full-temperature crosstalk of ≤ -20 dB and exceptional bias stability, making it ideal for systems requiring consistent performance in variable environments.

Application Areas

Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.

Product Features

Multi-pole symmetric winding method
135µm thin diameter optical fibers
UV-cured adhesive construction
Excellent temperature and vibration performance
Mass-producible with consistent quality

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
