Single Mode F50 Freestanding Optic Fiber Coil 260m for Fiber Optical Gyroscope

Name: Single Mode F50 Freestanding Optic Fiber Coil 260m for Fiber Optical Gyroscope
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F50 Freestanding optic fiber coil
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	F50 Freestanding optic fiber coil
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Length:

260±5m

Optical Fiber:

80/135μm Optical Fiber

Layers:

Crosstalk:

≤-22dB

Insertion Loss:

≤0.2dB

Constant Temperature Bias Stability (10s Smoothing):

≤0.3°/h

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Single Mode F50 fiber optic coil

260m fiber optic gyroscope coil

Freestanding fiber optic gyro coil

Product Description

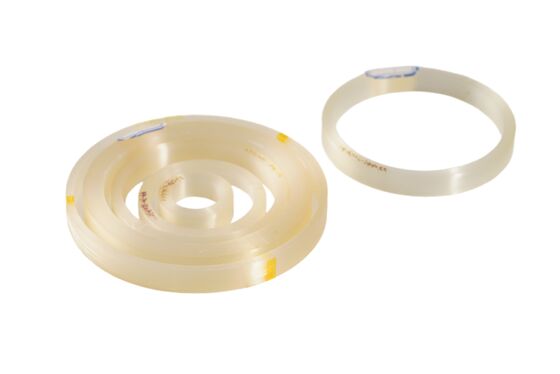

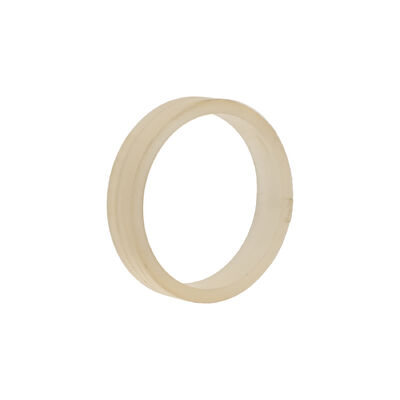

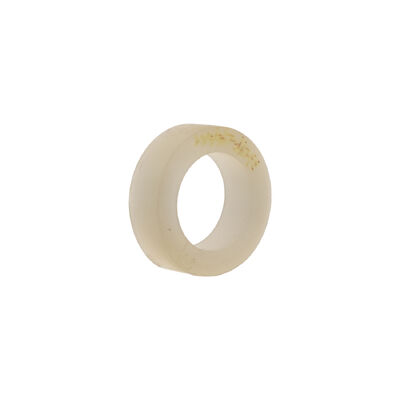

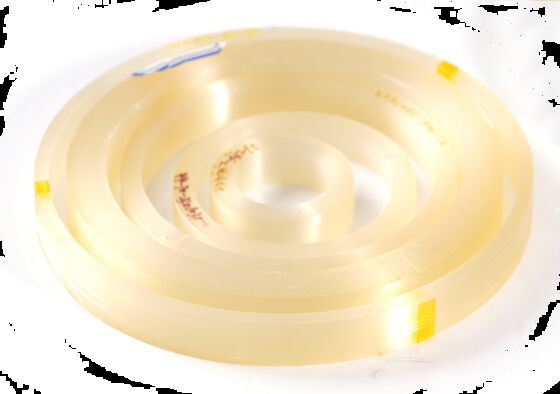

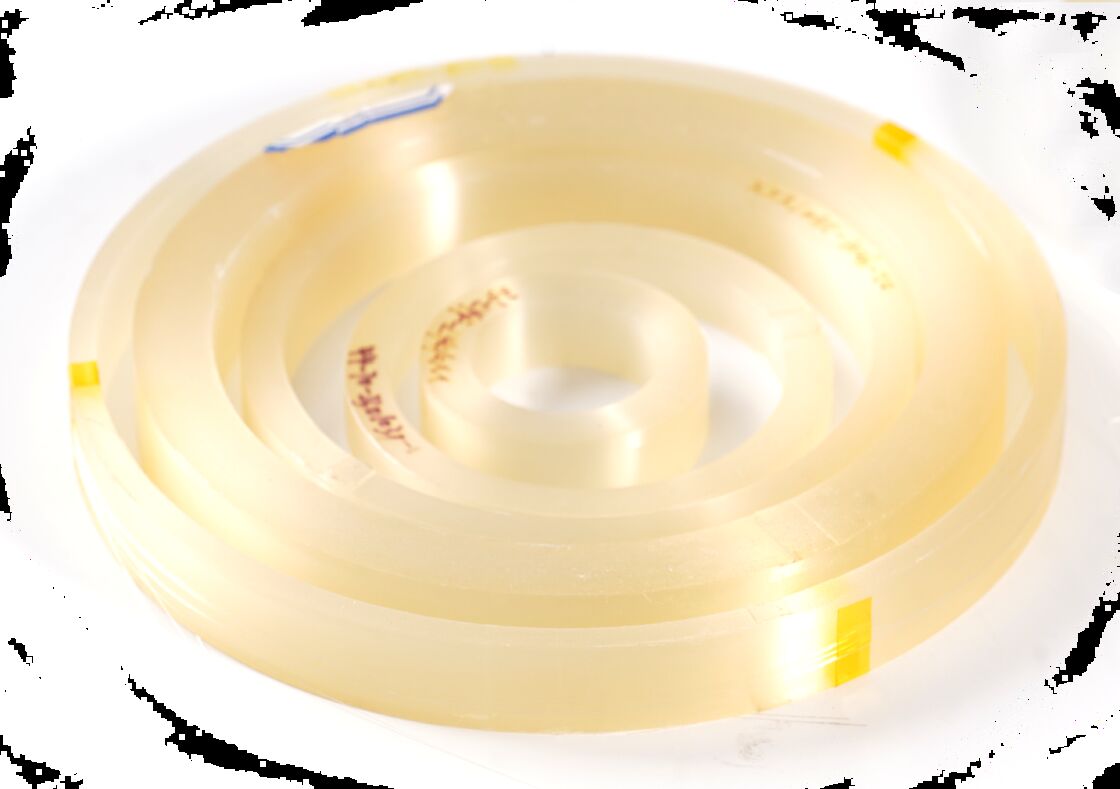

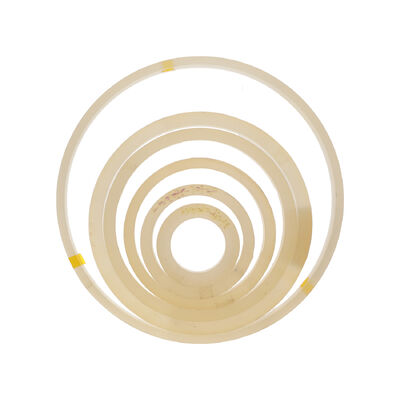

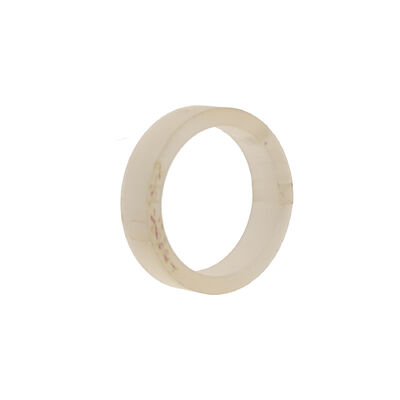

Single Mode F50 Freestanding Optic Fiber Coil 260m for Fiber Optical Gyroscope

Our company specializes in professional design and manufacturing of optic fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy assembly, performance, and diverse environmental application needs for φ50 fiber optic gyroscopes.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations.

Product Features

This optic fiber coil model utilizes advanced multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The resulting ring structure demonstrates exceptional temperature stability and vibration resistance, supporting mass production with consistent product quality.

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optic fiber coils. Geometric dimensions, length specifications, and performance parameters can be tailored to meet your specific application requirements.
