Fizoptika VG191A Fiber Optic Gyroscope Sensor Replacement Gyro Senosor Better Performance

Name: Fizoptika VG191A Fiber Optic Gyroscope Sensor Replacement Gyro Senosor Better Performance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fizoptika VG191A gyro sensor replacement

fiber optic gyroscope with warranty

high-performance gyro sensor replacement

Product Description

Fizoptika VG191A Fiber Optic Gyroscope Sensor

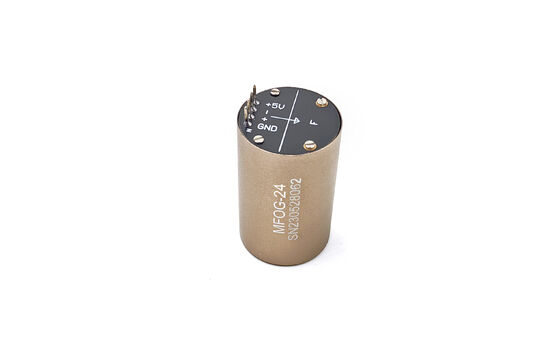

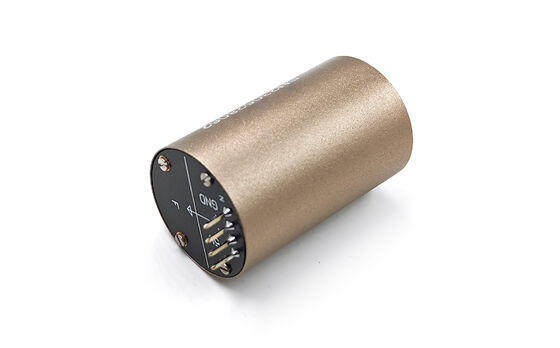

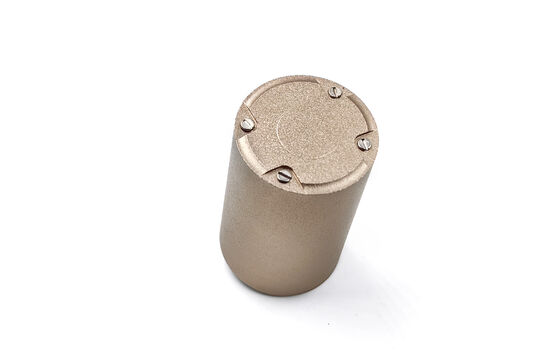

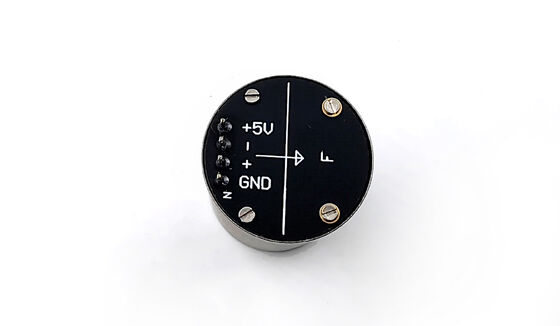

The MFOG-24 Micro Fiber Optic Gyroscope delivers stable angular rate sensing for precision motion control and stabilization systems. This compact cylindrical sensor integrates optical fiber coil technology, signal processing circuitry, and mechanical structure into a robust, high-performance module.

Technical Specifications

Zero bias ≤0.02°/s
Bias stability ≤1.5°/h
Bandwidth ≥300 Hz
Power supply: 5 V ±0.15 V

Engineered for reliability in compact applications, this fiber optic gyroscope sensor is ideal for robotics, electro-optical platforms, and antenna stabilization systems where precision and space efficiency are critical.

Performance Specifications

Serial Number	Project	Performance Indicators
1	MFOG-24	Range (°/s): ±500
1	MFOG-24-AN	Range (°/s): ±300
2	MFOG-24	Scale factor: 3600(LSB/o/s)
2	MFOG-24-AN	Scale factor: 7mv/o/s
3	MFOG-24	Scale factor nonlinearity (ppm): 300
3	MFOG-24-AN	Scale factor nonlinearity (ppm): ≤1000
4	MFOG-24	Zero-bias stability (10s, 1σ, °/h): ≤1.5
4	MFOG-24-AN	Zero-bias stability (10s, 1σ, °/h): ≤2
5	MFOG-24	Zero-bias repeatability (1σ, °/h): ≤1.5
5	MFOG-24-AN	Zero-bias repeatability (1σ, °/h): ≤2
6	MFOG-24	Angular random walk (°/h 1/2): ≤0.03
6	MFOG-24-AN	Angular random walk (°/h 1/2): ≤0.04
7	MFOG-24	Zero bias (°/s): ≤0.02
7	MFOG-24-AN	Zero bias (°/s): ≤0.05
8	MFOG-24	3dB Band Width (Hz): ≥300
8	MFOG-24-AN	3dB Band Width (Hz): ≥450
9	MFOG-24	Power supply (V): 5+0.15
9	MFOG-24-AN	Power supply (V): 5+0.15
10	MFOG-24	Power Consumption (W): ≤1.5
10	MFOG-24-AN	Power Consumption (W): ≤0.7
11	Dimension (mm): φ24X39

Compact Design: Dimensions φ24X39 mm for space-constrained applications
