Fizoptika VG191AD Precision Fiber Optic Gyroscope with 1.5°/h Bias Stability

Name: Fizoptika VG191AD Precision Fiber Optic Gyroscope with 1.5°/h Bias Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fizoptika VG191AD fiber optic gyroscope

precision fiber optic gyro 1.5°/h stability

fiber optic gyroscope with bias stability

Product Description

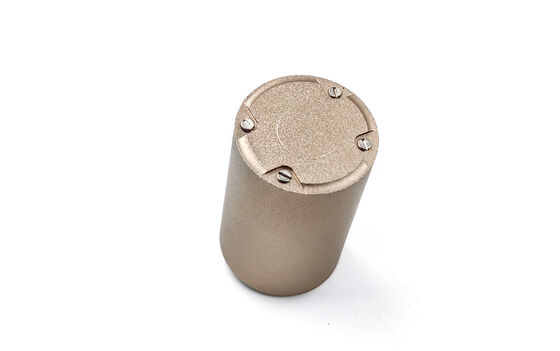

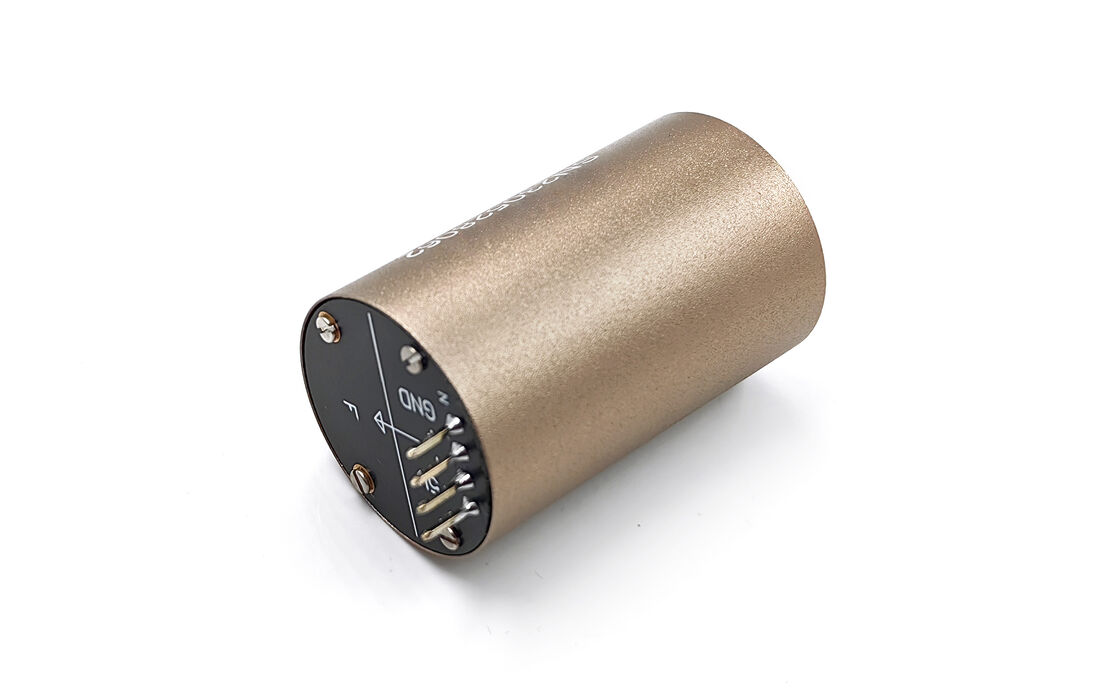

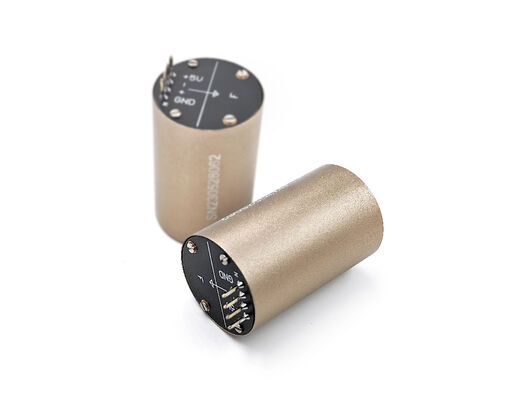

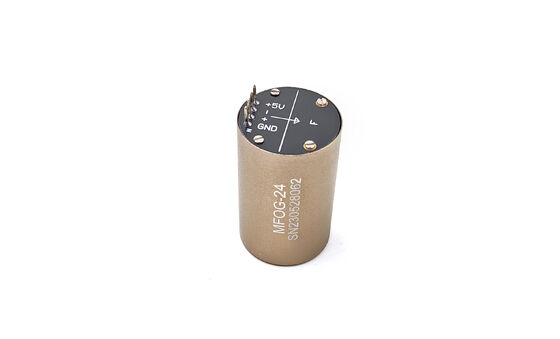

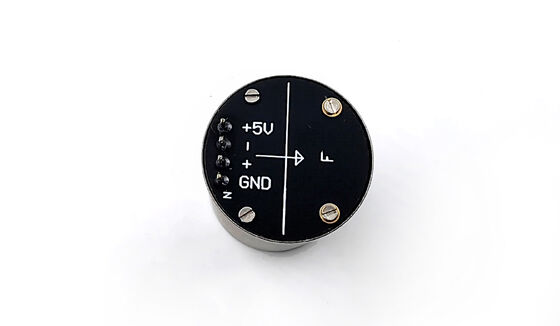

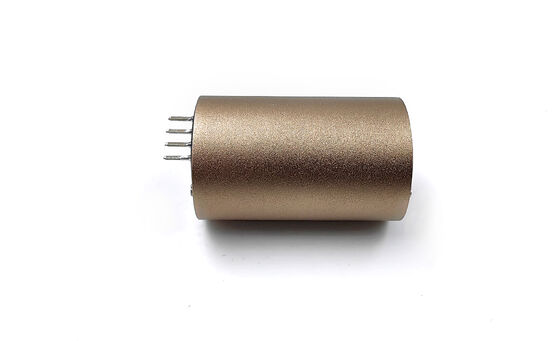

Fizoptika VG191AD Precision Fiber Optic Gyroscope

The MFOG-24 Fiber Optic Gyroscope Sensor is engineered for industrial and defense-grade navigation systems. This high-performance sensor provides stable angular velocity measurements with exceptional bias stability and excellent environmental tolerance.

Key Performance Specifications

Measurement Range: ±500°/s
Angular Random Walk: ≤0.03°/√h
Operating Temperature: −40°C to +65°C
Storage Temperature: −55°C to +85°C

Featuring a robust design and compact structure, this gyroscope is ideally suited for autonomous vehicles, radar stabilization systems, and precision navigation equipment requiring reliable performance in demanding environments.

Detailed Performance Specifications

Parameter	MFOG-24	MFOG-24-AN
Range (°/s)	±500	±300
Scale Factor	3600 (LSB/°/s)	7 mV/°/s
Scale Factor Nonlinearity (ppm)	300	≤1000
Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
Zero Bias (°/s)	≤0.02	≤0.05
3dB Bandwidth (Hz)	≥300	≥450
Power Supply (V)	5±0.15	5±0.15
Power Consumption (W)	≤1.5	≤0.7
Dimensions (mm)	φ24*39	φ24*39
