High-Precision Angular Rate Sensor Digital Output Fiber Optic Gyro for UAV

Name: High-Precision Angular Rate Sensor Digital Output Fiber Optic Gyro for UAV
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

fiber optic gyro angular rate sensor

digital output gyro for UAV

high-precision UAV gyro sensor

Product Description

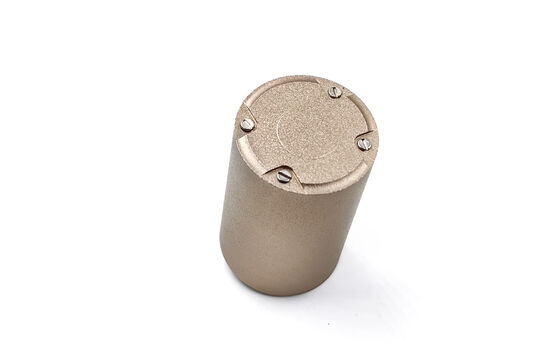

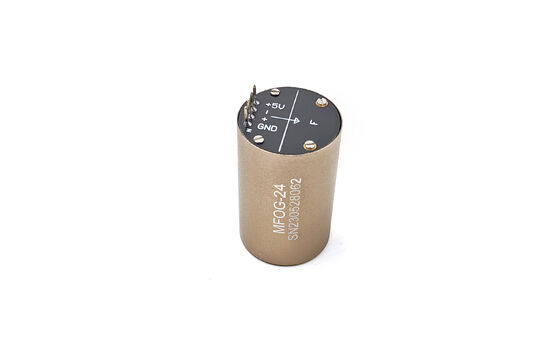

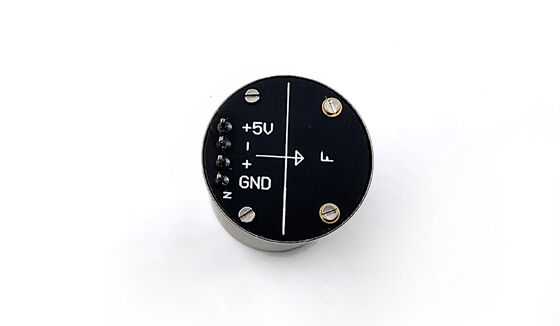

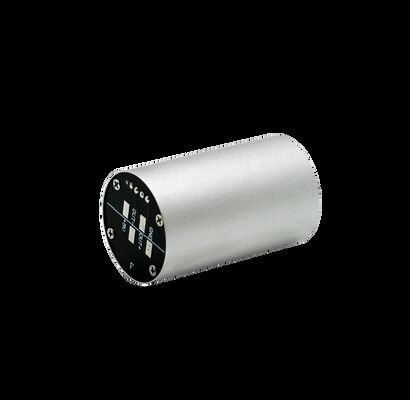

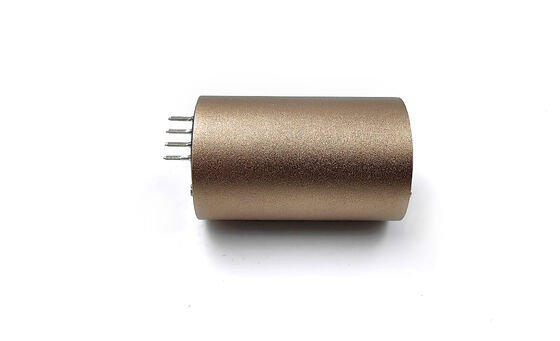

High-Precision Angular Rate Sensor Digital Output Fiber Optic Gyro for UAV

The MFOG-24 micro fiber optic gyroscope is engineered for embedded navigation platforms that demand compact dimensions and exceptional precision.

Compact Design & Specifications

Weighing ≤ 30 g with compact cylindrical dimensions of 24 mm diameter and 39 mm length, this device integrates advanced fiber optic sensing technology with sophisticated digital signal processing.

Typical Applications

Unmanned aerial vehicles
Robotics navigation systems
Marine autopilot systems
Stabilized camera platforms

Technical Performance Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24 * 39
