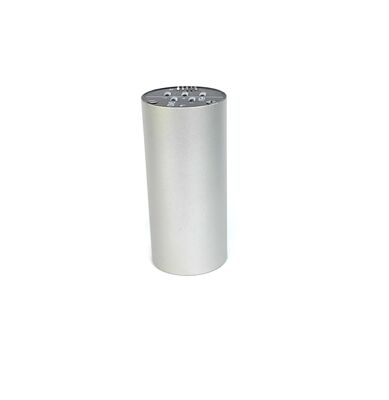

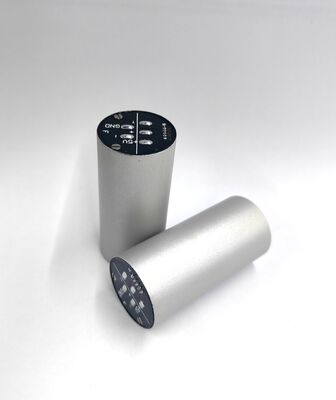

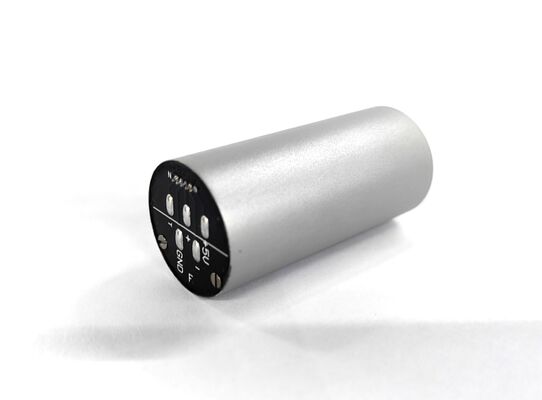

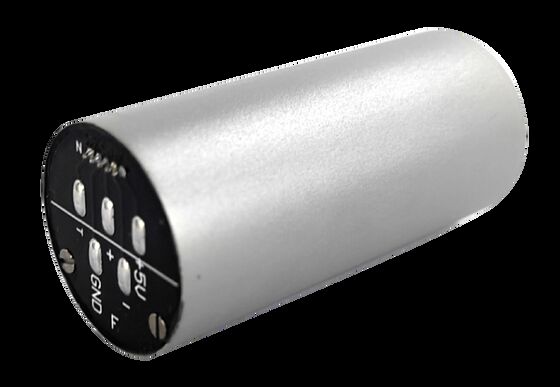

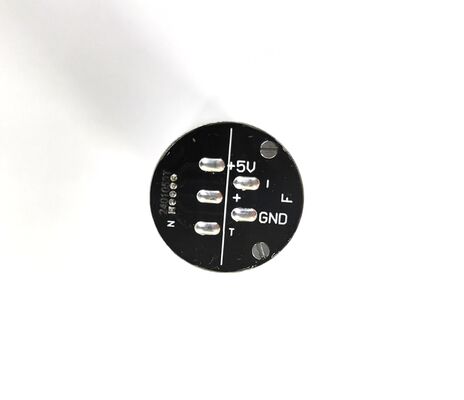

Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation

Name: Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Compact FOG with 24mm sensor

Fiber optic gyro for navigation

VG191AD replacement gyroscope

Product Description

Compact FOG with 24mm Angular Rate Sensor VG191AD Replacement for Precision Navigation

Product Overview

The MFOG-24 gyroscope module delivers high dynamic response with bandwidth ≥300 Hz, making it ideally suited for stabilization and tracking systems.

Utilizes closed-loop fiber optic sensing architecture for enhanced precision and long-term reliability
Features zero bias repeatability ≤1.5°/h for consistent performance in precision motion systems

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/°/s)	7 mV/°/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h^1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24×39	φ24×39
