Low-SWaP Fiber Optic Gyro for UAV/Robotics VG191AD Replacement Model

Name: Low-SWaP Fiber Optic Gyro for UAV/Robotics VG191AD Replacement Model
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Low-SWaP fiber optic gyro UAV

Fiber optic gyro robotics replacement

VG191AD fiber optic gyro

Product Description

Low-SWaP Fiber Optic Gyro for UAV/Robotics - VG191AD Replacement Model

Product Overview

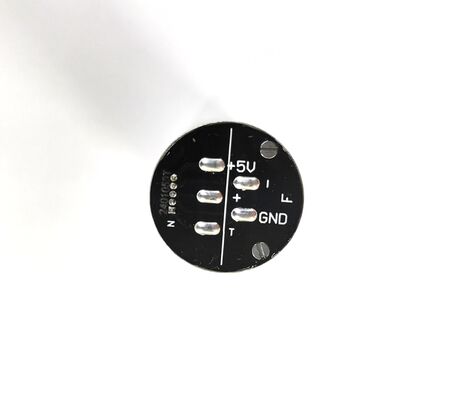

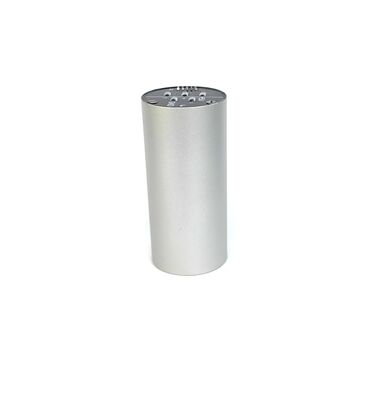

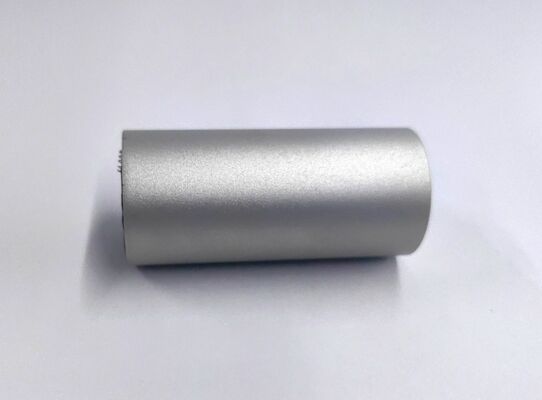

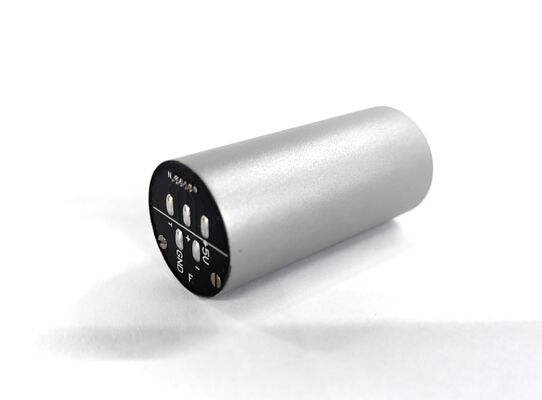

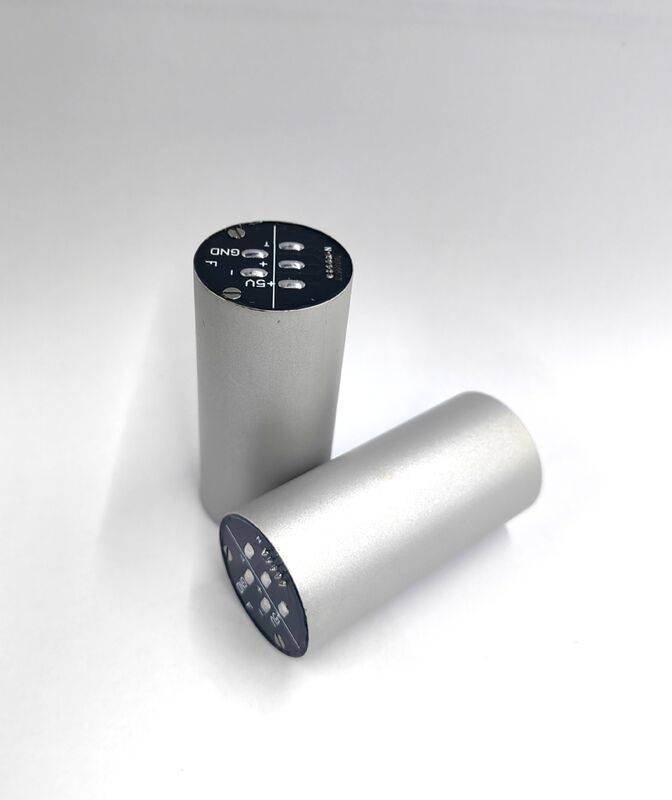

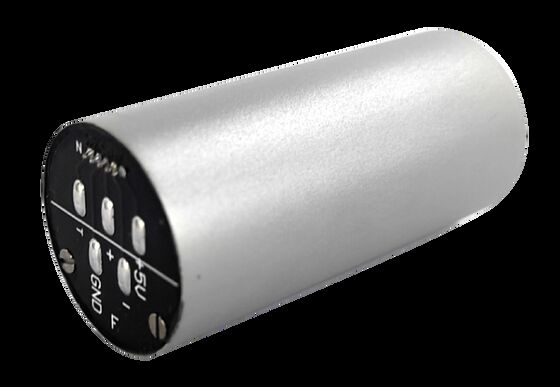

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact, high-performance angular rate sensor based on the Sagnac effect. This advanced system integrates optical, mechanical, and electronic components to detect rotational motion by processing phase differences between counter-propagating light beams.

With no moving parts, rapid startup capability, and exceptional environmental resistance, this gyroscope is ideally suited for modern navigation platforms that demand high reliability in demanding applications.

Compact micro-nano fiber optic design
No moving parts for enhanced reliability
Fast startup and excellent environmental resistance
Ideal for UAV and robotics applications
Direct replacement for VG191AD models

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Bandwidth (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimensions (mm)	φ24*39	φ24*39
