Fizoptika VG191AD Replacement Fiber Optic Gyroscope for UAV & Stabilization

Name: Fizoptika VG191AD Replacement Fiber Optic Gyroscope for UAV & Stabilization
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±500°/sec

Zero Bias Stability:

≤1.5°/h

Bias Repeatability:

≤1.5°/h

Dimensions:

24mm × 39mm

Working Temperature:

-40℃~+65℃

Weight:

≤30g

Power Supply:

5V DC

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Fizoptika VG191AD fiber optic gyroscope

UAV fiber optic gyro replacement

stabilization system fiber optic gyro

Product Description

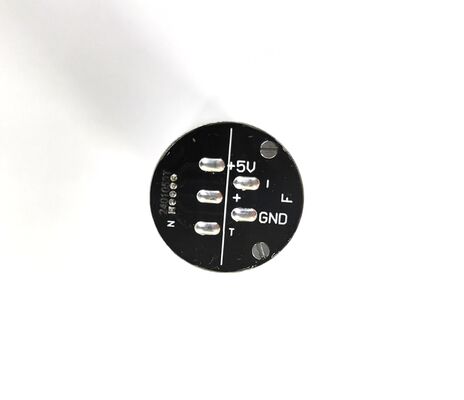

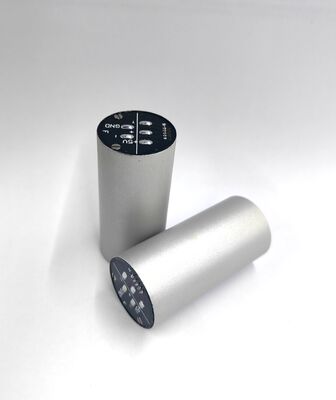

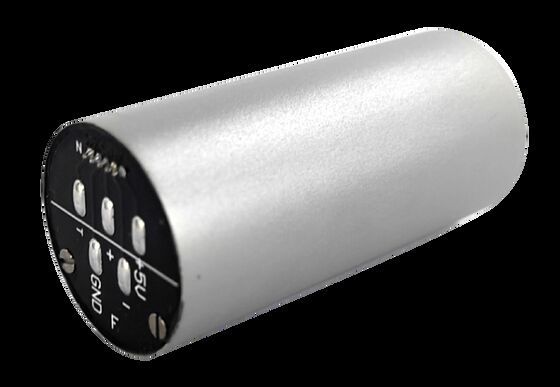

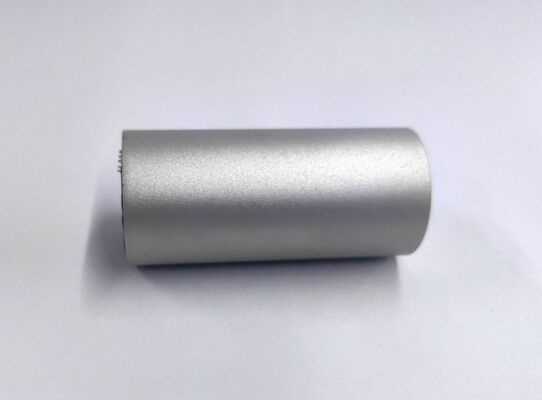

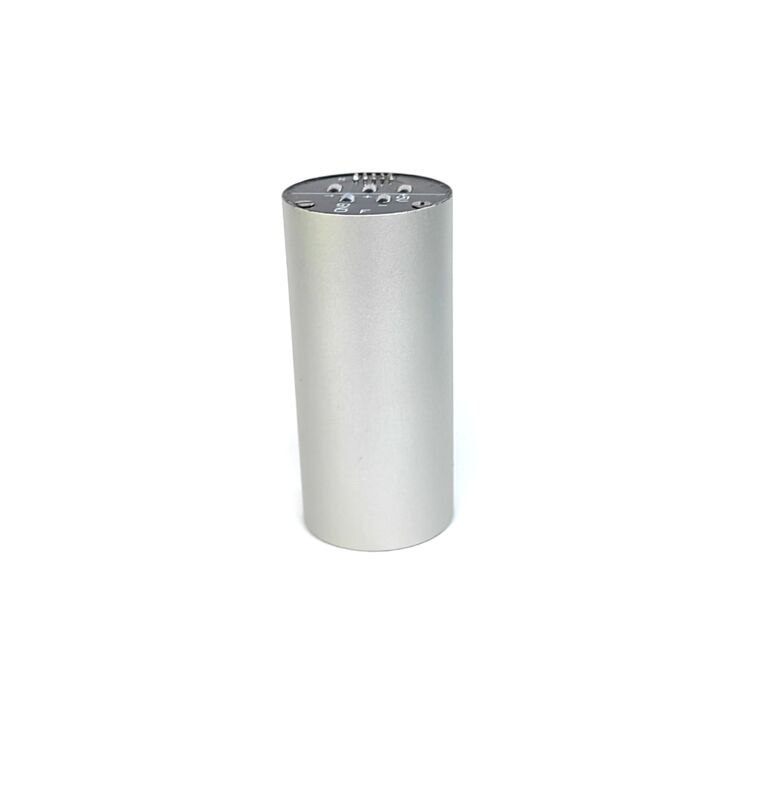

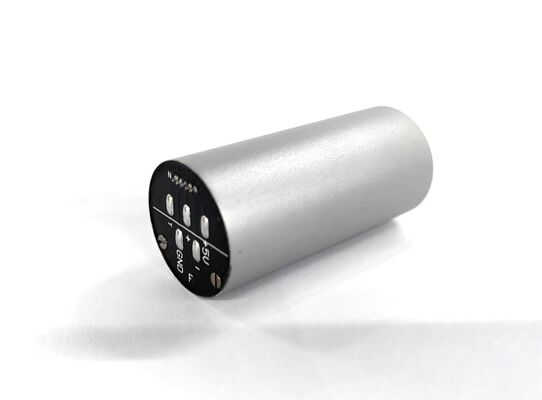

Fizoptika VG191AD Replacement Fiber Optic Gyroscope for UAV & Stabilization

Product Overview

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact high-performance angular rate sensor based on the Sagnac effect. This advanced sensor integrates optical, mechanical, and electronic systems to detect rotational motion by processing phase differences between counter-propagating light beams.

With no moving parts, fast startup capability, and excellent environmental resistance, this gyroscope is ideal for modern navigation platforms requiring high reliability and precision performance.

Key Features

Compact micro-nano design for space-constrained applications
No moving parts for enhanced reliability and longevity
Fast startup capability for immediate operation
Excellent environmental resistance for harsh conditions
High-performance angular rate sensing based on Sagnac effect
Integrated optical, mechanical, and electronic systems

Technical Specifications

Serial No.	Parameter	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale Factor	3600 (LSB/o/s)	7mv/o/s
3	Scale Factor Nonlinearity (ppm)	300	≤1000
4	Zero-Bias Stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-Bias Repeatability (1σ, °/h)	≤1.5	≤2
6	Angular Random Walk (°/h 1/2)	≤0.03	≤0.04
7	Zero Bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power Supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24*39	φ24*39
